TCS5500
Page |
13
Digital Signal
Splitter (SPL5525)
The SPL5525 makes it possible to connect Confidea wireless
delegate units, Confidea
–
L delegate units , Wireless Confidea
access Point, flushmount combi panels and Oled DCSL , to the
TMS bus of the CPU5500. Each SPL5525 has 4 ports to which 20
devices
can
be
co
nnected
in
dais
y
chain.
A
mix
of
the
above
mentioned
devices
on
one
branch
is
allowed.
An
SPL5525
requires
an external 48V connection.
Technical data
Dimensions (H x W x D)
85 x 173 x 43.5
mm
Mounting Dimensions (H x W x D)
See drawing below
Weight
Ca. 950 g
Color
Stainless steel
Housing
Metal
Part Number
71.67.5046

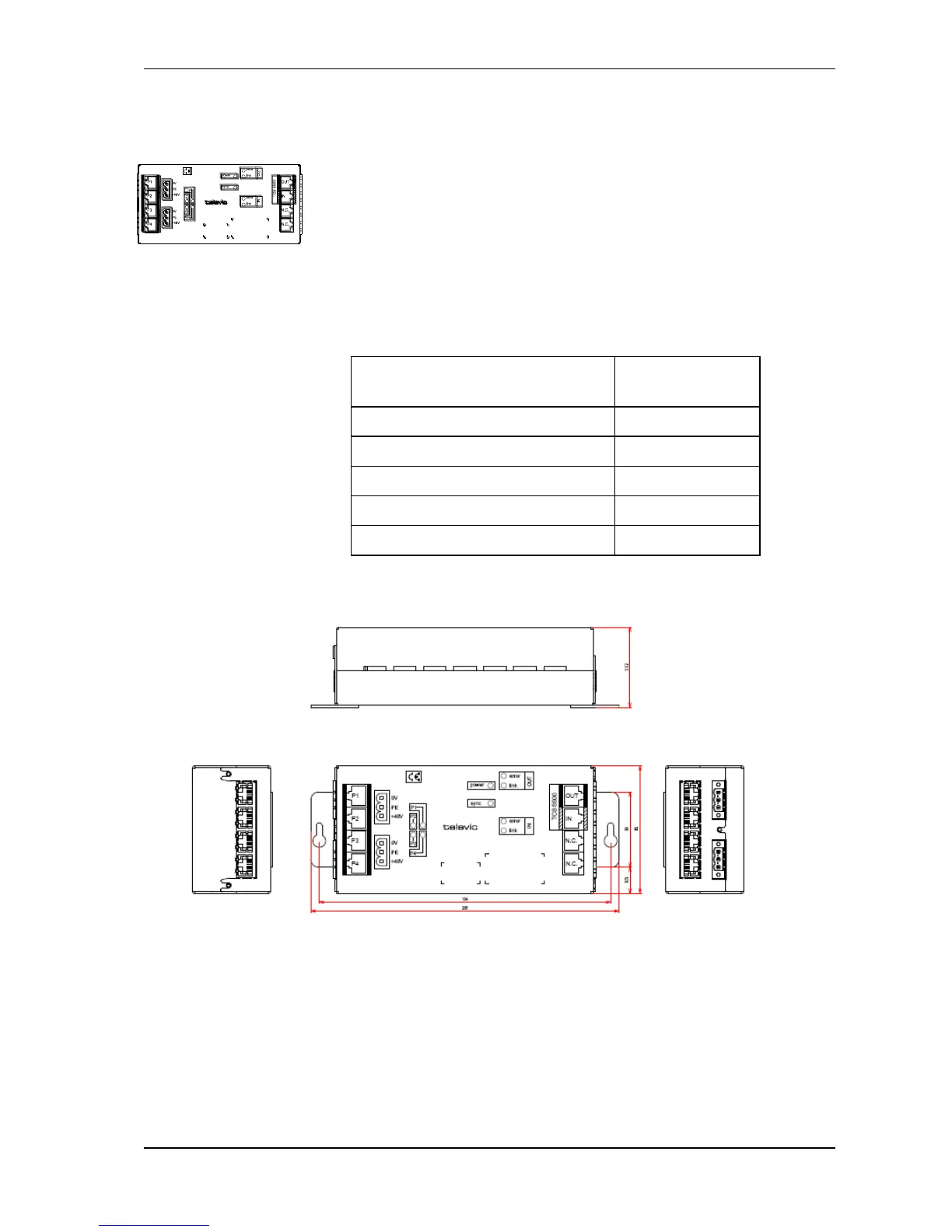

Fig.:SPL5525 dimensions
20
22
Table of Contents
Default Chapter
3
TCS5500 Conference & Interpretation System: Installation Manual
3
Trademarks
3
Table of Contents
5
General Information
9
Safety Information
9
Applicable Standards
10
TCS5500 - the Digital Conference & Interpretation System
11
Overview
11
Components of the TCS5500 Conference & Interpretation System
12
Tms5500
13
Tis5500
13
Central Equipment
13
The System Cables
14
The Software Control Suite (Optional)
14
The Technology Used
15
Power Supply
15
An Example
15
Ps5500
16
Some Important Data
18
TMS Room Equipment
19
Delegate Controller Interface (INT5500)
19
Digital Signal Splitter (SPL5525)
21
Table Top Units
22
Units for Flush Mounting
23
Headphone
30
Microphone
31
Memory Chip Card
31
TIS Interpreter Equipment
32
Interpreter Desk (ID5500)
32
Central Unit
33
Basic Equipment of the Central Unit (CPU5500)
33
Supplementary Boards in the Central Unit
35
The Rack
35
Technical Data
37
Operation
38
Configuring the Conference System
39
Overview
39
Introduction to the CPU5500 Central Unit's Operating Menu
40
The Startup Display
40
The Lock Functionality
40
The Menu Buttons
41
Structure of the CPU5500 Central Unit's Operating Menu
42
Overview
43
The Main Menu
44
The Conference Menu (1 of 2)
45
The Conference Menu (2 of 2)
46
The Interpretation Menu (1 of 4)
47
The Interpretation Menu (2 of 4)
48
The Interpretation Menu (3 of 4)
49
The Interpretation Menu (4 of 4)
50
The AUX-IN/OUT Menu (1 of 2)
51
The AUX-IN/OUT Menu (2 of 2)
52
The System Menu (1 of 2)
53
Working with the Main Menu
56
The Main Screen
56
F1 Function Key
56
F2 Function Key
56
The Conference Menu - Overview
57
Default Values of the Microphone System
57
Initializing the Microphone System
57
Choosing the Conference Mode
58
Max Number of Simultaneously Active Microphones
60
Adjusting the Volume Settings of the Loudspeaker
60
Adjusting the Audio Settings for the Microphone
60
Resetting the Microphone System
62
Accessing the Microphone Options
62
The Conference Menu - Example
64
The Interpreter Menu - Overview
67
Usage
67
Configuration
68
Options
68
Channel Configuration
70
Booth Configuration
70
Auto-Floor
71
Initializing the Interpreter System
73
Rebooting the Interpreter System (TIS)
73
Advanced Options
73
The Interpreter Menu - Example
76
Auxiliary Menu - Overview
77
Usage
77
The Outputs
77
The Inputs
78
Distance Conferencing (N-1)
78
External Equalizer
78
Preset Configuration
78
System Menu - Overview
79
Usage
79
Peripherals
79
Miscellaneous
80
IP Address
80
IP Netmask
81
Time
81
Date
81
CPU5500 Defaults
81
Init Mode
81
Version
81
Test
81
Reboot
81
The Language Menu - Overview
82
Usage
82
Change of Subparts
83
Interface Units
83
Interpreter Desk
83
Fault Detection
84
Survey
84
Troubleshooting
87
If Problems Occur
87
Maintenance and Care
87
Appendix A: INT5500 Connections
89
Basic Configuration
89
Special Configurations
91
Appendix B: Camera Control Protocol
95
Overview
95
Commands
95
Examples
96
Appendix C: Operator Desk Protocol
99
Overview
99
Commands
100
Examples
101
Appendix D: Messenger Control Panel
103
Overview
103
Appendix E: Cables and Connectors
105
Overview
105
DML/CML5500 Connection Cable (Shielded)
105
DCS5500 Connection Cable (Shielded)
106
Connection Cable (Shielded) for
106
ID5500 / INT5500/SPL5525/SPL5501/ Combi Panels
106
CLK Cable EU5500
107
RSU - RMU Cable (Roomcoupling)
108
14-P Flat Cable
109
Power Cable (48V)
110
Ethernet Connection Cable
110
Serial Connection Cable
111
Connectors
112
Cable Check
118
Appendix F
122
EU5500 - SPL Connections
122
Extension Unit (8 Branches)
123
Extension Unit (4 Loops)
124
Redundancy Options for EU5500 , SPL5525 and Confidea-L Units
125
