TCS5500
Page | 9
Connectivity
The 230 V mains is connected to the PS5500 by means of a
male connector at the back of the power supply. A
switched mains outlet is available at the rear of the frame.
six female Phoenix connectors are provided at the rear of
the PS5500 1U to branch off the 48 V
four female Phoenix connectors are provided at the rear of
the PS5500 4U to branch off the 48 V.

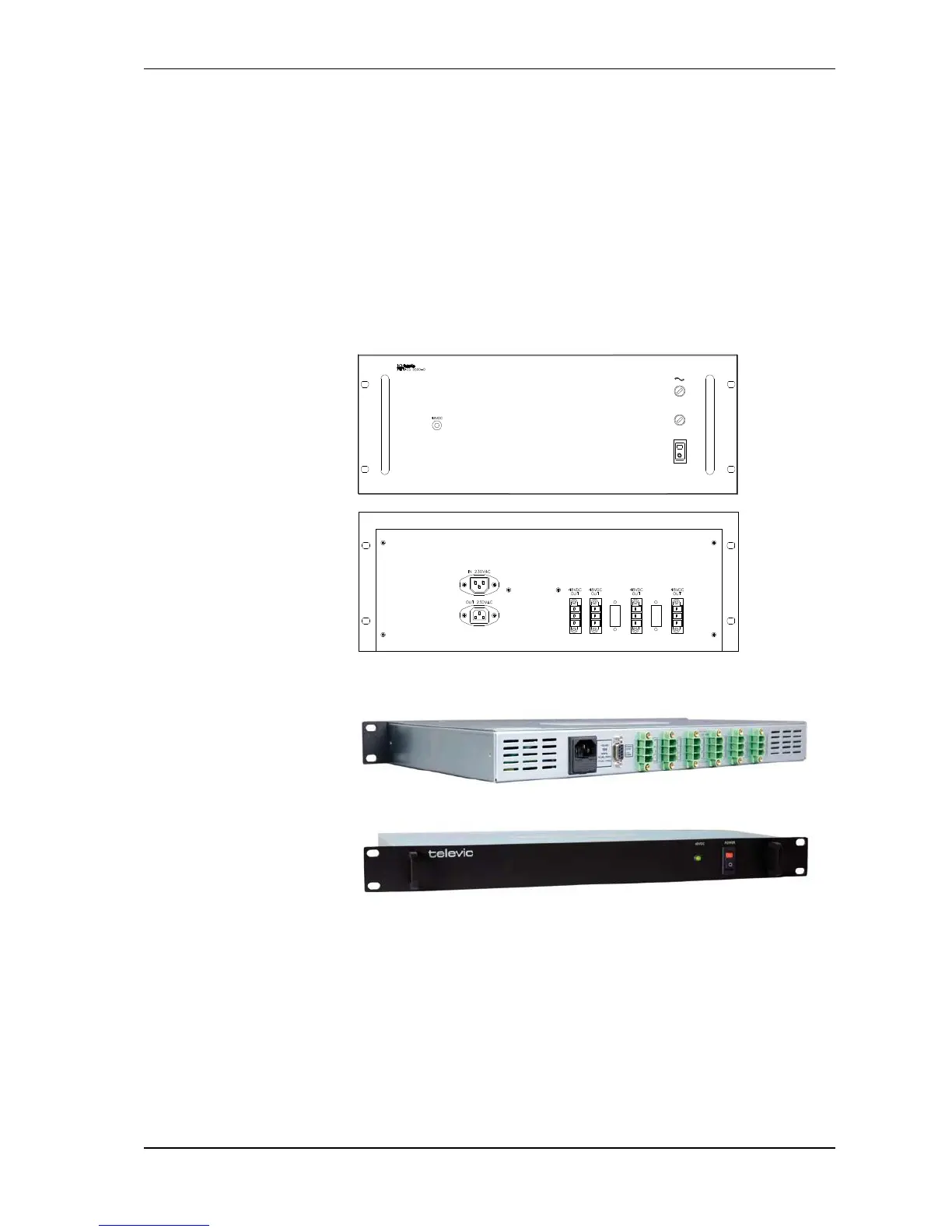

The picture bellow shows the front and rear view of the PS5500 4U
(obsolete) and the new 1U version.
Fig.: PS5500/4U
Fig.: PS5500/1U
