Tenda O6 User Manual

Web UI Functions
-27-

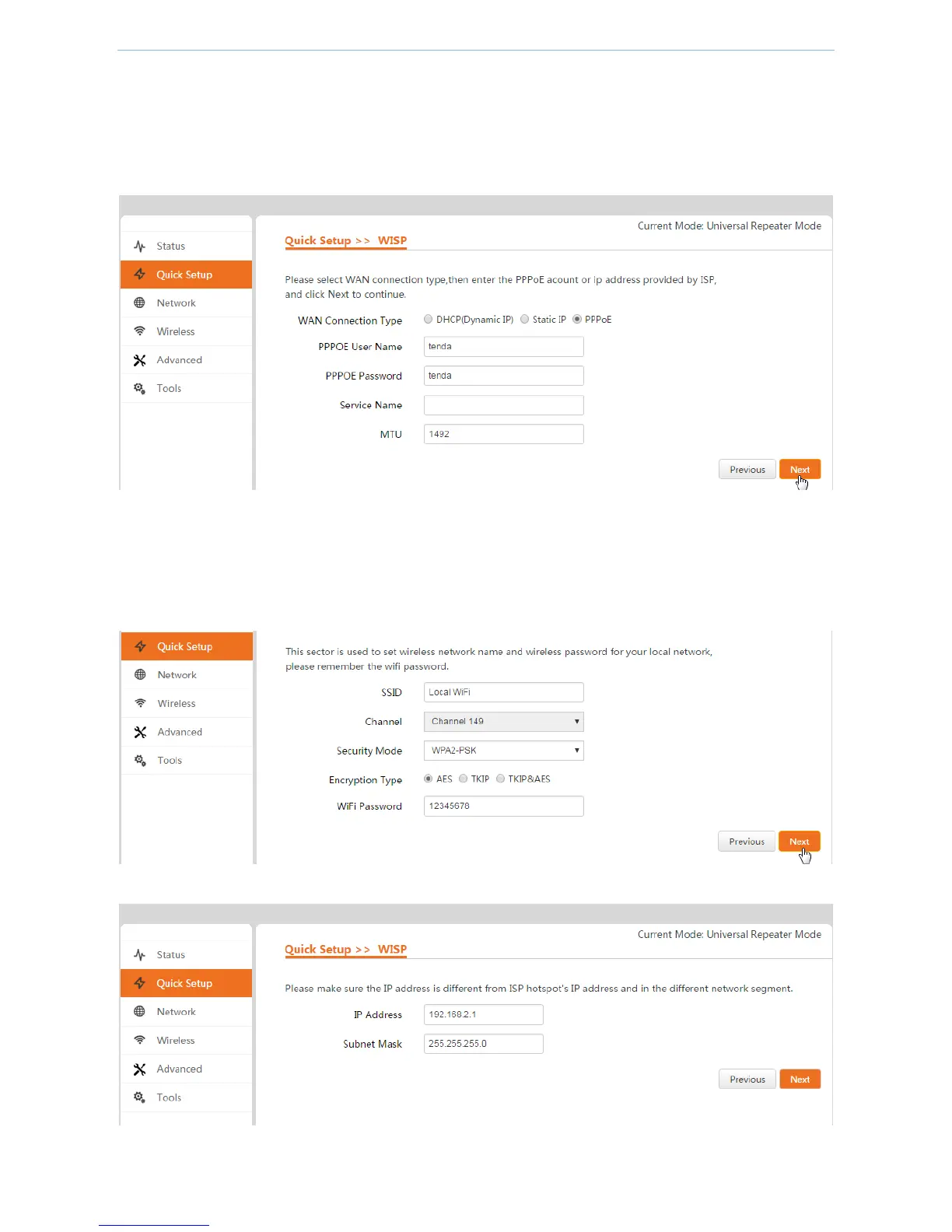

 PPPoE User Name: Enter username provided by ISP, here we enter tenda.
 PPPoE Password: Enter Password provided by ISP, here we enter tenda.
 Service Name: Set up the service name, optional.
 MTU: Set up the MTU value of this service. We recommend that you keep it default if you are not familiar.
 Click Next.
6. Set up the wireless parameters of this device.
 SSID: Modify a SSID name, such as Local WiFi.
 Security Mode, Encryption Type: We recommend that you select WPA2-PSK, AES.
 WiFi Password: Set up wireless password, such as 12345678.
 Click Next.
7. Click Next.
8. Click Save. After the device reboots, the configurations take effect.

Tenda O6 Specifications

General

Internal	No
Placement	Wall
Reset button	Yes
Certification	FCC/CE/RoHS
Product color	White
LED indicators	Status
International Protection (IP) code	IP67
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Channel bandwidth	35 MHz
Transmitting power	1 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	433 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Input current	0.5 A
AC input voltage	24 V
Power consumption (max)	9 W
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	16 dBi
USB 2.0 ports quantity	0
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	67.5 mm
Width	94.9 mm
Height	270 mm
