Tenda O6 User Manual

Web UI Functions
-72-

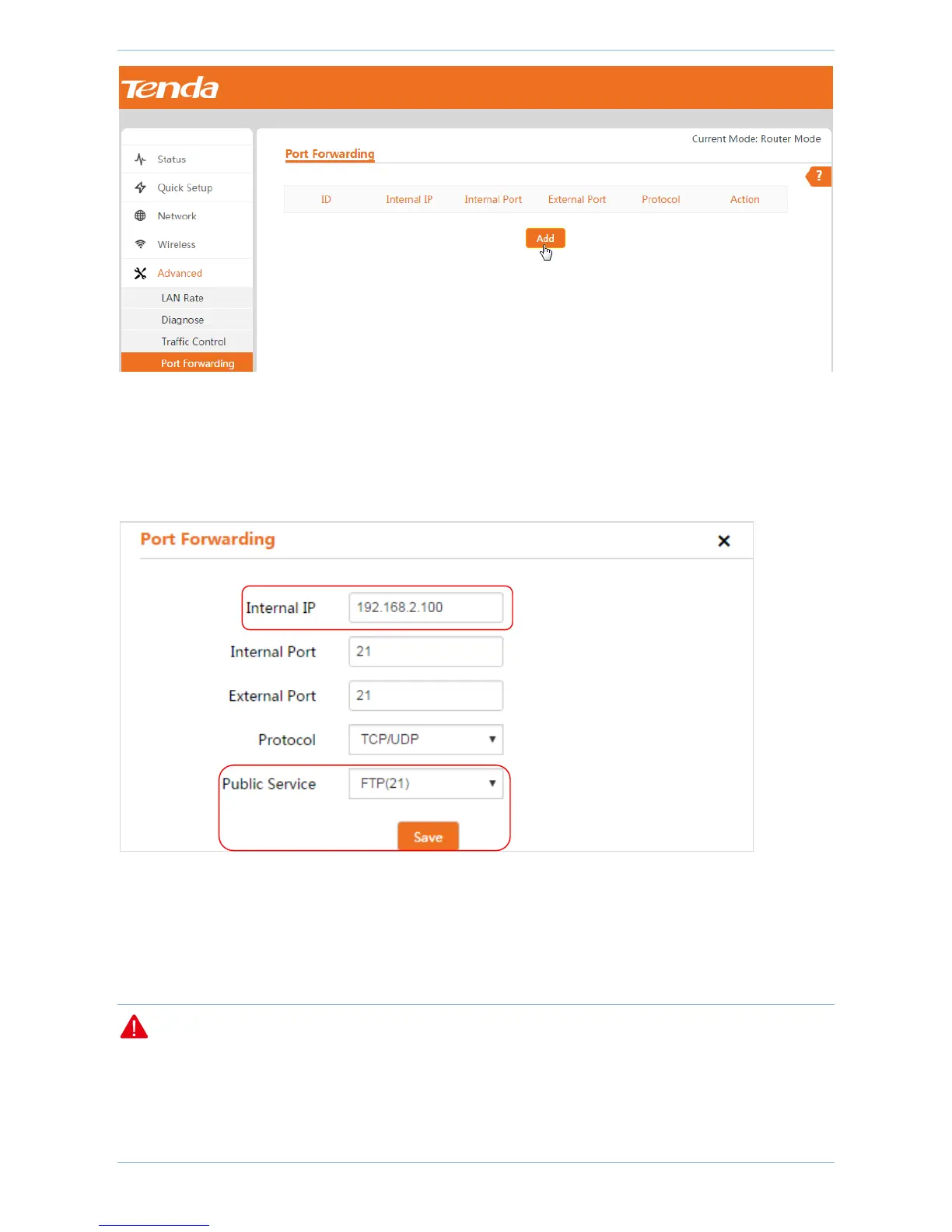

4. In the pop-up window, set up the parameters.
1) Internal IP: Enter an intranet server IP address, here we enter 192.168.2.100.
2) Public Service: Click the dropdown list and select a service enabled in the intranet, here we select FTP.
5. Click Save to finish settings.
Verify the configuration
When extranet users access intranet resources, they need to access ftp://202.105.106.55 on a computer that has
obtained a public network IP address.
Note
 External Port of the port forwarding rule shall not be the same as Port number of remote web access, otherwise
a conflict will occur so that port forwarding cannot be used.
 After the rule is set, Internet users can access a corresponding server erected in the LAN in the form of
"Protocol name://Current WAN IP address: External port".

Tenda O6 Specifications

General

Internal	No
Placement	Wall
Reset button	Yes
Certification	FCC/CE/RoHS
Product color	White
LED indicators	Status
International Protection (IP) code	IP67
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Channel bandwidth	35 MHz
Transmitting power	1 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	433 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Input current	0.5 A
AC input voltage	24 V
Power consumption (max)	9 W
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	16 dBi
USB 2.0 ports quantity	0
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	67.5 mm
Width	94.9 mm
Height	270 mm
