24-Port Managed Gigabit Switch
This is the highest priority queue of the 4 QoS queues.
Receive/Transmit
The number of received and transmitted packets per port.

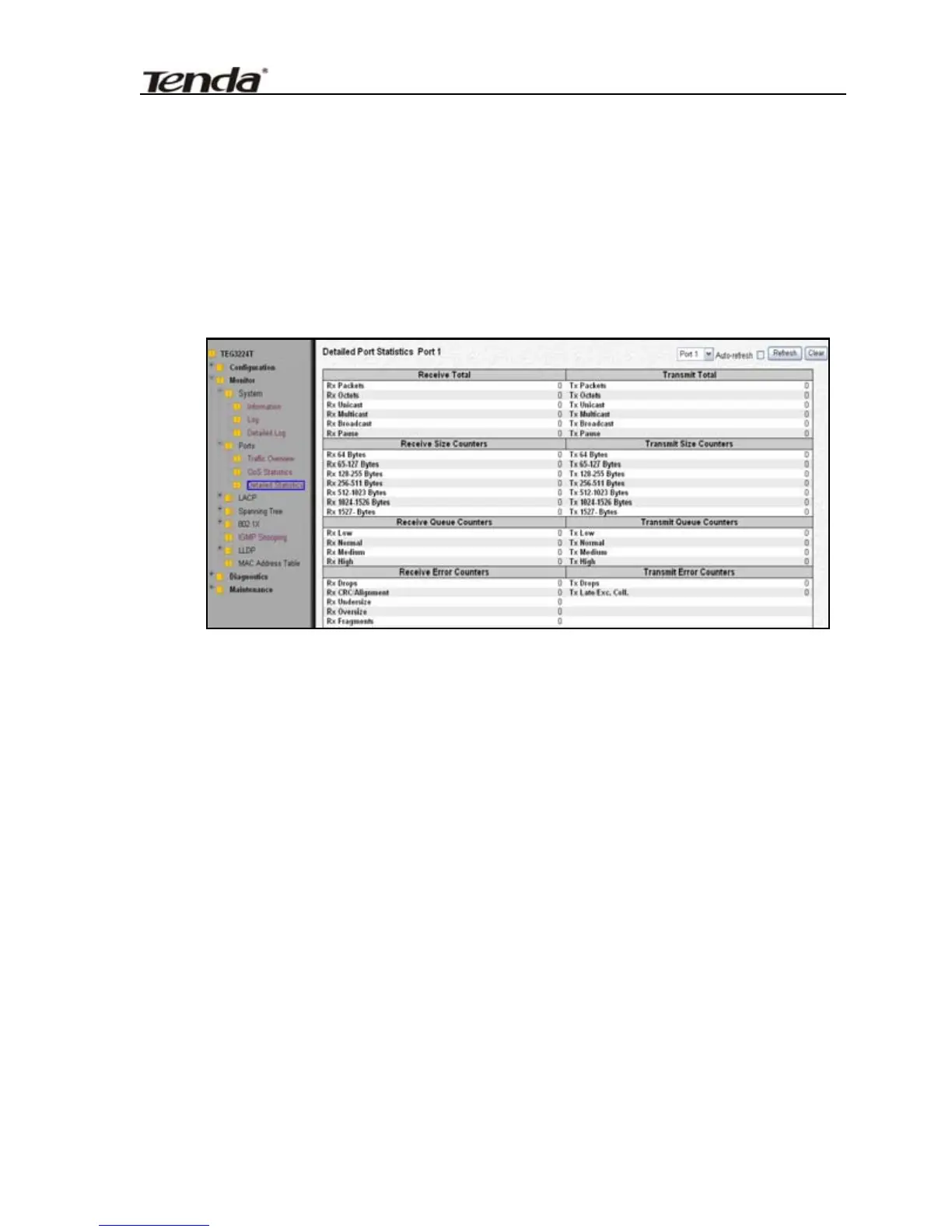

4.2.3 Port Statistics
Please select the left meun as TEG3224T→Monitor→Port→
Detailed Statistics to enter the following window:
This page provides detailed traffic statistics for a specific switch port.
Use the port select box to select which switch port details to display.
The displayed counters are the totals for receive and transmit, the
size counters for receive and transmit, and the error counters for
receive and transmit.
Receive Total and Transmit Total
RX and Tx Packets
The number of received and transmitted (good and bad)
packets.
Rx and Tx Octets
The number of received and transmitted (good and bad) bytes.
Includes FCS, but excludes framing bits.
Rx and Tx Unicast
115
