4.4 Spanning Tree
4.4.1 Bridge Status
Please select the left meun as TEG3224T→Monitor→Spanning

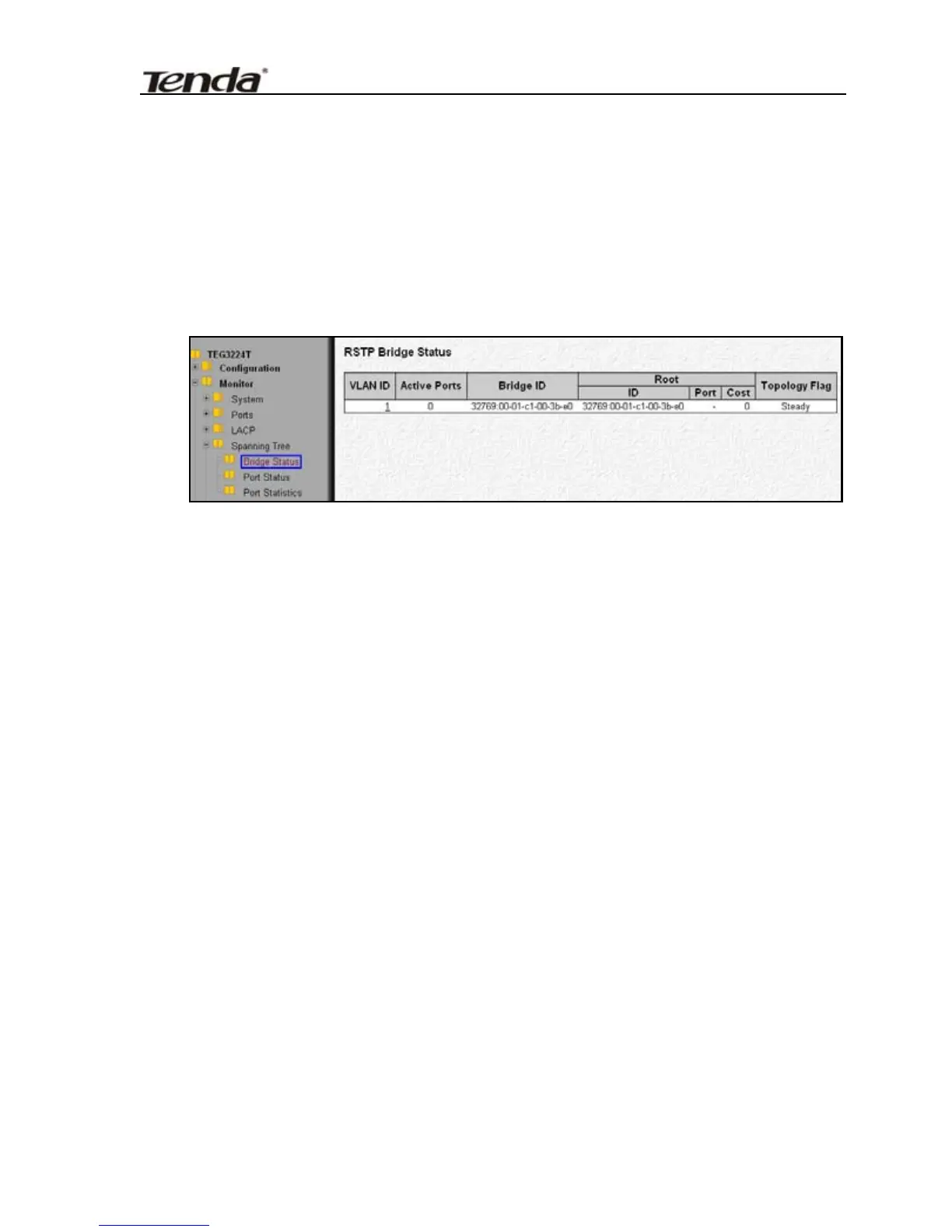

Tree →Bridge Status to enter the following window:
The page provides a status overview for all RSTP bridge instances.
The displayed table contains a row for each RSTP bridge instance,
where the column displays the following information:
VLAN ID
The VLAN ID associated with this Bridge instance. This is also
a link to the RSTP Detailed Bridge Status.
Active Ports
The number switch ports active in the RSTP bridge instance
(aggregated ports count only as one).
Bridge ID
The Bridge ID of this Bridge instance.
Root ID
The Bridge ID of the currently elected root bridge.
Root Port
The switch port currently assigned the root port role.
