24-Port Managed Gigabit Switch
5.2 VeriPHY

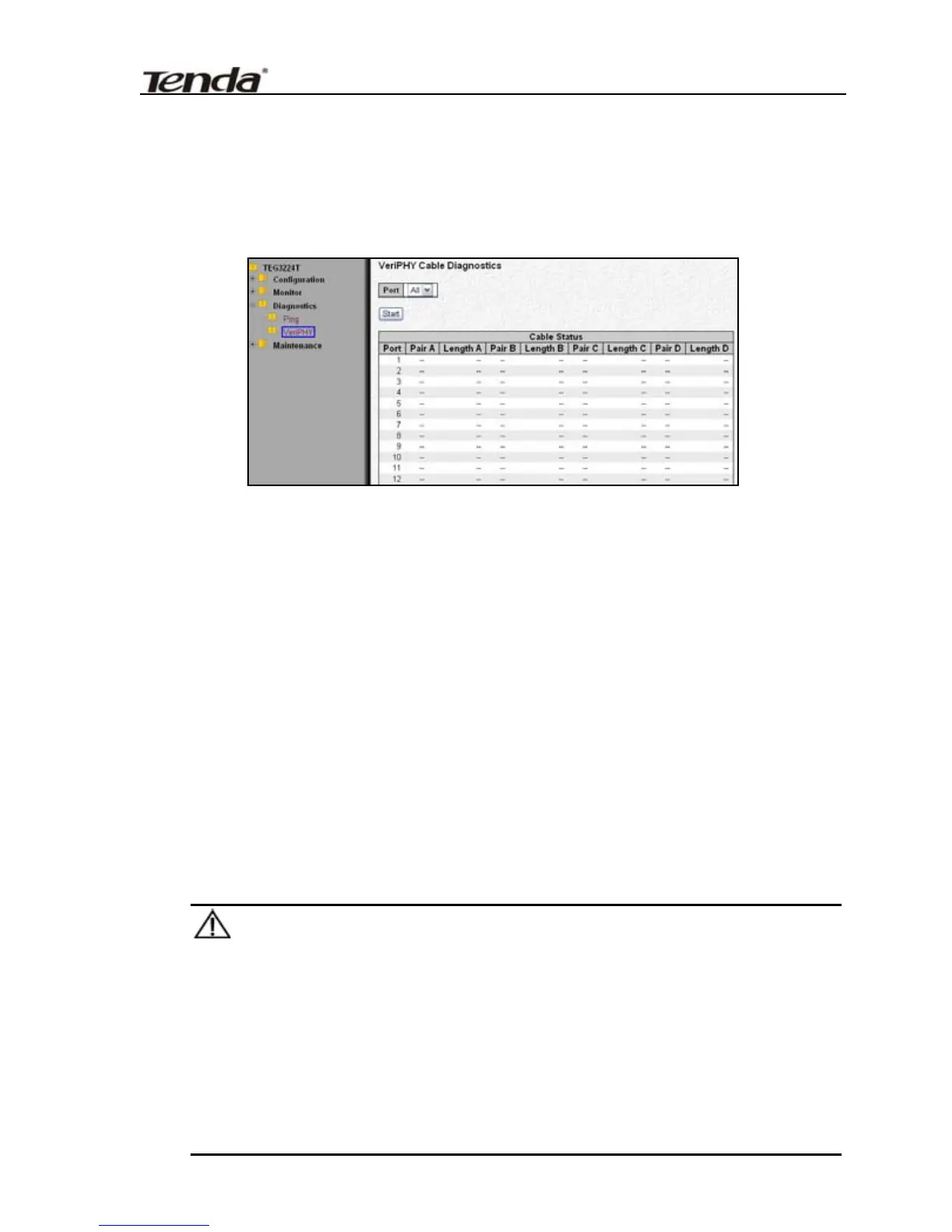

Please select the left meun as TEG3224T→Diagnostics→
VeriPHY to enter the following window:
The page is used for running the VeriPHY Cable Diagnostics. Press
to run the diagnostics. This will take approximately 5 seconds. If all
ports are selected, this can take approximately 15 seconds. When
completed, the page refreshes automatically, and you can view the
cable diagnostics results in the cable status table.
Port
The port where you are requesting VeriPHY Cable Diagnostics.
Cable Status
Port: Port number.
Pair: The status of the cable pair.
Length: The length (in meters) of the cable pair.
Note:
1. VeriPHY is o
nly accurate for cables of length 7 - 140 meters.
10 and 100 Mbps ports will be linked down while running
VeriPHY. Therefore, running VeriPHY on a 10 or 100 Mbps
management port will cause the switch to stop responding until
VeriPHY is complete.
2. The Gigabit SFP combo ports do not support diagnosis.
137
