24-Port Managed Gigabit Switch
4.7 LLDP
4.7.1 LLDP Neighbours

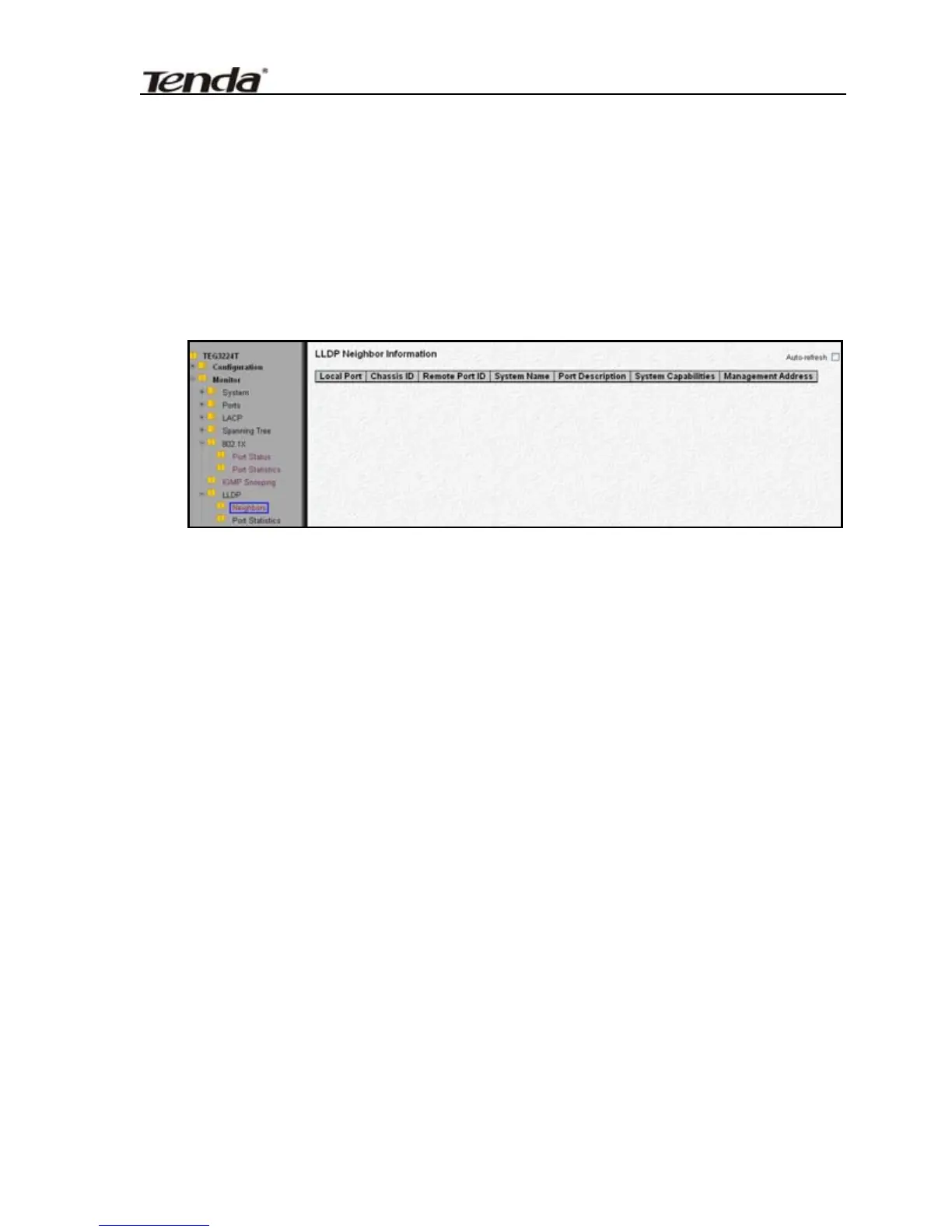

Please select the left meun as TEG3224T→Monitor→LLDP→
Nerghbors to enter the following window:
The page provides a status overview for all LLDP neighbors. The
displayed table contains a row for each port on which an LLDP
neighbor is detected. The columns hold the following information
:
Local Port
The port on which the LLDP frame was received.
Chassis ID
The Chassis ID is the identification of the neighbor's LLDP
frames.
Remote Port ID
The Remote Port ID is the identification of the neighbor port.
System Name
System Name is the name advertised by the neighbor unit.
Port Description
Port Description is the port description advertised by the
neighbor unit.
System Capabilities
System Capabilities describes the neighbor unit's capabilities.
131
