24-Port Managed Gigabit Switch
Role
The current RSTP port role. The port role can be one of the
following values: Disabled Alternate Backup Root Designated
Non-STP.
S
tate
The current RSTP port state. The port state can be one of the
following values: Disabled Blocking Learning Forwarding
Non-STP.
Bridge
The RSTP Bridge instance (VLAN ID). This is also a link to the
RSTP Detailed Bridge Status, if the port is RSTP enabled.

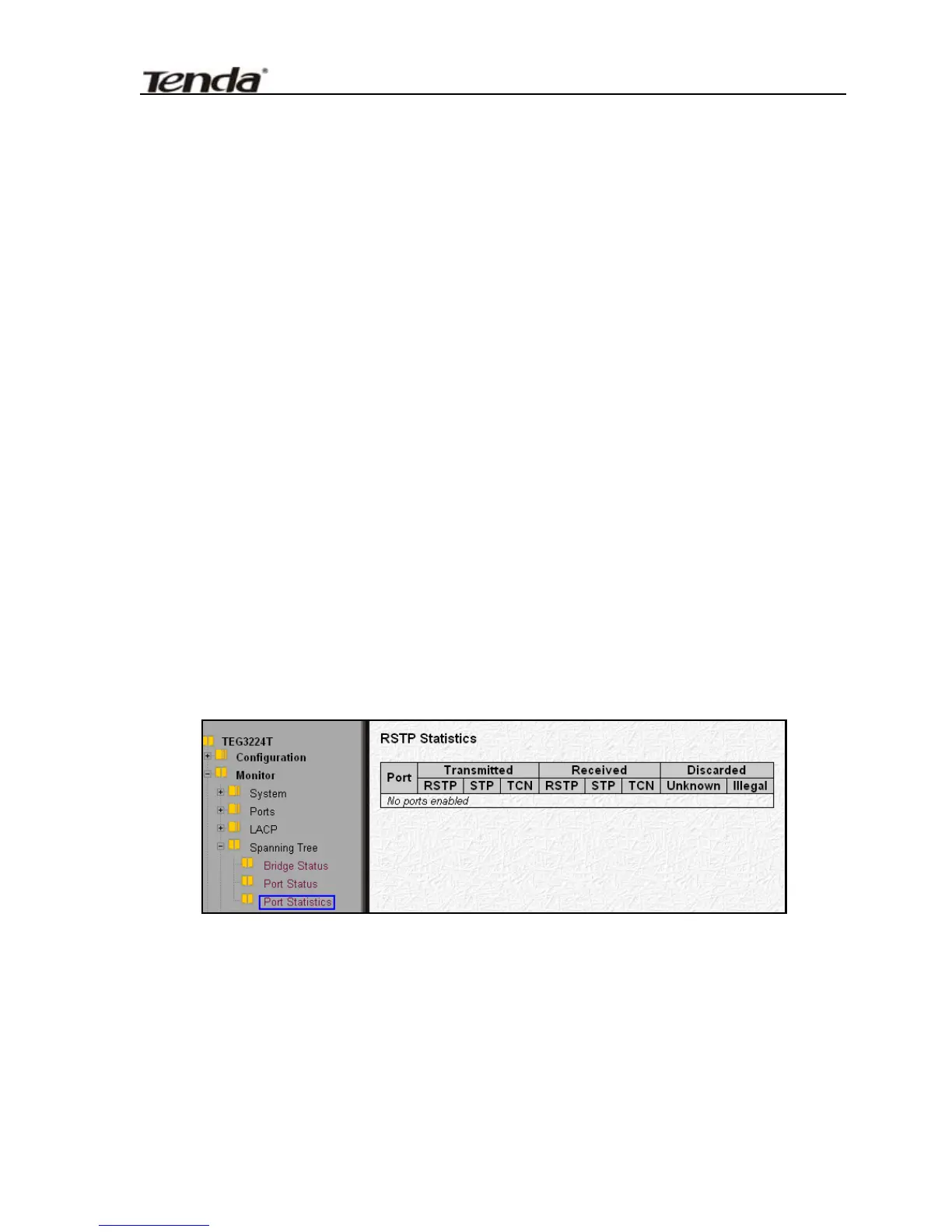

4.4.3 RSTP Statistics
Please select the left meun as TEG3224T→Monitor→Spanning
Tree→ Port Statistics to enter the following window:
The page displays the RSTP port statistics counters for port
physical ports in the currently selected switch. The RSTP port
statistics counters are:
Port
The switch port number of the logical RSTP port.
123
