24-Port Managed Gigabit Switch
Chapter 2 Connecting the Switch
2.1 Switch to End Node
Use standard Cat.5/5e Ethernet cable (UTP/STP) to connect the
Switch to end nodes as described below. Switch ports will
automatically adjust to the characteristics (MDI/MDI-X, speed,
duplex) of the device to which is connected.

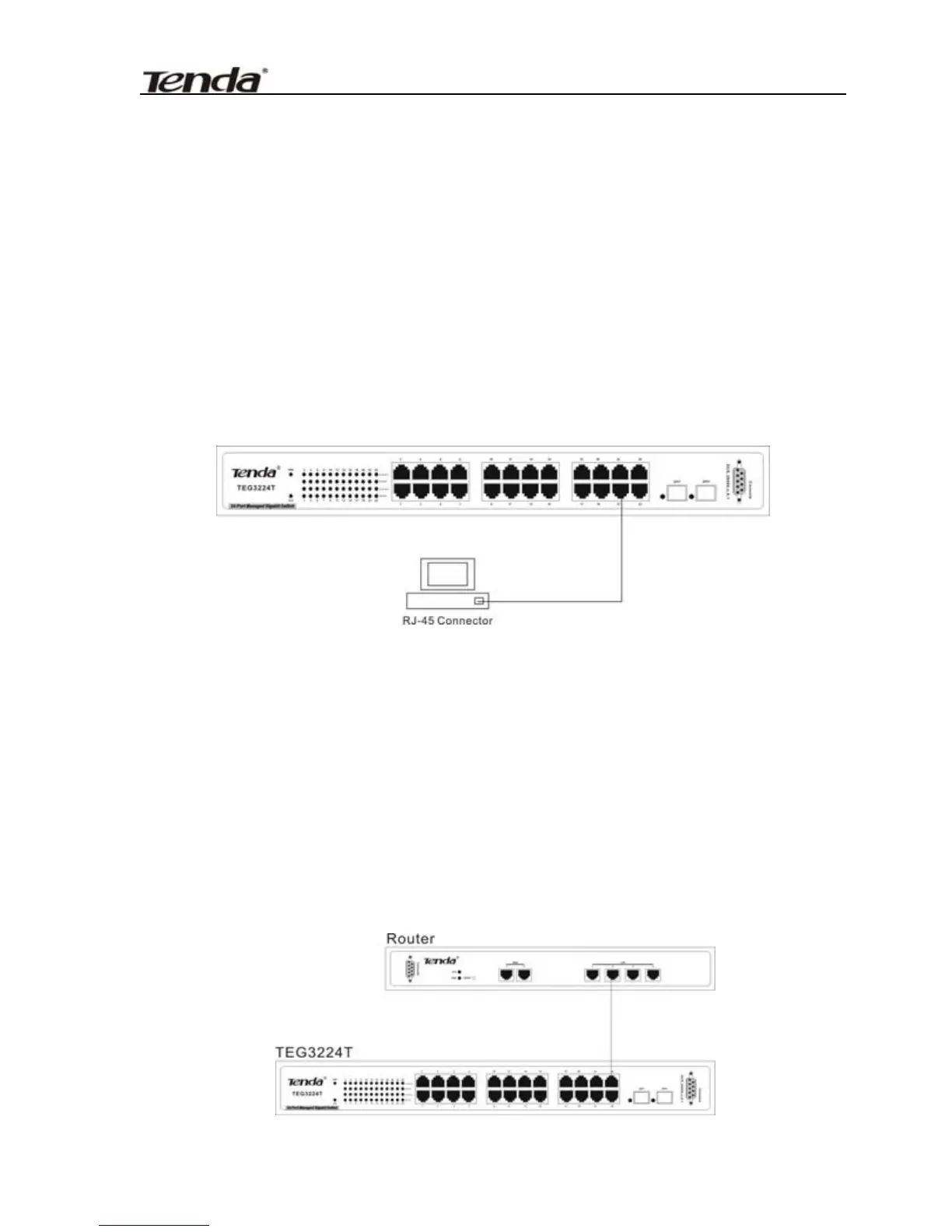

Switch connecting to an end node
Please refer to the LED Indicator Specification. The Link/Act
LEDs for each port lights green when the link is available.
2.2 Switch to Switch or Router
Use the standard Cat.5/5e Ethernet cable (UTP/STP) to uplink the
Switch’s any port to other switch or router as shown below.
Connect to another switch or router
9
