24-Port Managed Gigabit Switch
1.5.3 Power on the Switch
The Switch is powered on by the AC 100-240V 50/60Hz internal
high-performance power supply. Please follow the next tips to
connect:
1.5.3.1 AC Electrical Outlet
It is recommended to use single-phase three-wire receptacle
with neutral outlet or multifunctional computer professional
receptacle. Please make sure to connect the metal groud
connector to the grounding source on the outlet.
1.5.3.2 AC Power Cord Connection
Step 1: Connect the AC power connector in the back panel of
the Switch to external receptacle with the included
power cord.
Step 2: To check the power indicator is ON or not. When it is
ON, it indicates the power connection is OK.
1.6 External Component Description
1.6.1 Front Panel
The front panel of TEG3224T consists of 24 10/100/1000Mbps
RJ-45 ports, 2 Gigabit SFP combo ports, 1 RS-232 Console port
and a series of LED indicators shown as below.

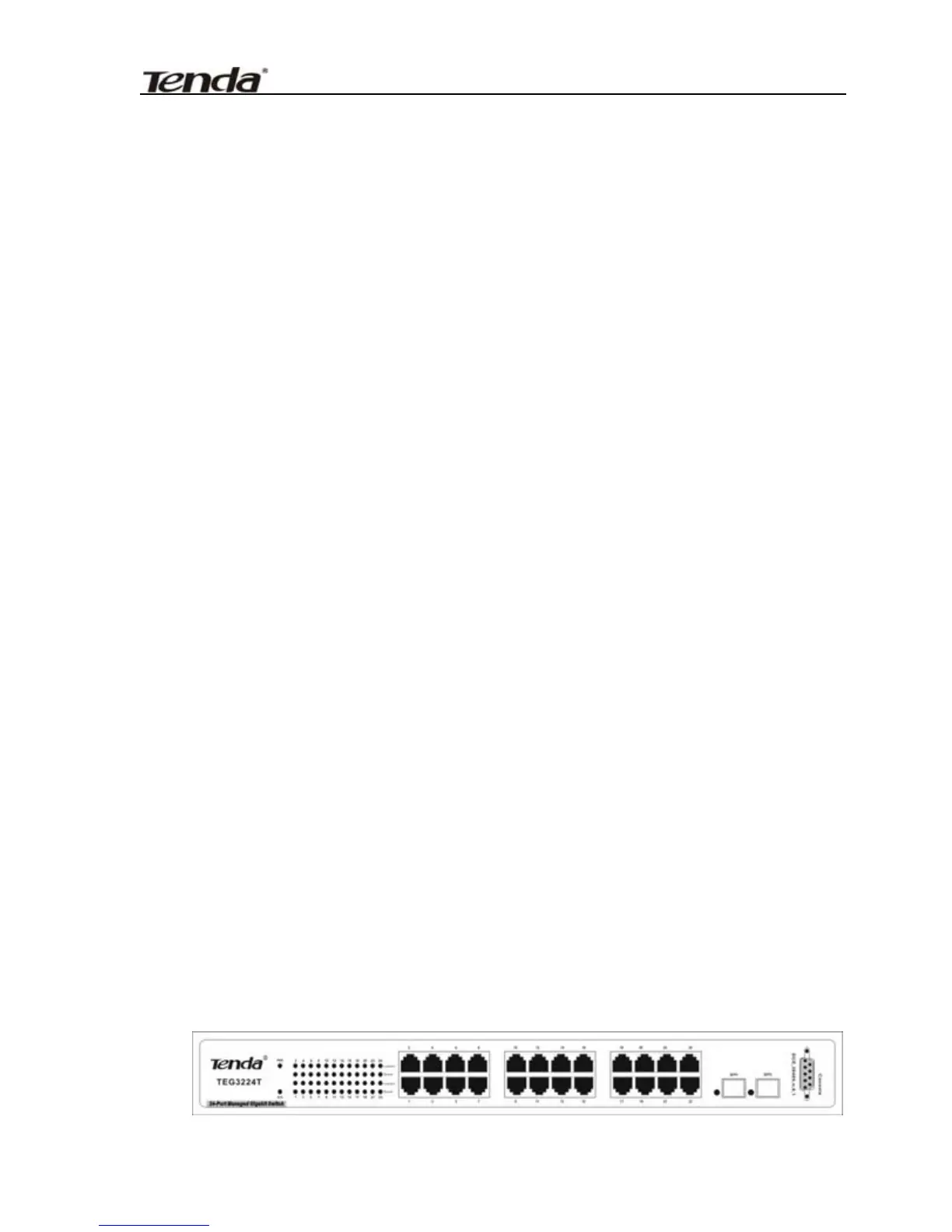

Front panel view
