24-Port Managed Gigabit Switch
Chapter 5 Switch’s Diagnostics
5.1 ICMP Ping

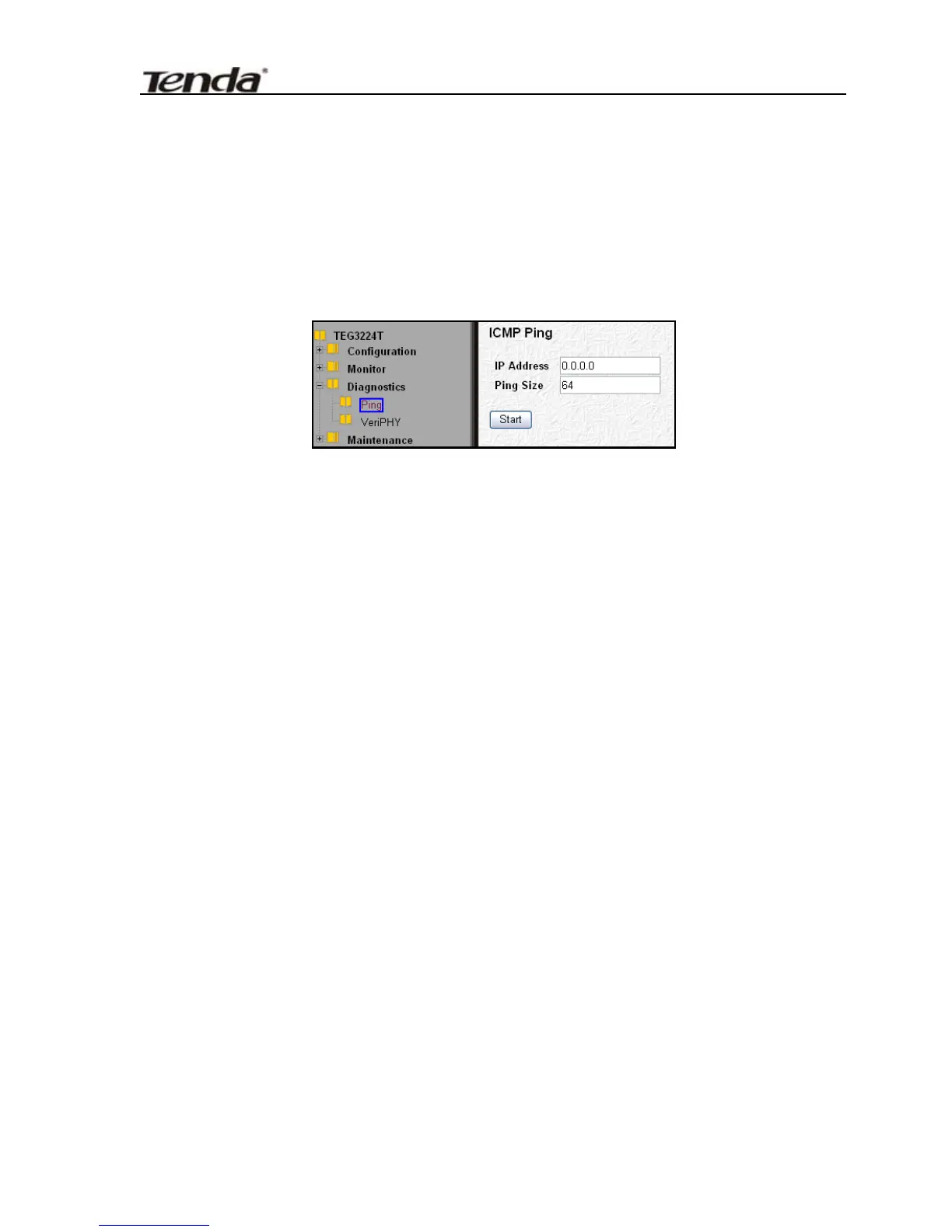

Please select the left meun as TEG3224T→Diagnostics→Ping to
enter the following window:
The page allows you to issue ICMP PING packets to troubleshoot
IP connectivity issues. After you press Start button, 5 ICMP packets
are transmitted, and the sequence number and roundtrip time are
displayed upon reception of a reply. The page refreshes
automatically until responses to all packets are received, or until a
timeout occurs.
PING server 10.10.132.20
64 bytes from 10.10.132.20: icmp_seq=0, time=0ms
64 bytes from 10.10.132.20: icmp_seq=1, time=0ms
64 bytes from 10.10.132.20: icmp_seq=2, time=0ms
64 bytes from 10.10.132.20: icmp_seq=3, time=0ms
64 bytes from 10.10.132.20: icmp_seq=4, time=0ms
Sent 5 packets, received 5 OK, 0 bad
You can configure the following properties of the issued ICMP packets:
IP Address
The destination IP Address.
Ping Size
The payload size of the ICMP packet. Values range from 8
bytes to 1400 bytes.
136
