Tenda TEG3224T User Manual

24-Port Managed Gigabit Switch
3.5.4 Aggregation Configuration
3.5.4.1 Static Aggregation

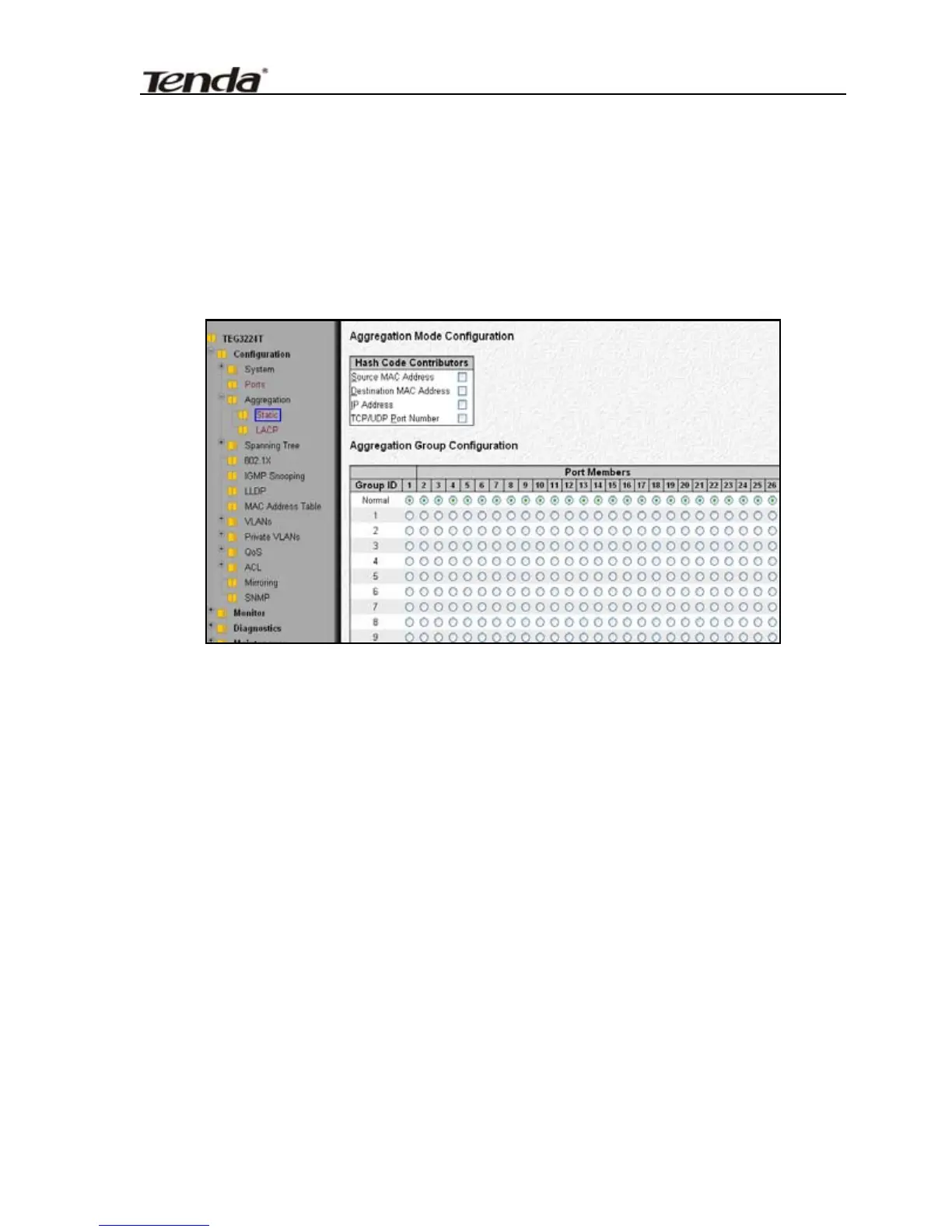

Please select the left meun as TEG3224T→Configuration→
Aggregation →Static to enter the following window:
This page is used to configure the Aggregation hash mode and the
aggregation group. The aggregation hash code settings are global.
Hash Code Contributors
In this section, there are four parts: Source MAC Address,
Destination MAC Address, IP Address and TCP/UDP Port
Number. You can select one or more each time.
Source MAC Address
The source MAC address can be used to calculate the
destination port for the frame. Check to enable the use of the
Source MAC address, or uncheck to disable. By default,
source MAC Address is enabled.
Destination MAC Address
The destination MAC Address can be used to calculate the
27
