24-Port Managed Gigabit Switch

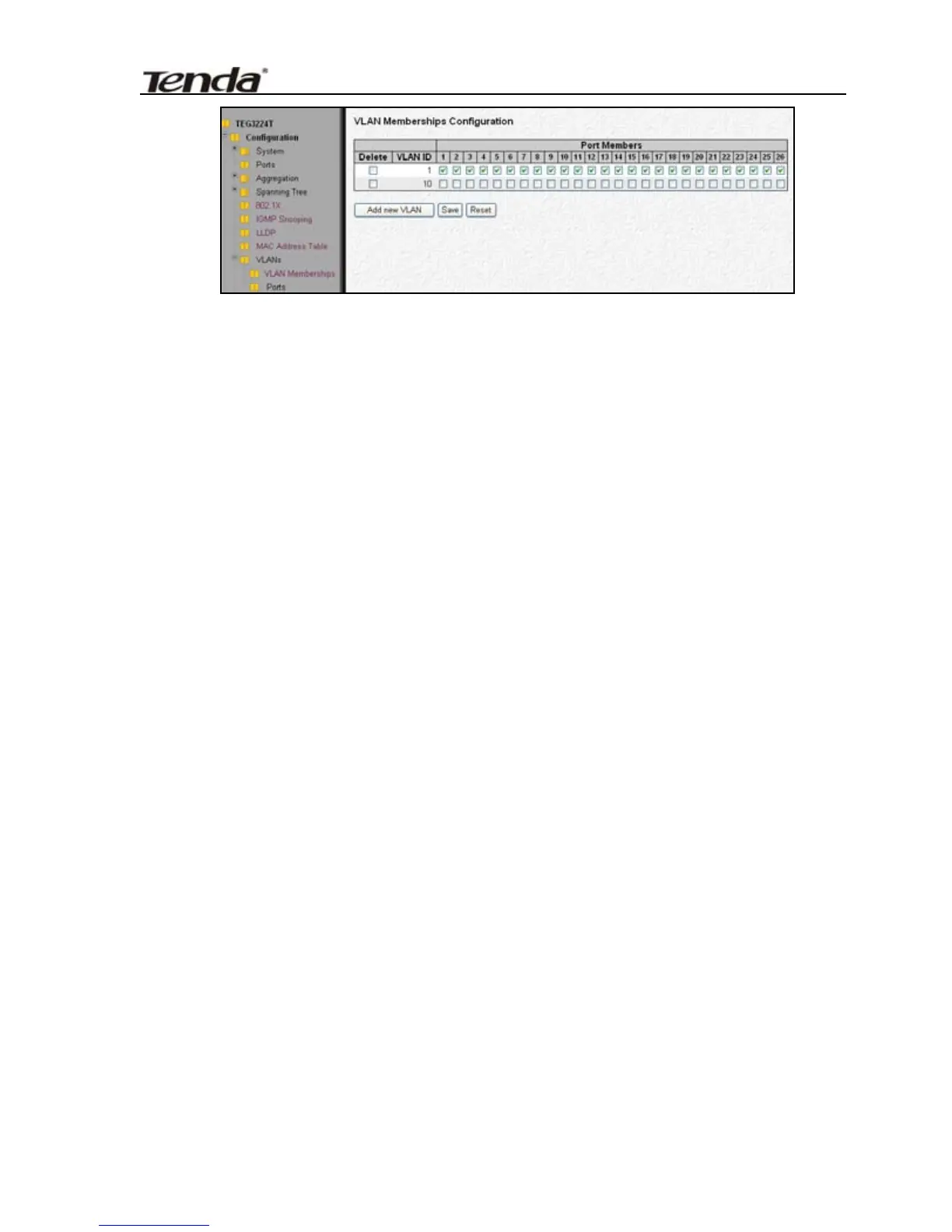

The VLAN membership configurations for the Switch can be
monitored and modified here. Up to 64 VLANs are supported. This
page allows for adding and deleting VLANs as well as adding and
deleting port members of each VLAN.
Delete
To delete a VLAN entry, check this box. The entry will be
deleted on the Switch during the next Save. The default VLAN
1 can’t be deleted.
VLAN ID
Indicates the ID of this particular VLAN.
Port Members
A row of check boxes for each port is displayed for each VLAN
ID. To include a port in a VLAN, check the box. To remove or
exclude the port from the VLAN, make sure the box is
unchecked. By default, no ports are members, and all boxes
are unchecked.
Adding a New VLAN
Click to add a new VLAN ID. An empty row is added to the
table, and the VLAN can be configured as needed. Legal
values for a VLAN ID are
1 through 4094. The VLAN is
ena
bled when you click on "Save".
57
