Tenda TEG3224T User Manual

24-Port Managed Gigabit Switch
86

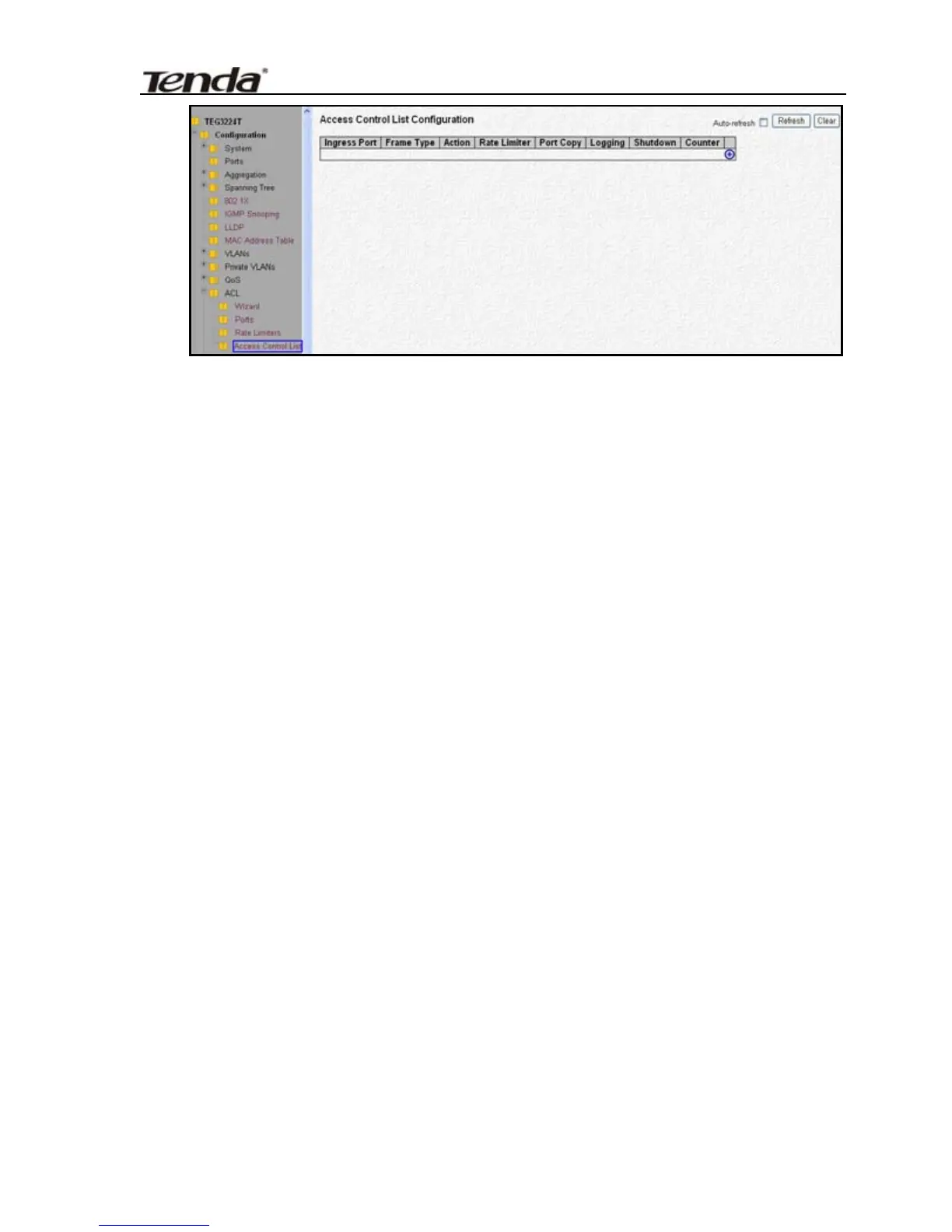

This page shows the Access Control List (ACL), which is made up
of the ACEs defined for this switch. Each row describes the ACE
that is defined. The maximum number of ACEs is 128. Click on the
lowest plus sign to add a new ACE to the list.
Ingress Port
Indicates the ingress port of the ACE. Possible values are:
Any: T
he ACE will match any ingress port.
Policy: The ACE will match ingress ports with a specific policy.
Port: The ACE will match a specific ingress port.
F
rame Type
Indicates the frame type of the ACE. Possible values are:
Any: The ACE will match any frame type.
EType: The ACE will match Ethernet Type frames.
ARP: The ACE will match ARP/RARP frames.
IPv4: The ACE will match all IPv4 frames.
IPv4/ICMP: The ACE will match IPv4 frames with ICMP
protoco
l.
IPv4/UDP: The ACE will match IPv4 frames with UDP protocol.
IPv4/TCP: The ACE will match IPv4 frames with TCP protocol.
IPv4/Other: The ACE will match IPv4 frames, which are not
