Disabled: Port shut down is disabled for the ACE.
Counter
The counter indicates the number of times the ACE was hit by
a frame.
Modification Buttons
You can modify each ACE (Access Control Entry) in the table
using the following buttons:
“+”: Inserts a new ACE before the current row.
“e”: Edits the ACE row.
“↑”: Moves the ACE up the list.
“↓”: Moves the ACE down the list.
“x” : Deletes the ACE.
“+”: The lowest plus sign adds a new entry at the bottom of the
ACE listings. Click it to enter the next window:

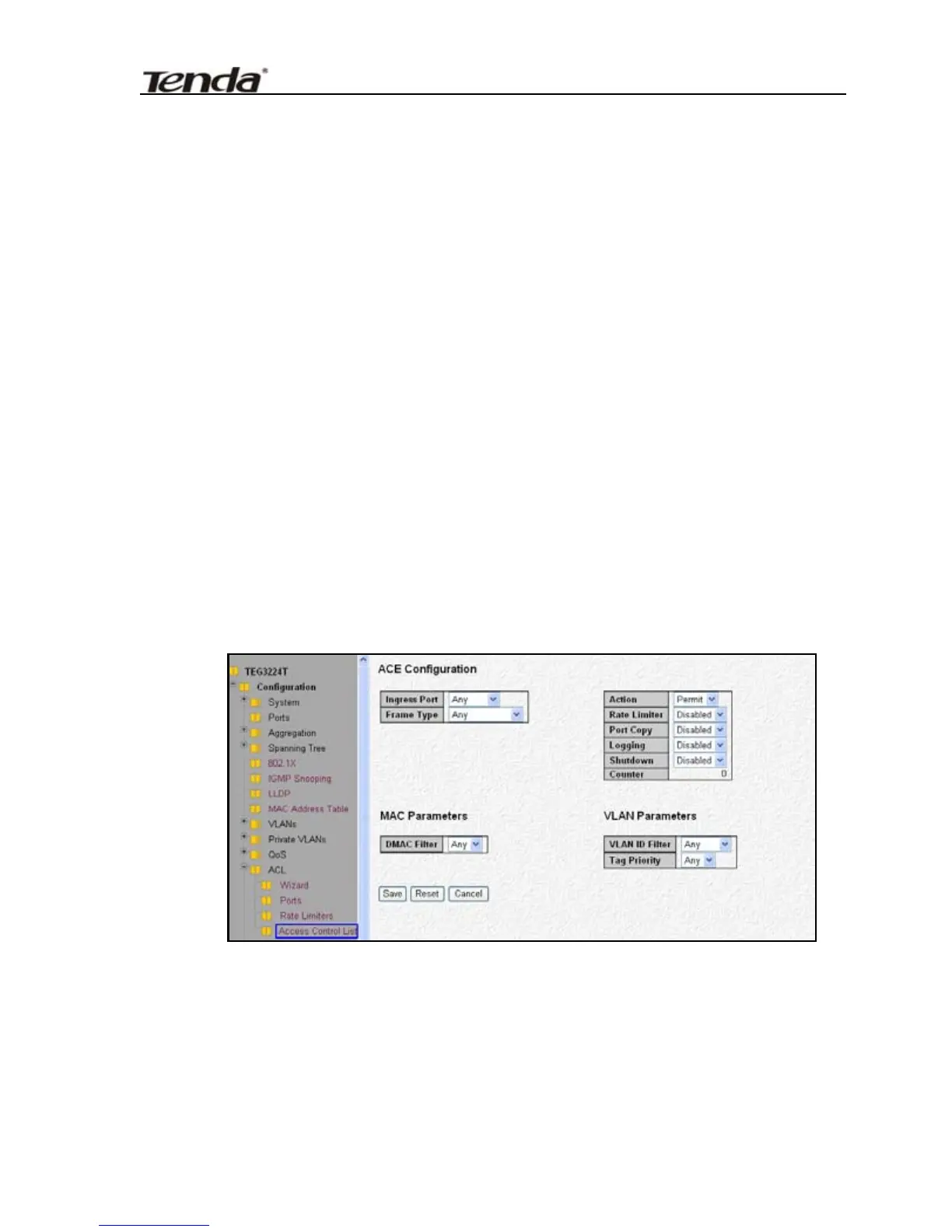

Configure an ACE (Access Control Entry) on this page.An ACE
consists of several parameters. These parameters vary according
to the frame type that you select. First select the ingress port for the
ACE, and then select the frame type. Different parameter options
are displayeddepending on the frame type that you selected. A
88
