August 2021 Service and Repair Manual
Scissor Components
Part No. 1309020GT GS
â„¢
-30m • 32m • 30 • 32 • 46 • 55 91

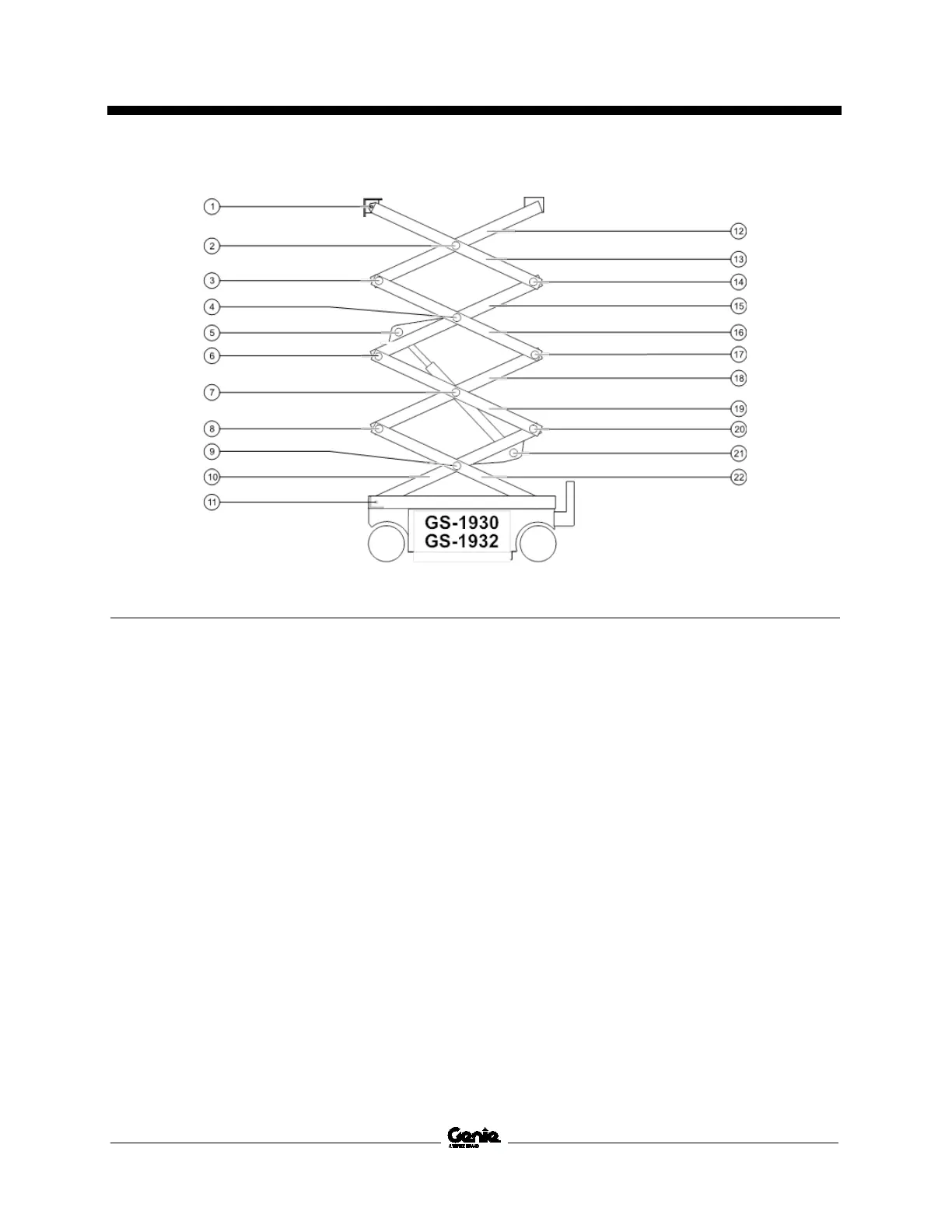

1 - Number 5 pivot pin
12 - Number 4 inner arm
2 - Number 4 center pivot pin (Qty. 2)
13 - Number 4 outer arm
3 - Number 4 pivot pin (steer end)
14 - Number 4 pivot pin (non-steer end)
4 - Number 3 center pivot pin (Qty. 2)
15 - Number 3 inner arm
5 - Lower lift cylinder rod-end pivot pin
16 - Number 3 outer arm
6 - Number 3 pivot pin (steer end)
17 - Number 3 pivot pin (non-steer end)
7 - Number 2 center pivot pin (Qty. 2)
18 - Number 2 inner arm
8 - Number 2 pivot pin (steer end)
19 - Number 2 outer arm
9 - Number 1 center pivot pin (Qty. 2)
20 - Number 2 pivot pin (non-steer end)
10 - Number 1 inner arm
21 - Lower lift cylinder barrel-end pivot pin
11 - Number 1 pivot pin
22 - Number 1 outer arm
