Service and Repair Manual August 2021

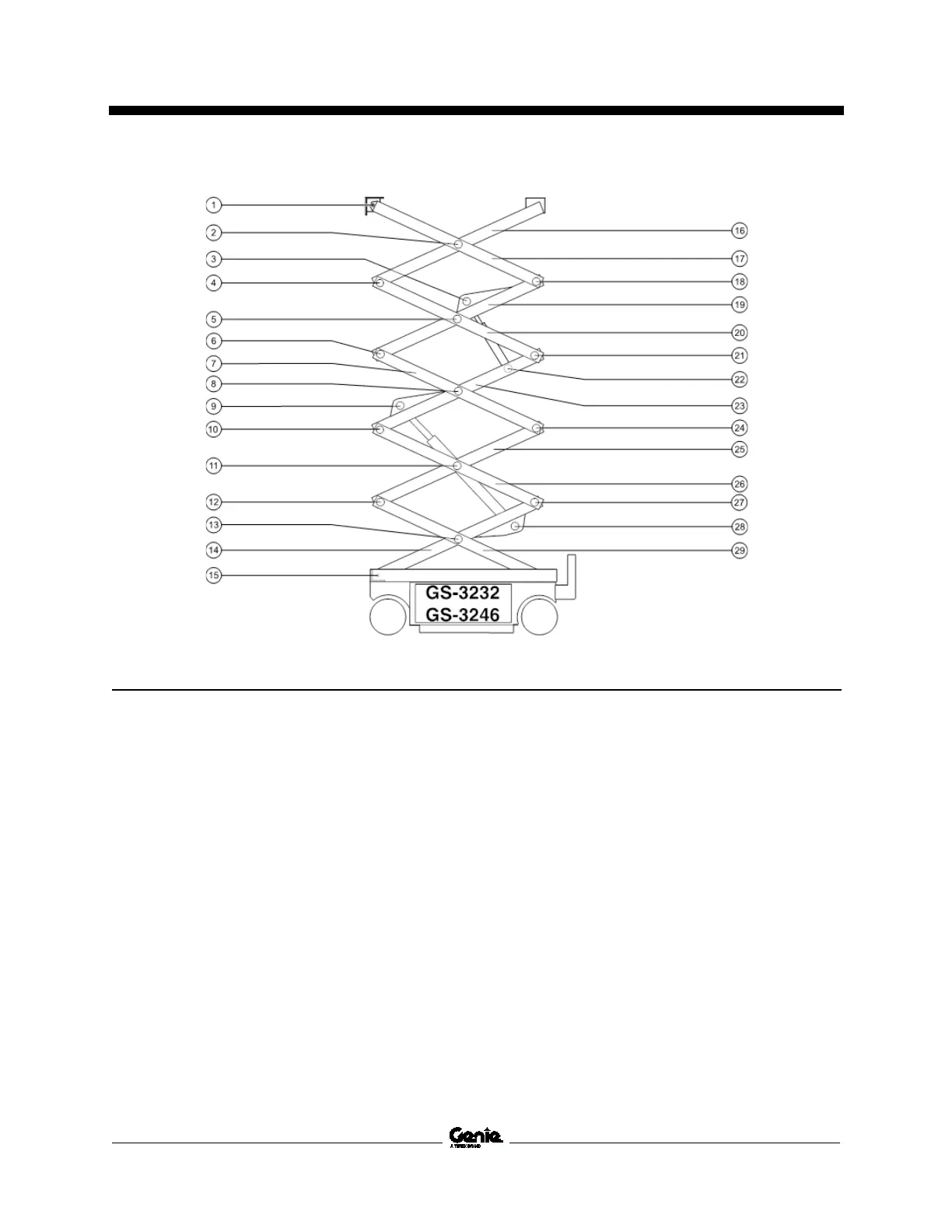

Scissor Components
116 GS
â„¢
-30m • 32m • 30 • 32 • 46 • 55 Part No. 1309020GT
Steer End
Non-steer End
1 - Number 6 pivot pin
16 - Number 5 inner arm
2 - Number 5 center pivot pin (Qty. 2)
17 - Number 5 outer arm
3 - Upper lift cylinder rod-end pivot pin
18 - Number 5 pivot pin (non-steer end)
4 - Number 5 pivot pin (steer end)
19 - Number 4 inner arm
5 - Number 4 center pivot pin (Qty. 2)
20 - Number 4 outer arm
6 - Number 4 pivot pin (steer end)
21 - Number 4 pivot pin (non-steer end)
7 - Number 3 outer arm
22 - Upper lift cylinder barrel-end pivot pin
8 - Number 3 center pivot pin (Qty. 2)
23 - Number 3 inner arm
9 - Lift cylinder rod-end pivot pin
24 - Number 3 pivot pin (non-steer end)
10 - Number 3 pivot pin (steer end)
25 - Number 2 inner arm
11 - Number 2 center pivot pin (Qty. 2)
26 - Number 2 outer arm
12 - Number 2 pivot pin (steer end)
27 - Number 2 pivot pin (non-steer end)
13 - Number 1 center pivot pin (Qty. 2)
28 - Lift cylinder barrel-end pivot pin
14 - Number 1 inner arm
29 - Number 1 outer arm
15 - Number 1 pivot pin (steer end) (Qty. 2)
