August 2021 Service and Repair Manual
Power Cables
Part No. 1309020GT GS
â„¢
-30m • 32m • 30 • 32 • 46 • 55 173
6 Disconnect the power cable to be replaced
from the motor controller.
7 Remove all cable ties and clamps securing
the power cable between the motor controller
and drive motor. Note the location of the cable
ties.

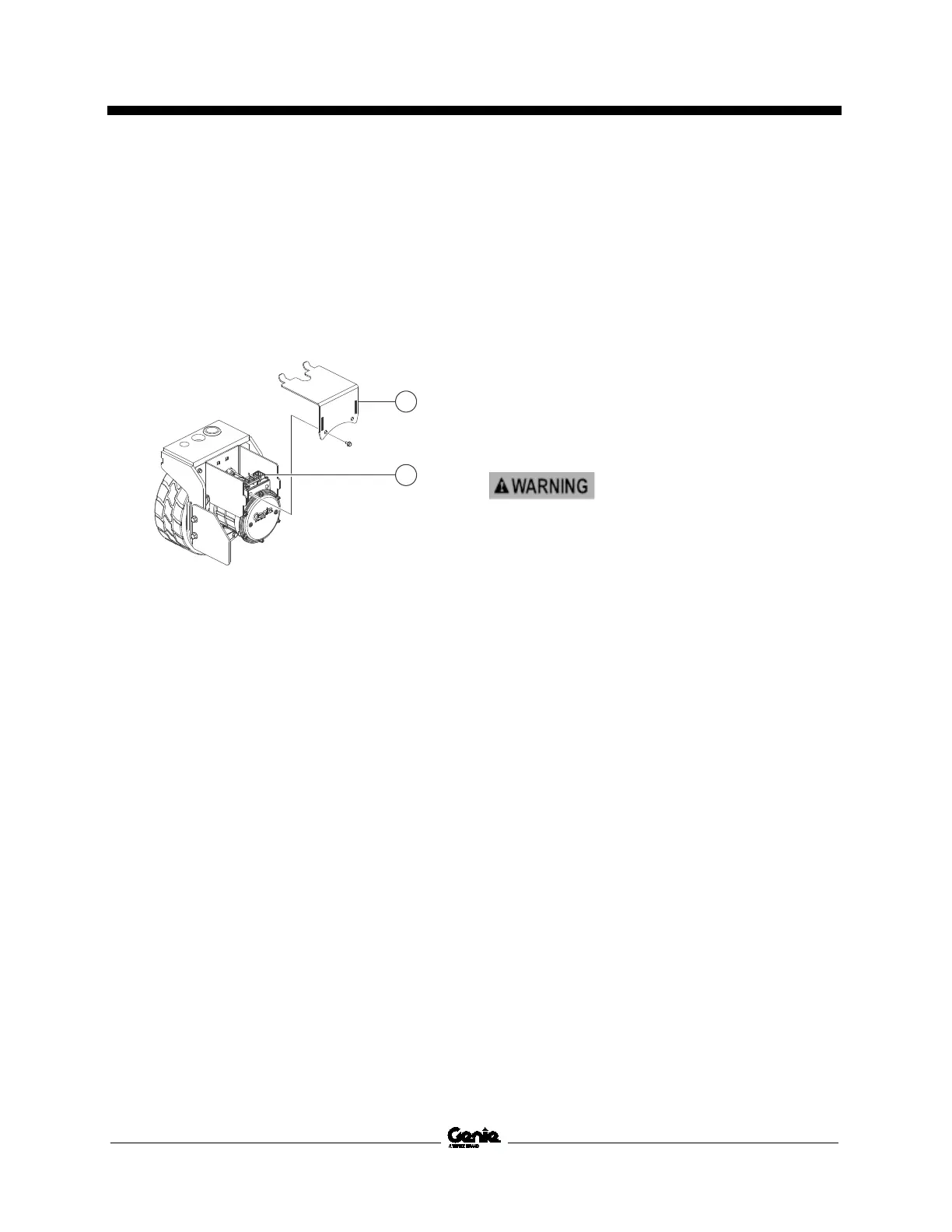

8 Remove the terminal cover from the drive
motor.
1 terminal cover
2 drive motor cable terminal
9 Disconnect the power cable from the drive
motor.
10 Remove the power cable from the machine.
11 Lay the replacement power cable on the
surface in a straight line at the steer end of
the machine so there are no bends or twist.
12 Route the power cable into the chassis to the
motor controller.
Note: Verify the cable is not being twisted while
routing through the chassis.
13 Connect the power cable to the drive motor.
14 Install the terminal cover to the drive motor.
15 Install all cable clamps securing the power
cable to the chassis.
Note: The routing line on the power cable must be
aligned with the top center of the cable clamp
during installation.
Note: Refer to, Cable Routing Diagram.
16 Secure the power cable using cable ties.
Note: Verify the cable is straight and does not rub
on any metal edges.
17 Connect the power cable to the motor
controller.
18 Connect the battery pack to the machine.
hazard.
Contact with electrically charged
circuits could result in death or
serious injury. Remove all rings,
watches and other jewelry.
19 Fully steer the machine in both directions and
verify the power cable does not get pinched or
rub.
Note: Repeat this procedure if the other power
cable is being replaced.
