Terex Genie GS-1330m User Manual

Service and Repair Manual August 2021
Repair Procedures
174 GS
™
-30m • 32m • 30 • 32 • 46 • 55 Part No. 1309020GT

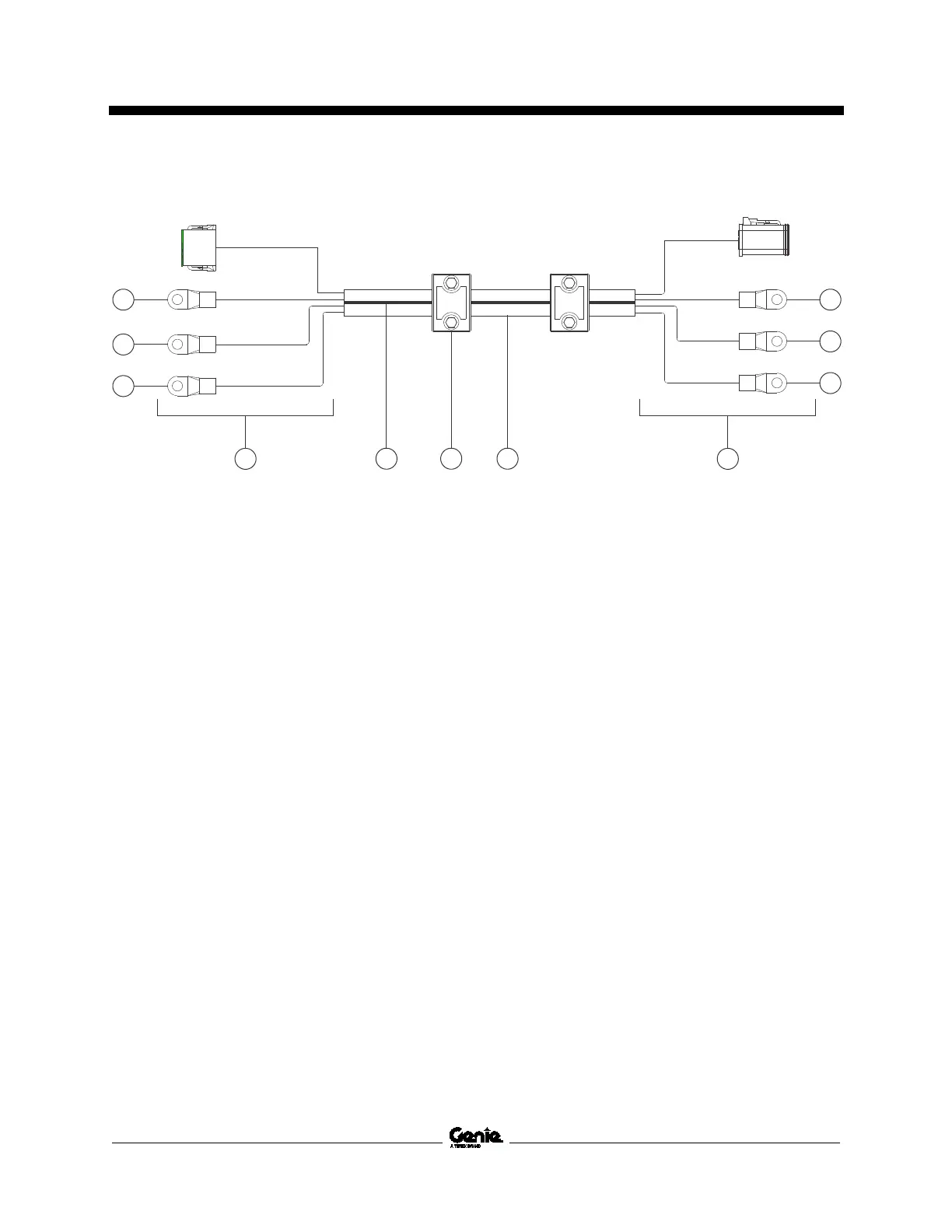

Power Cable Diagram
1 motor controller
2 drive motor
3 terminal "U", green
4 terminal "V", black
5 terminal "W", white
6 routing line
7 clamp
8 power cable
7
1 2
8
6
3
4
5
3
4
5
