Service and Repair Manual August 2021
Ground Controls
28 GS
â„¢
-30m • 32m • 30 • 32 • 46 • 55 Part No. 1309020GT

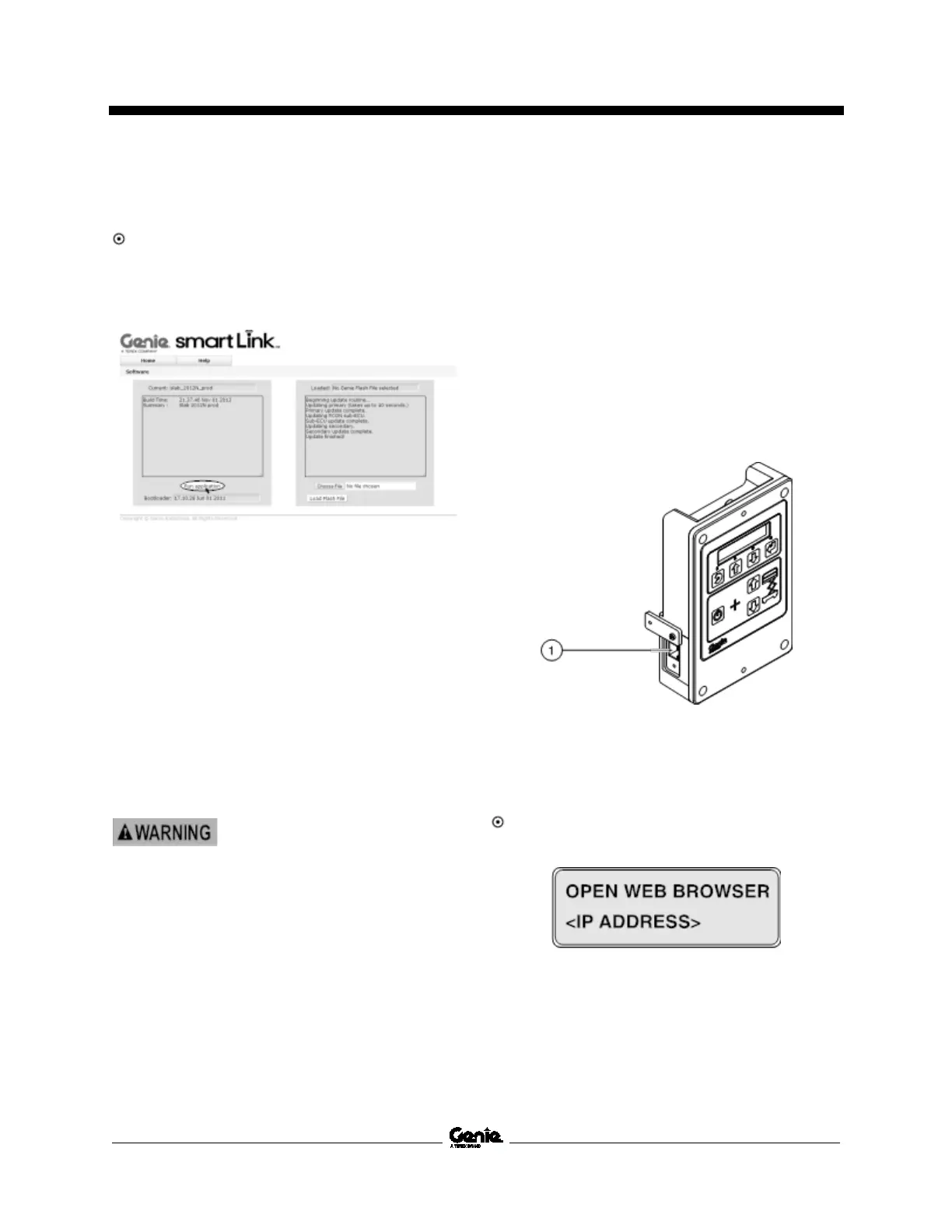

11 Select the Reprogram Device(s) button to
start the ECM software update.
Result: The following screen will be displayed
after the software update is complete.
Note: Do not turn off power while the ECM is being
reprogrammed.
12 Select the Run Application button to exit the
software update mode.
13 Push in the red Emergency Stop button and
disconnect the CAT5 cable from the GCON.
14 Secure the diagnostic port cover using the
retaining fasteners removed in step 5. Do not
over tighten.
Note: Machines equipped with AGM batteries will
need to select the AGM battery type using the
GCON set parameters screen. Refer to the
Machine Setup procedure in the Service and
Repair manual that is appropriate for your
machine.
Tip over hazard. Updating the
SmartLink software may have
impacted the machines default
drive
speeds. Tipping over the
machine will result in death or
serious injury.
Perform drive speed test. Refer
to the
Maintenance Manual that
is appropriate for your machine.
15 Perform a function test. Refer to the
Operator's Manual on your machine.
16 Return the machine to service.
Machine Application Mode
1 Open the GCON compartment.
Note: Some models will require opening the
ground control box to access the GCON.
2 Turn the key switch to ground controls or
platform controls and pull out the red
Emergency Stop button to the on position at
both ground and platform controls.
3 Locate the diagnostic port on the side of the
GCON. Remove one of the fasteners securing
the cover and set aside. Loosen the other
fastener. Do not remove it.
1 diagnostic port
4 Connect one end of a CAT5 Ethernet cable
into the diagnostic port. Connect the other
end into a PC or laptop.
Result: The ground controls LCD display will
show the following:
