Service and Repair Manual August 2021
Ground Controls
36 GS
â„¢
-30m • 32m • 30 • 32 • 46 • 55 Part No. 1309020GT
5 Lower the platform onto the safety arm.
Crushing hazard. Keep hands
clear of the safety arm when
lowering the
platform.
6 Turn the key switch to the off position and
push in the red Emergency Stop button to the
off position at the ground controls.
7 Tag and disconnect the level sensor wire
harness from the chassis wire harness.
Note: The wire harness connection is located on
the level sensor, on top of the chassis at the steer
end of the machine.
8 Remove the level sensor retaining fasteners
and remove the level sensor from the
machine.
9 Securely install the wires of the new level
sensor into the level sensor connector plug.
10 Place the new level sensor on to the level
sensor bracket with the "Y" on the level
sensor away from the ground controls of the
machine and the "X" on the level sensor
closest to the steer end of the machine.
-over hazard. Failure to
install
the level sensor as instructed,
could result in the machine
tipping over, causing death or
serious injury.
Steer End
Non-steer End

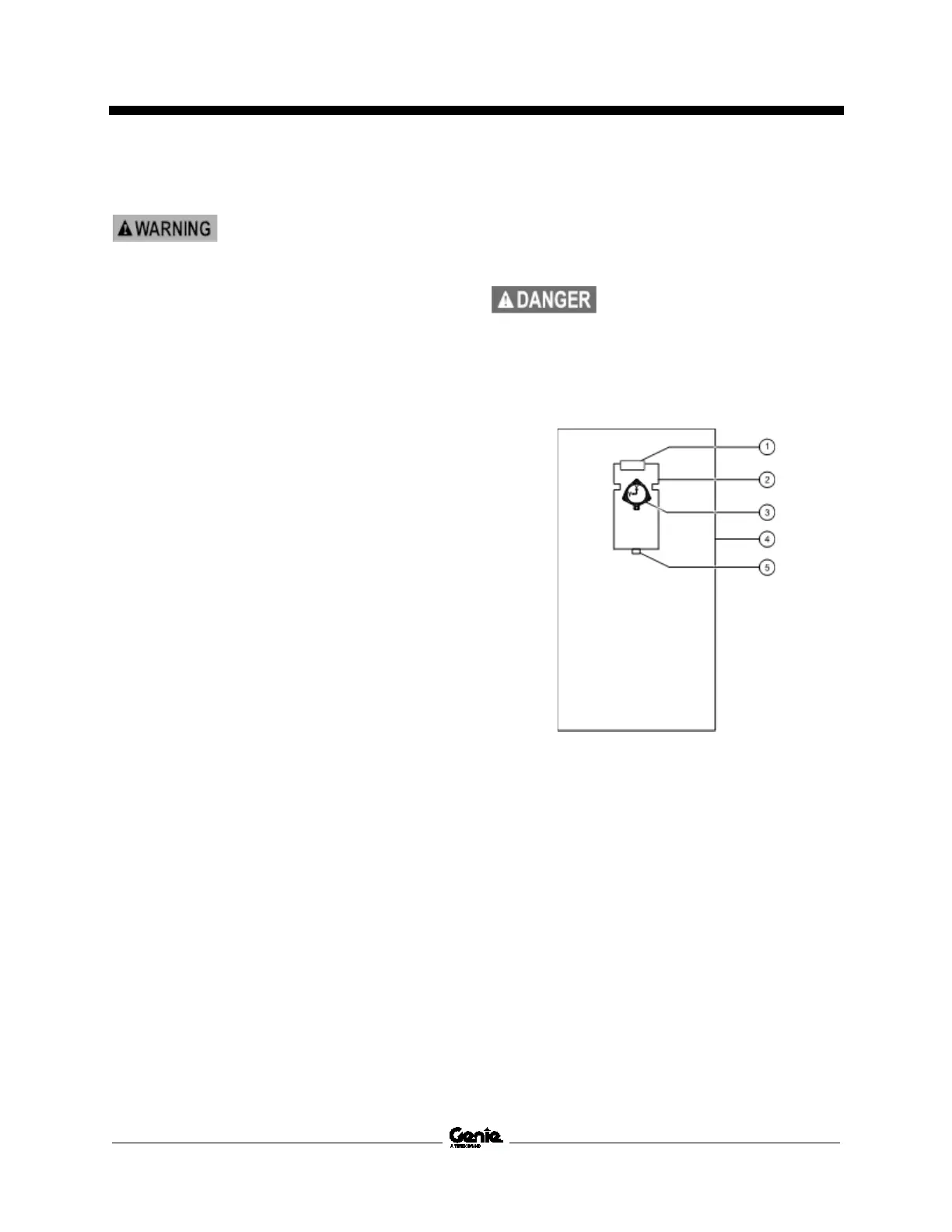

1 limit switch
2 level sensor mount bracket
3 level sensor S7
4 scissor chassis
5 alarm H5
To Next Page
