11 Install the level sensor retaining fasteners
through the level sensor and into the mount
bracket.
12 Connect the chassis wire harness to the level
sensor.
13 Turn the key switch to ground control and pull
out the red Emergency Stop button to the on
position at both ground and platform controls.
Result: GCON will display a ‘C051:
SYSTEMFAULT, TILT:NoCal fault.
14 Push in the red Emergency Stop button to the
off position at the ground controls.
15 Press and hold the ground control scroll up
and scroll down buttons.

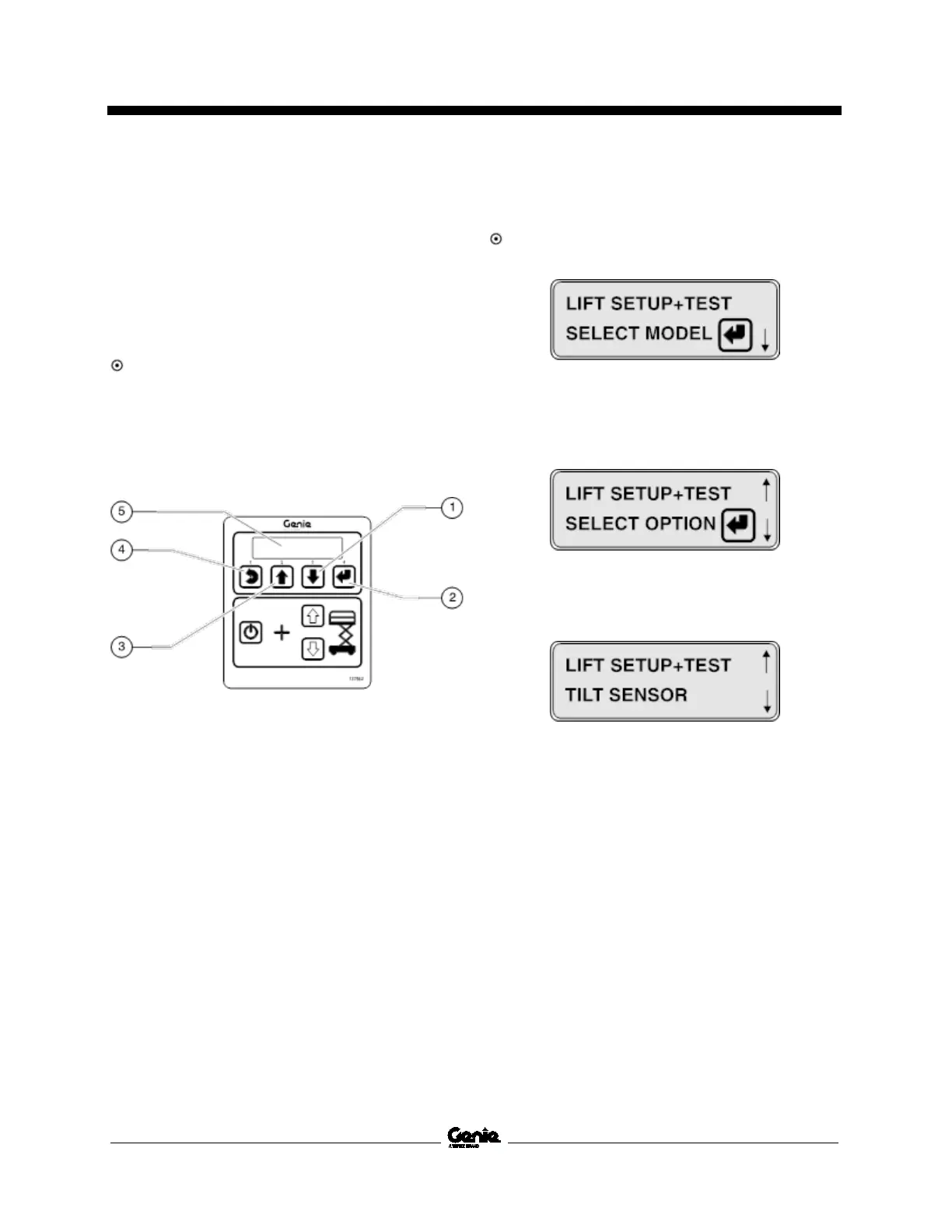

Ground Control Menu Buttons
1 scroll down button
2 enter button
3 scroll up button
4 escape button
5 LCD display
16 Pull out the red Emergency Stop button to the
on position at the ground controls.
Result: The ground controls LCD display will
show the following:
17 Release the Scroll Up and Scroll Down
buttons after the ground controller powers up.
18 Use the Scroll Up or Scroll Down buttons to
scroll to Select Option.
19 Press the enter button.
20 Use the Scroll Up or Scroll Down buttons to
scroll to Tilt Sensor.
21 Press the enter button.
To Next Page
