STEERING
6D-13
ASSEMBLY
1. Install the seal kit as shown in Figure 6D-5.
2. Lubricate all parts with clean hydraulic oil before
assembly.
3. Follow the steps illustrated in Figure 6D-4 for
assembly.
NOTE:
Install the ball joint, using the same number of
turns as noted during removal.

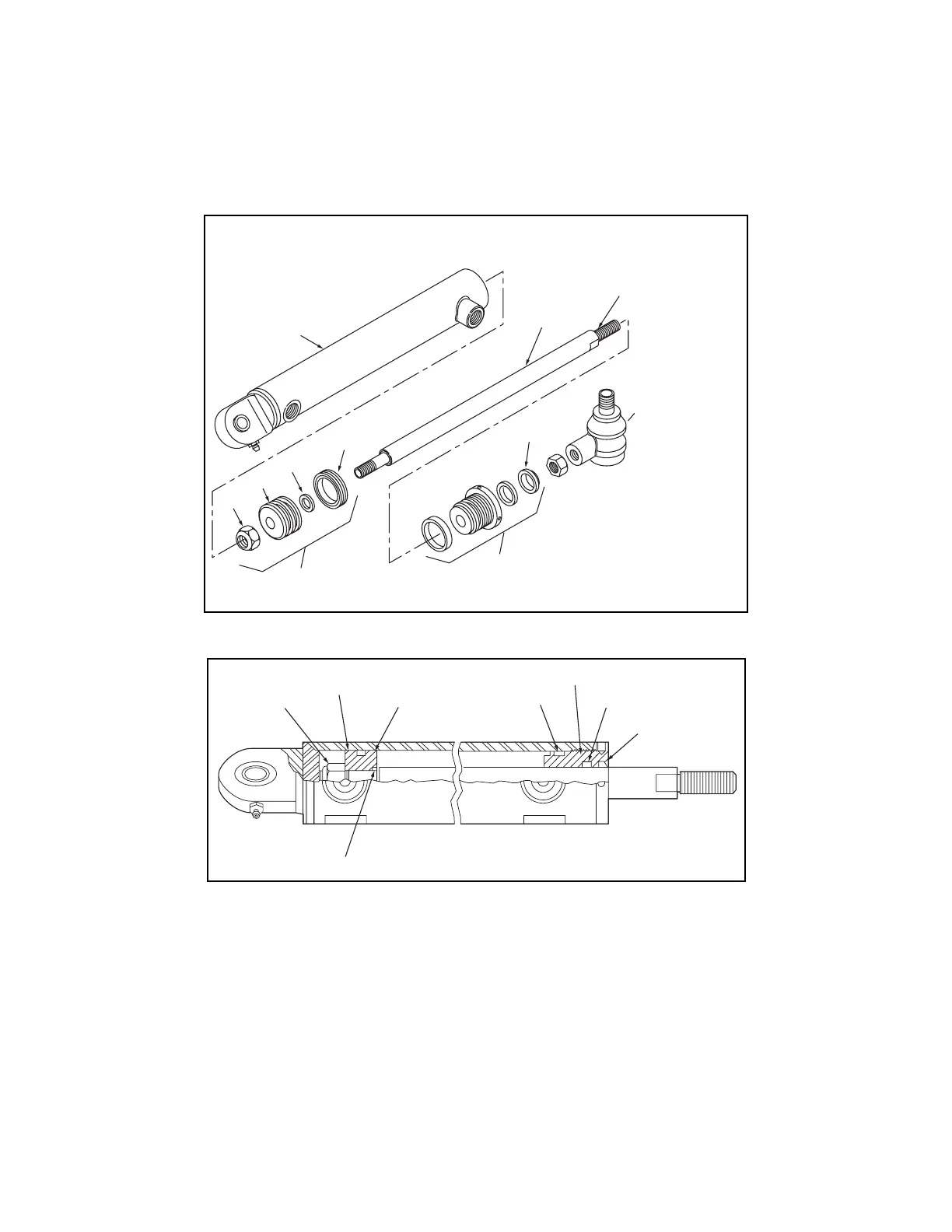

Figure 6D-4. Steering Cylinder Assembly
Figure 6D-5. Seal Kit Installation
INSTALLATION
1. Inspect and replace, if necessary, the steering
arms mounting spacer and flat washer.
2. Position the steering cylinder for installation on the
axle and secure with a bolt, flat washers, spacer,
and nut.
3. Install the ball joint on the steering arm and secure
with the castle nut and cotter pin.
4. Using the tags created during disassembly, con-
nect the hydraulic hoses to the cylinder.
5. Start the machine and check for hydraulic leaks
and cylinder operation. Repair as necessary.
6. Check the steering toe-in and turn stop adjust-
ments as described in this section and in the Parts
and Maintenance manual.
Barrel
Rod
Piston Ring
Piston
Nut
Step 1
Step 4
Lubricate assembly and
push rod into barrel. Using
a spanner wrench tighten
rod guide.
Step 3
Rod Wiper
O-Ring
Seal Ring
Rod Guide
O-Ring
Install lock nut and
ball joint on rod end.
Step 2
Assemble piston as shown.
Assemble rod guide
and install on rod.
Nut
Piston
Cylinder
Rod Seal
Rod Guide
Rod Wiper
O-Ring
O-Ring
