OPTIONS
13C-14
DRIVE

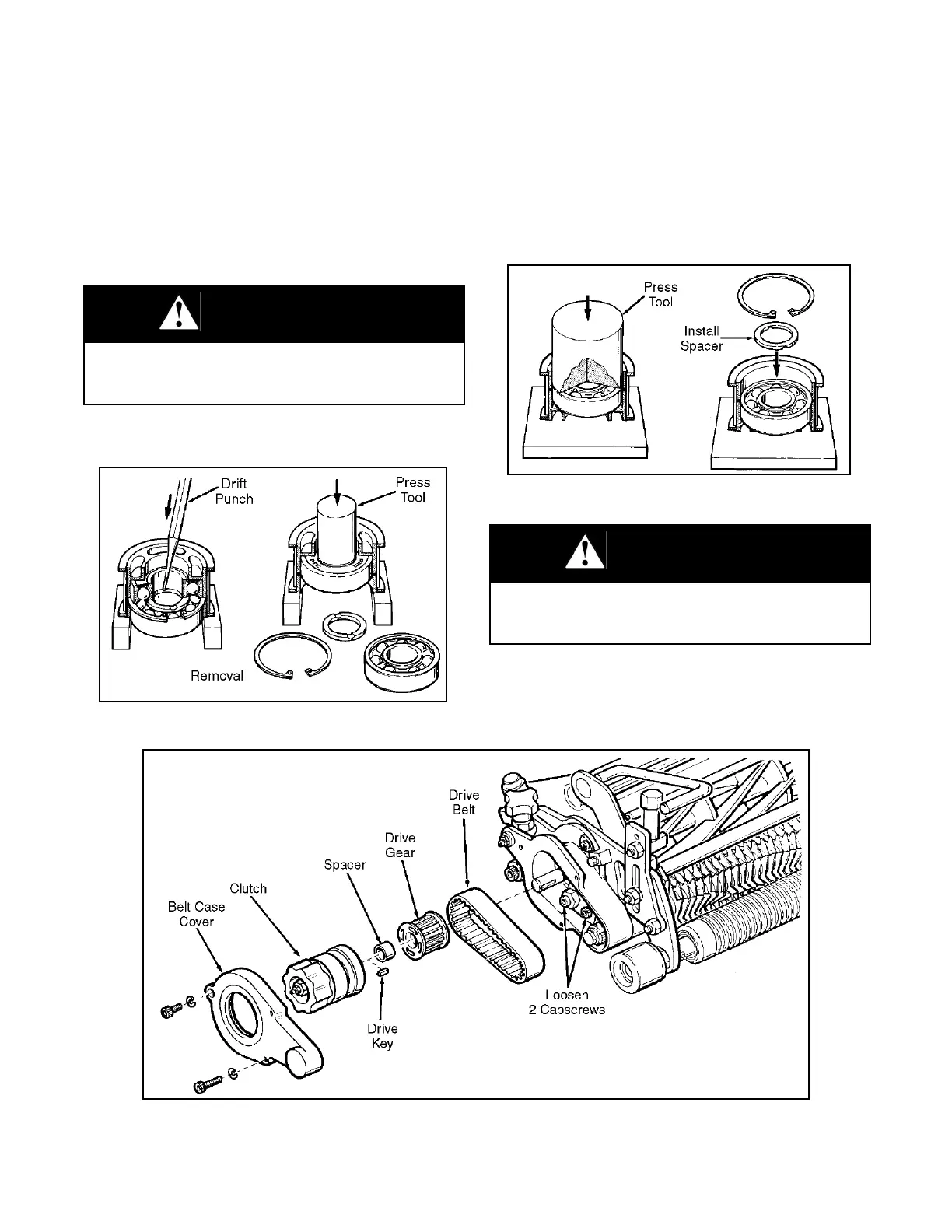

Drive Pulley Repair
1. Remove the belt case cover, clutch, and drive key
(Figure 13C-11).
2. Loosen the drive belt.
3. Remove the drive pulley, spacer, and belt.
4. Using a drift punch, drive the outer bearing from
the drive gear (Figure 13C-9).
Figure 13C-9. Drift Punch
NOTE:
The spacer will be damaged during bearing
removal, discard and install a new spacer.
5. Remove the snap ring and press out the inner
bearing.
6. Press a new bearing seal side first into the drive
gear. (Figure 13C-10)
Figure 13C-10. Press Tool
Figure 13C-11. Drive Pulley Repair
CAUTION
Do not support the drive pulley on the outer flange.
Support the drive pulley only on the solid part of the
gear.
CAUTION
When pressing new bearings, always use a flat or
round mandrel the diameter of the bearing outer
race. Do not press on the inner race only.
