OPTIONS
13C-15
7. Install the snap ring and new spacer.
NOTE:
The spacer does not have to be centered at this
point.
8. Install the outer bearing with side out
(Figure 13C-12).

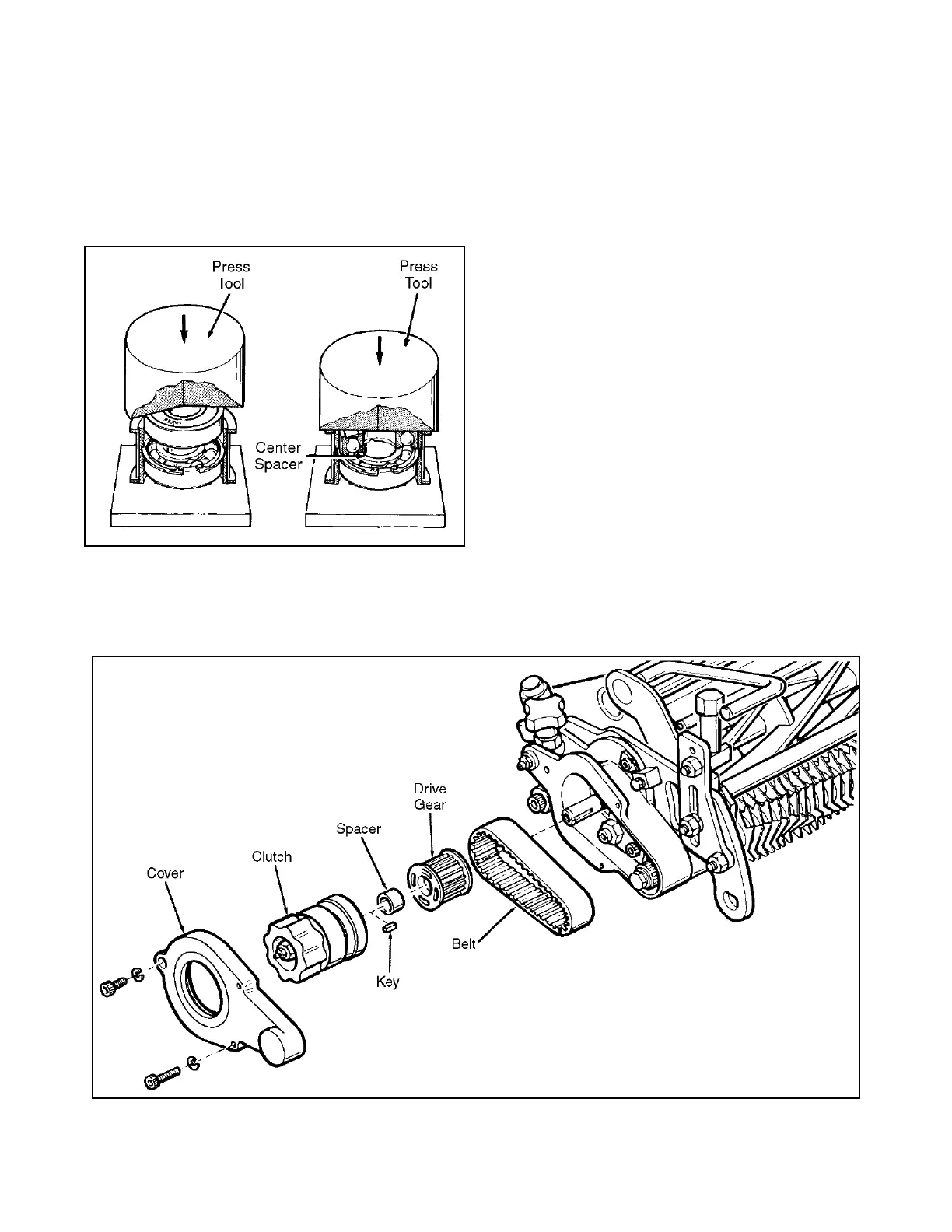

Figure 13C-12. Drive Groomer Installation
NOTE:
When installing the outer bearing, use a flat plate
across the top of the bearing.
9. When the bearing has been pressed 3/4 of the
way in the drive gear, center the spacer. Continue
pressing the bearing until it contacts the center
spacer.
10.Install the drive gear and belt into the belt case
(see Figure 13C-8).
11.Install the spacer, drive key, and clutch, torque the
clutch bolt to 20 ft-lbs (27 Nm).
12.Adjust the drive belt as described in the Belt
Adjustment section.
13.Install the belt case cover and torque the cap-
screws 6 to 8 ft-lbs (8 to 10.8 Nm).
Belt Replacement
1. Remove the belt case cover (Figure 13C-13).
2. Remove the clutch and drive key.
3. Loosen the belt adjuster eccentric and bearing
retainer capscrew.
4. Remove the spacer, drive pulley, and belt.
5. Install the drive gear, bearing toward the inside
and belt over the reel shaft. Work the belt over the
groomer shaft drive gear.
6. Install the spacer, drive key and clutch, torque
clutch belt to 20 ft-lbs (27 Nm).
7. Proceed with Step 3 of the Belt Adjustment sec-
tion.
Figure 13C-13. Belt Replacement
