ELECTRICAL SYSTEM
10P-47
SECTION 10P. FUEL PUMP
FUEL PUMP TEST
The fuel pump is located underneath the seat and seat
pan. The fuel pump can be tested as follows:
1. Shut down the engine and remove the ignition
key. Allow the engine to cool completely.
2. Remove the seat and seat pan.
3. Disconnect the fuel wiring harness connector.
4. Set the multimeter to 20 volts DC and connect the
red test lead to the red/white wiring harness con-
nector socket. Connect the black test lead to the
ground wire in the wiring connector
(Figure 10P-1).
5. Place the ignition switch in the RUN position.
The multimeter should indicate battery voltage.
If voltage is not indicated, check wiring harness
and circuit for faults.
If battery voltage is indicated, the fuel pump may
be faulty.

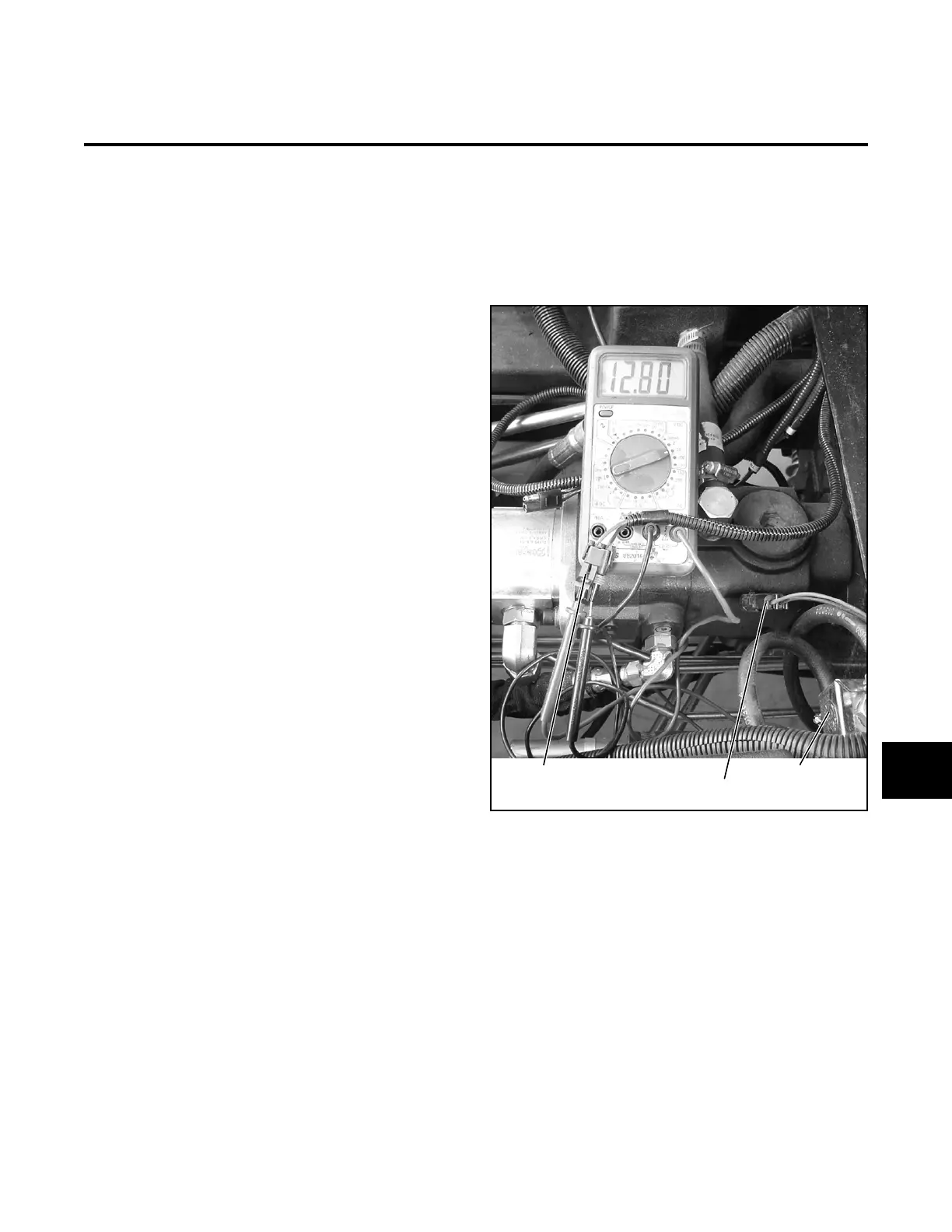

Figure 10P-1. Fuel Pump Test
Wiring Harness
Connector
Fuel Pump
Connector
Fuel Pump
