SECTION 13C. TURF GROOMER
GROOVED ROLLER
Removal
1. Loosen setscrews on the outer roller shaft nuts
(Figure 13C-1).
2. Remove the roller shaft nuts and spacer(s).
3. On the motor end, remove the groomer side
plates.
4. Remove the roller.

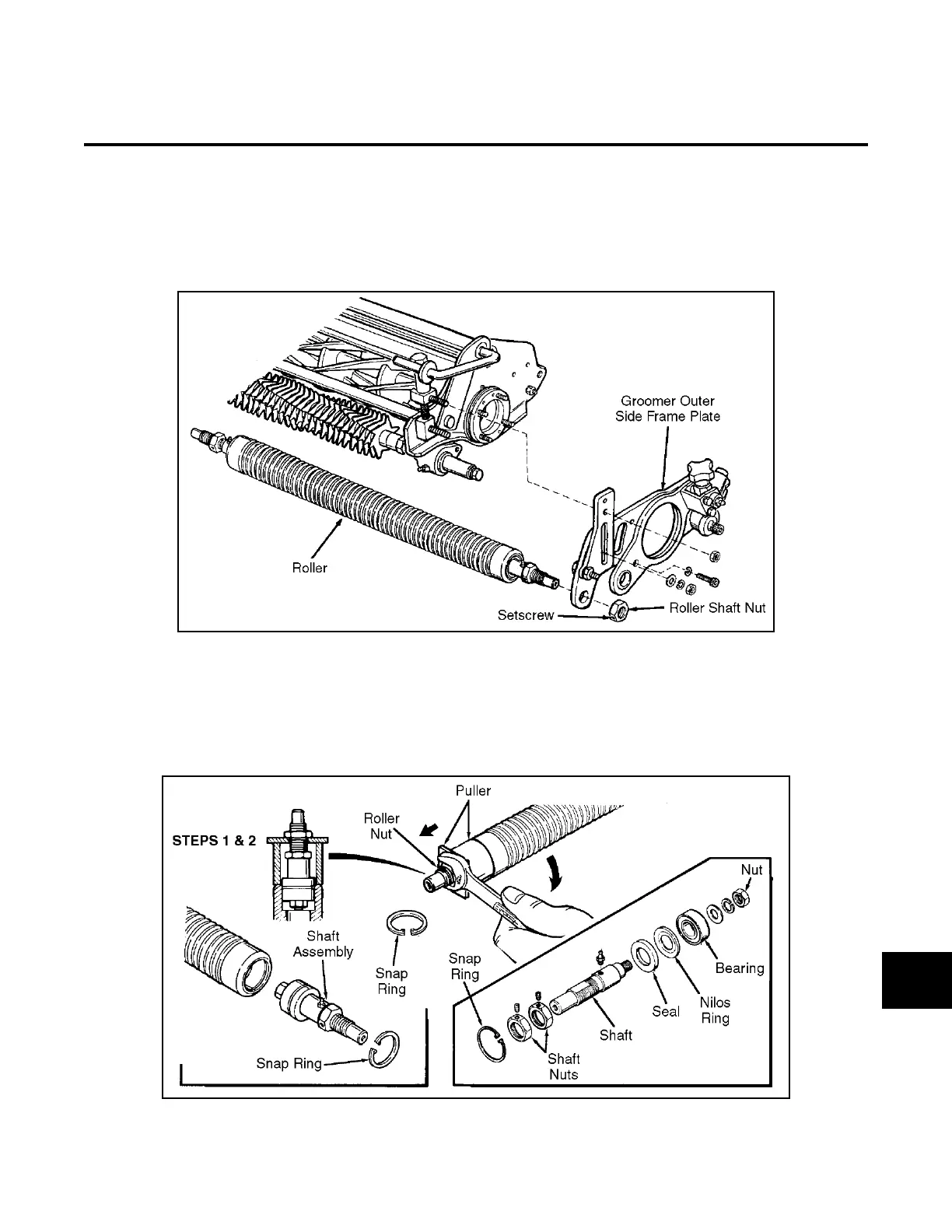

Figure 13C-1. Roller Removal
Repair
1. Remove the snap ring (Figure 13C-2).
2. Using a puller, remove the shaft assembly.
3. Bearing, nilos ring, and seal can be removed by
first removing the nut and associated hardware.
NOTE:
Grease fitting and shaft nuts should be removed
before reassembly.
Figure 13C-2. Roller Repair
