Textron Jacobsen LF-1880 User Manual

HYDRAULICS
8D-18
INSTALLATION
1. Using a new o-ring lubricated with clean hydraulic
oil, position the reel pump on the traction pump
and secure with two socket head capscrews.
2. Place the traction pump/reel pump in the frame
and secure the mounting bolts, nuts, washer, and
mounting bracket.
3. Using tags created during disassembly, remove
plugs and connect hoses to the traction pump and
reel pump.
4. Install the drive shaft on the traction pump input
shaft and engine.
5. Replace the hydraulic oil filter and fill the hydraulic
tank with hydraulic oil.
6. Install the seat and seat pan.
7. Start the engine and check component operation.
If necessary, performing tests and checks as
described in Section 10O.

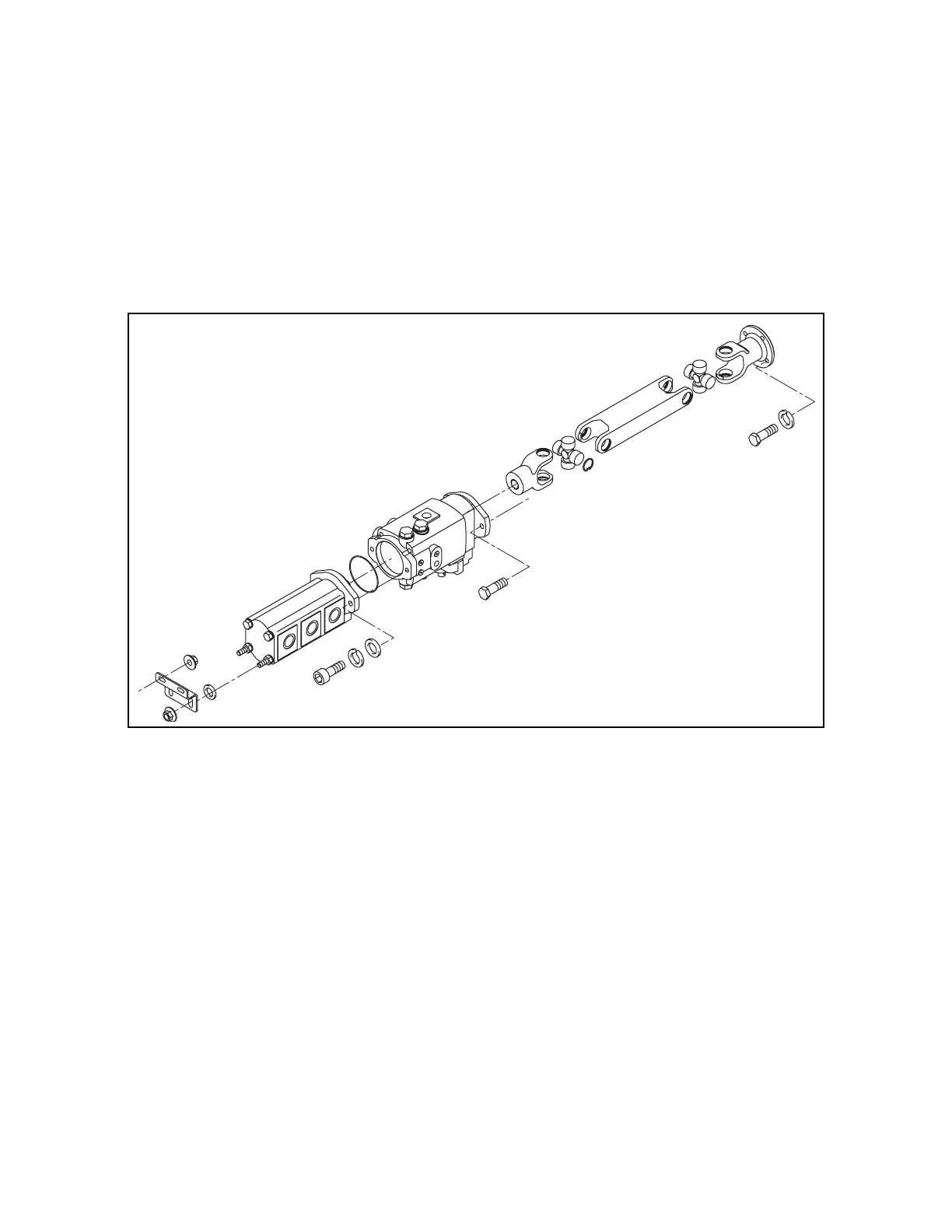

Figure 8D-14. Pump Installation
Splined
Slip Yoke
Drive Shaft
Traction Pump
Reel Pump
