OPTIONS
13C-17
CLUTCH ASSEMBLY
Clutch repair is limited to replacing worn or broken
springs and/or clutch pins (Figure 13C-15).
When working on the clutch, place it pulley side down
on a work bench.

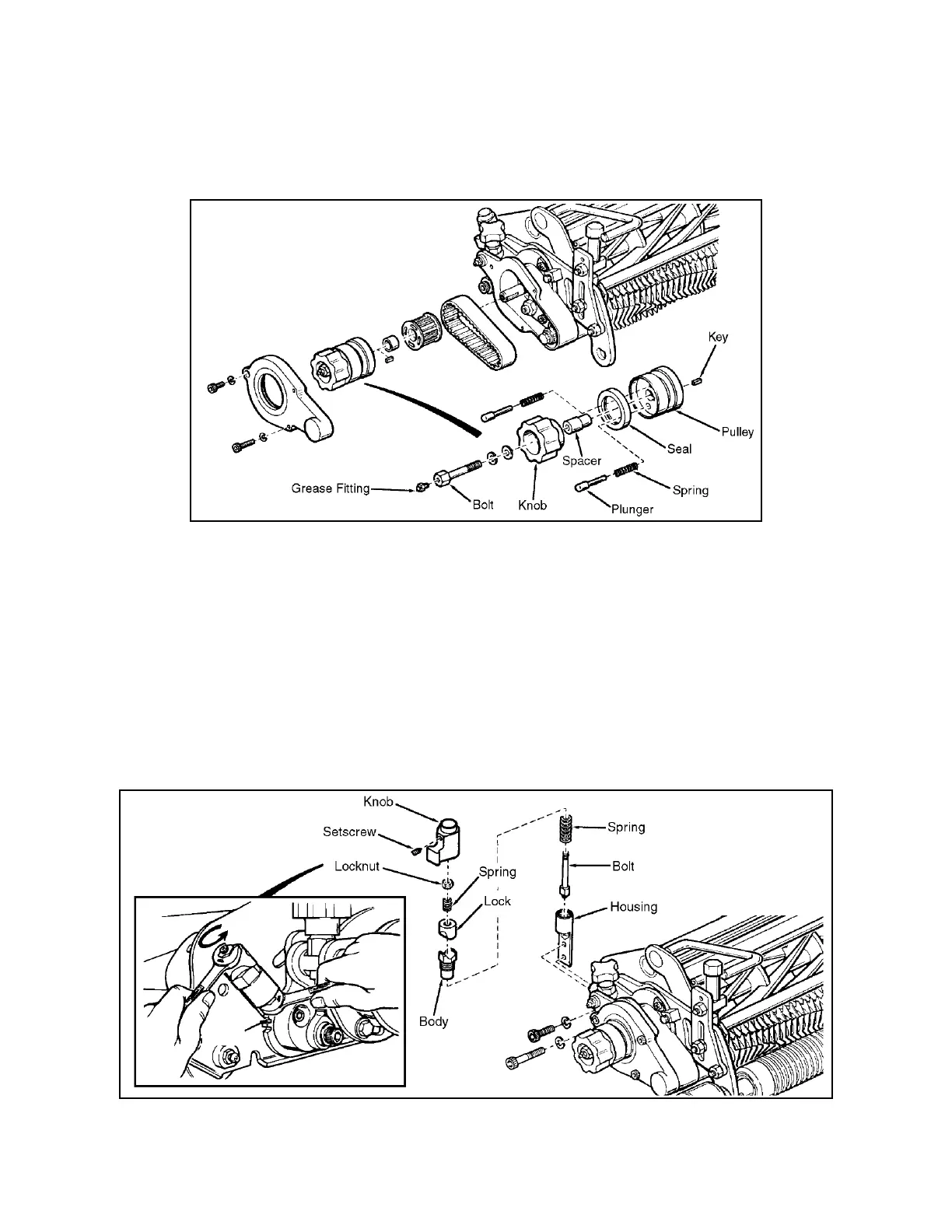

Figure 13C-15. Clutch Assembly
QUICK HEIGHT ADJUST ASSEMBLY
Repair
Inspect all parts and replace any that are questionable.
Follow the disassembly/reassembly as shown in
Figure 13C-16.
Adjustment
Each notch the quick height adjust is moved changes
the groomer shaft 1/8 inch (3.18 mm).
If the control is loose when locked in a notch, proceed
as follows:
1. Remove the knob by loosening the setscrew.
2. Using an open end wrench hold bolt. Turn the nut
on top counterclockwise until control is tight in
notch.
3. Install the knob and tighten the setscrew.
Figure 13C-16. Quick Height Adjustment
