HYDRAULICS
8J-37

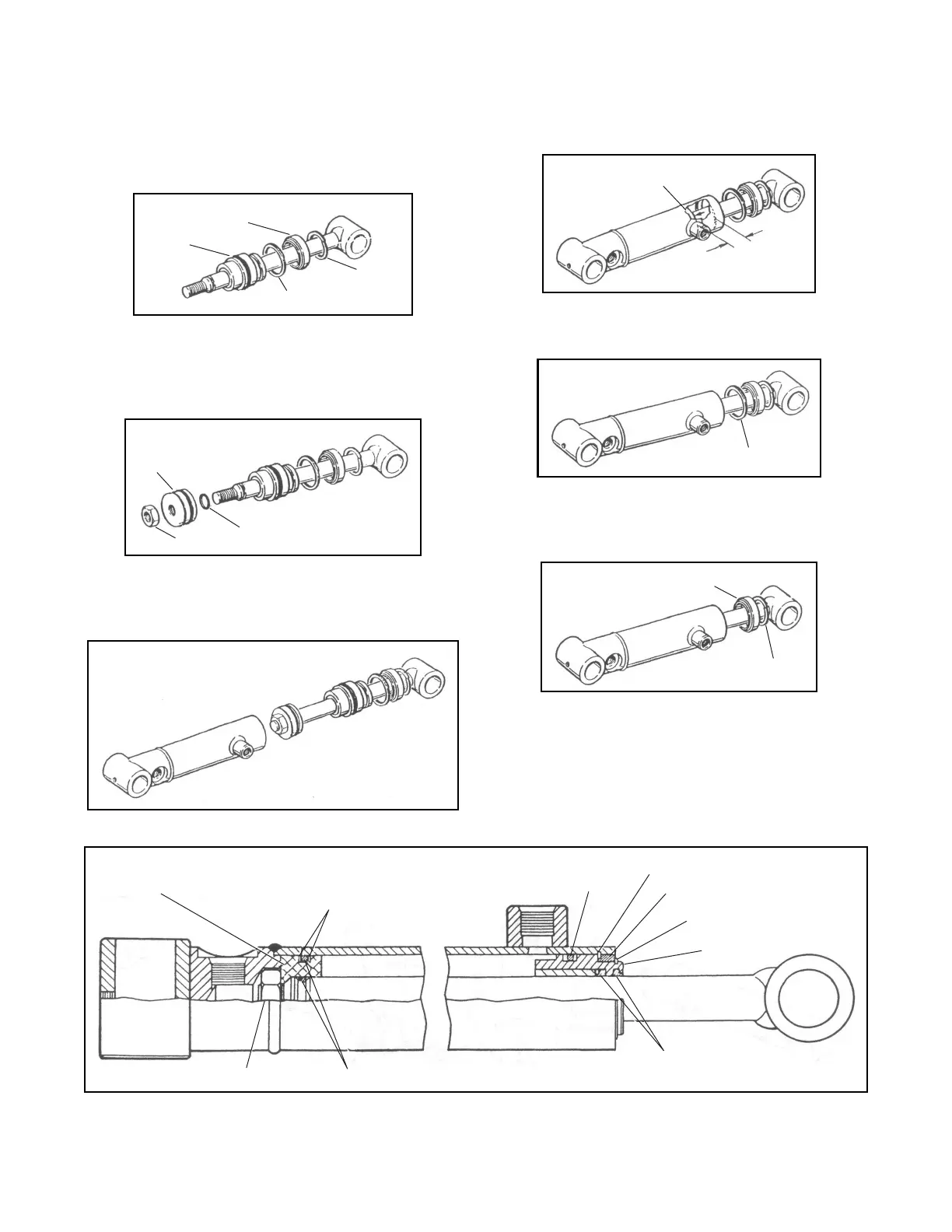

4. Assemble the cylinder.
a. Place a small lock ring, nylon spacer, large
lock ring, and rod guide onto the rod
(Figure 8J-9).
Figure 8J-9. Nylon spacer, Lock Ring, and Rod
Guide
b. Install the rod o-ring. Screw the piston onto the
rod and secure with a nut (Figure 8J-10).
Figure 8J-10. O-ring, Piston, and Nut
c. Insert the rod assembly into the cylinder body
(Figure 8J-11).
Figure 8J-11. Rod Assembly
d. Push the rod guide into the cylinder approxi-
mately 0.75 in (Figure 8J-12).
Figure 8J-12. Rod Guide
e. Install the large snap ring (Figure 8J-13).
Figure 8J-13. Lock Ring
f. Pull the rod and guide out. Install a spacer and
small snap ring (Figure 8J-14).
Figure 8J-14. Nylon Spacer and Snap Ring
INSTALLATION
See Section 9E and Figure 8J-15.
Figure 8J-15. Seal Kit Installation
Nylon Spacer
Lock Ring
Lock Rin
Rod Guide
Nut
Piston
O-Ring
Rod
Assembly
3/4"
Rod Guide
Lock Ring
Nylon Spacer
Lock Ring
Piston
Backup
Washers
Nut
O-Ring
Rod O-Ring
Lock Ring
Nylon Spacer
Wiper
Lock Ring
Rod Guide
