CONTROLS
2D-11
SECTION 2D. GAUGES AND INSTRUMENTS
REPAIR
NOTE:
Refer to Section 10 for test and repair procedures
of switches.
Instrument repair is limited to replacement of the com-
ponents. Replace the components using the following
procedures (Figure 2D-1).
1. Disconnect the battery ground (black) cable.
2. Label the wires for proper identification and dis-
connect wiring.
3. Remove the attached hardware and replace the
component.
4. Using the labels created in Step 2, install the hard-
ware and connect the wiring.
5. Connect the battery ground (black) cable.

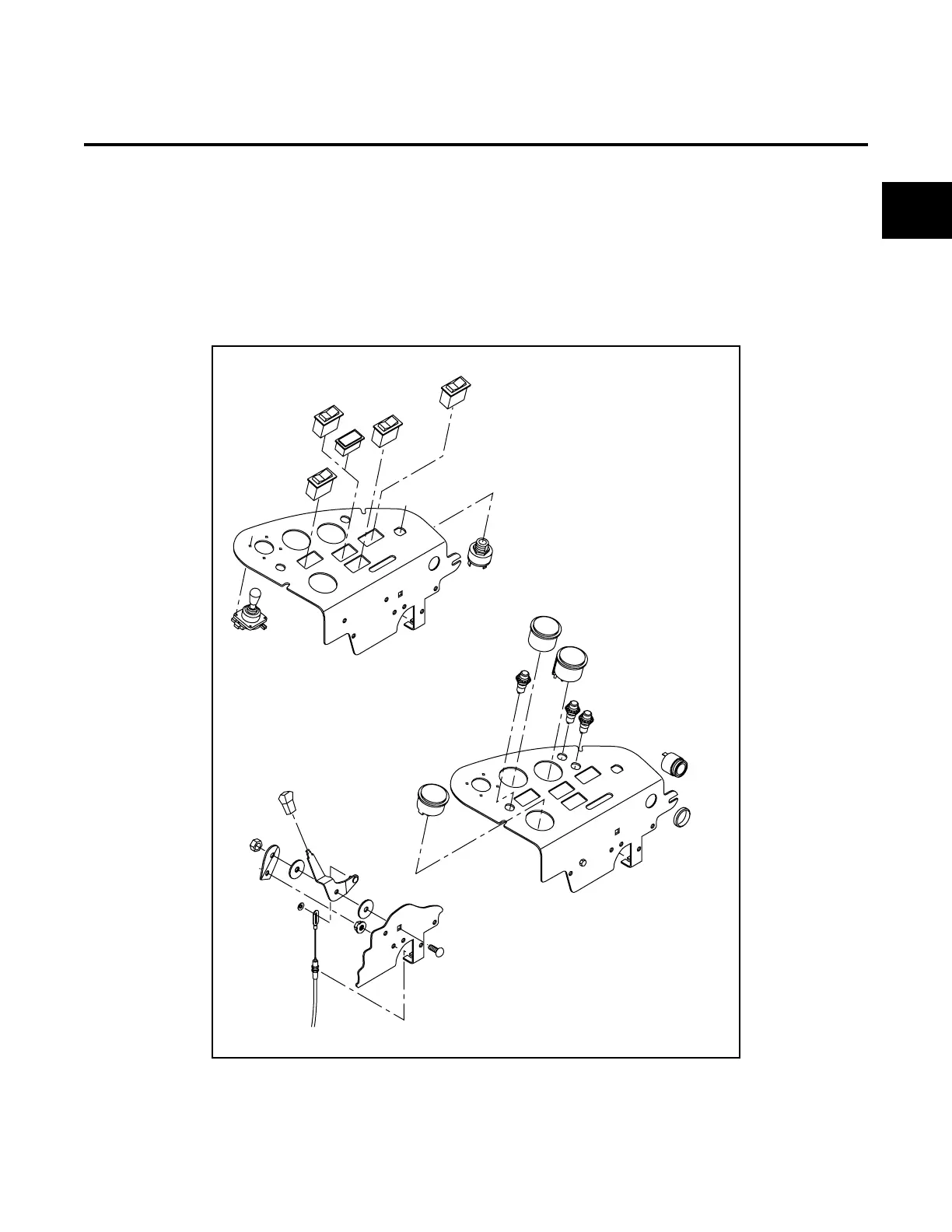

Figure 2D-1. Gauges and Instrument
Reel
Switch
4WD
Switch
Horn
Switch
Hydraulic
Oil
Temperature
Gauge
Ignition
Switch
Hour
Meter
Light Switch
Joystick
Throttle
Horn
Engine Oil
Brake Light
Volt Meter
