CONTROLS
2C-10
7. With the lift arm at 30°, adjust the switch
(Figure 2C-13) until the contacts open. Secure the
switch to maintain the setting.
8. Manually lower the lift arm. The switch contact
should close when the lift arm drops below 30°
(Figure 2C-13).

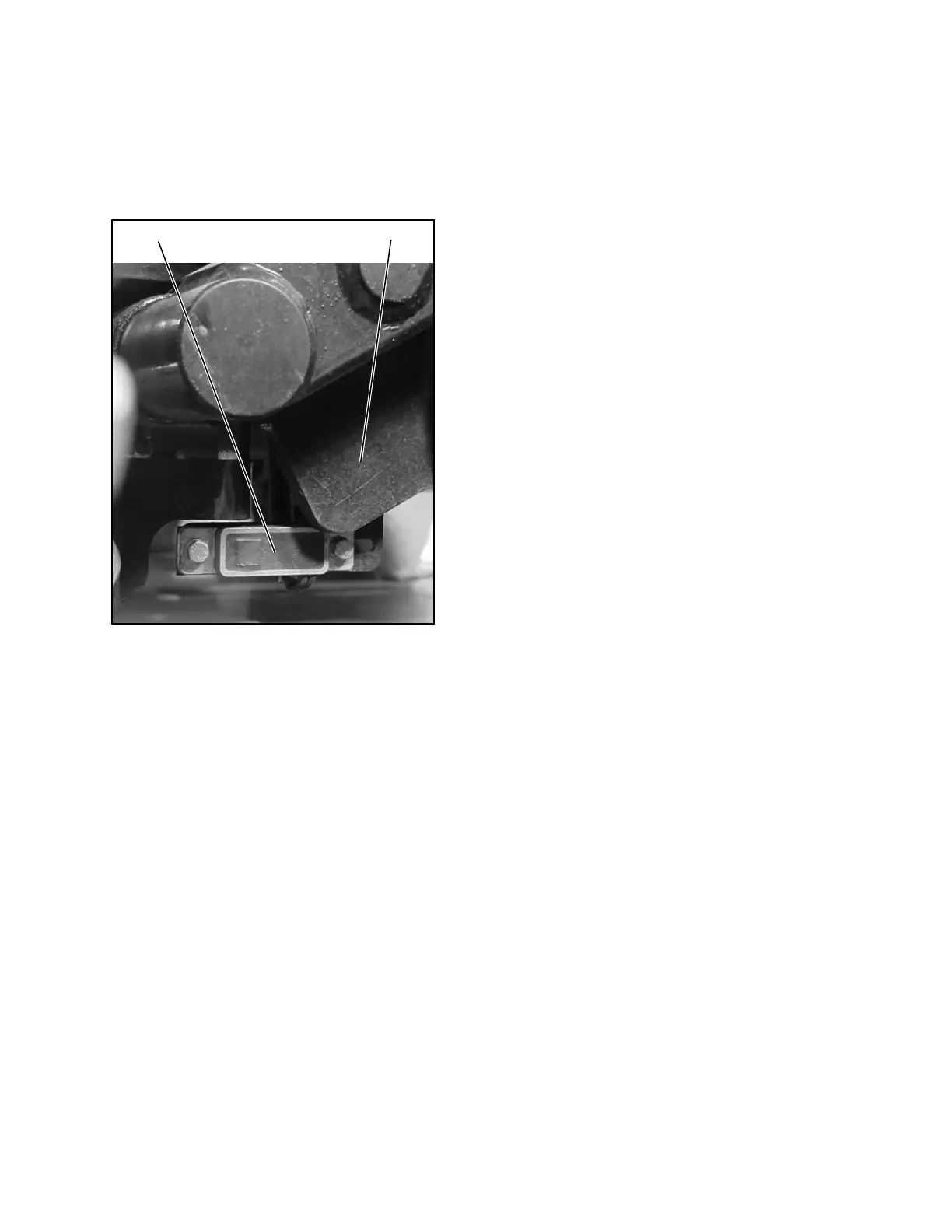

Figure 2C-13. Lift Switch Mounting
Lift-Limit Switch
Lift Arm
