ATTACHMENTS
12F-21
MAGKNIFE INSTALLATION
NOTE:
Contact your local authorized Jacobsen dealer for
availability and installation of the Jacobsen
Magknife bedknife system.
The Magknife bedknife system uses powerful magnets
and dowel pins to secure the bedknife to the bedknife
shoe. Replace the existing bedknife shoe with the
Magknife shoe and install as described in Reel Reas-
sembly section.
The bedknife can be installed on the bedknife shoe
using locking sheetmetal pliers.
1. Clean any dirt and debris from the bedknife shoe.
2. Grip the bedknife using locking sheetmetal pliers
(Figure 12F-5).

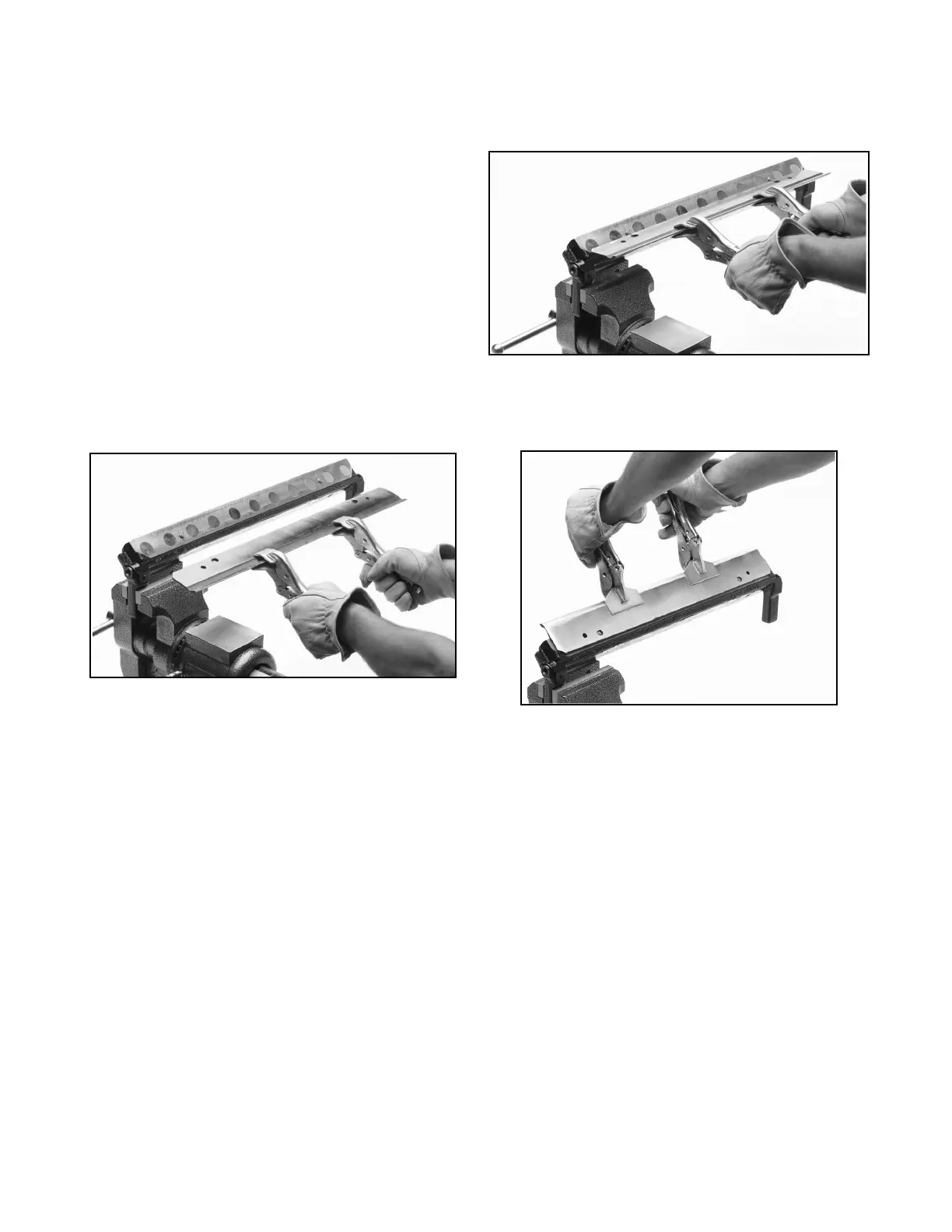

Figure 12F-5. Locking Sheetmetal Pliers
3. Position the bedknife for installation on the bed-
knife shoe and over the dowel pins (Figure 12F-6).
Figure 12F-6. Position Bedknife
4. Using the locking pliers, install the bedknife over
the dowel pins and onto the magnets
(Figure 12F-7).
Figure 12F-7. Install Bedknife
