CUTMASTER 40mm
OPERATION 4T-4 Manual 0-5085

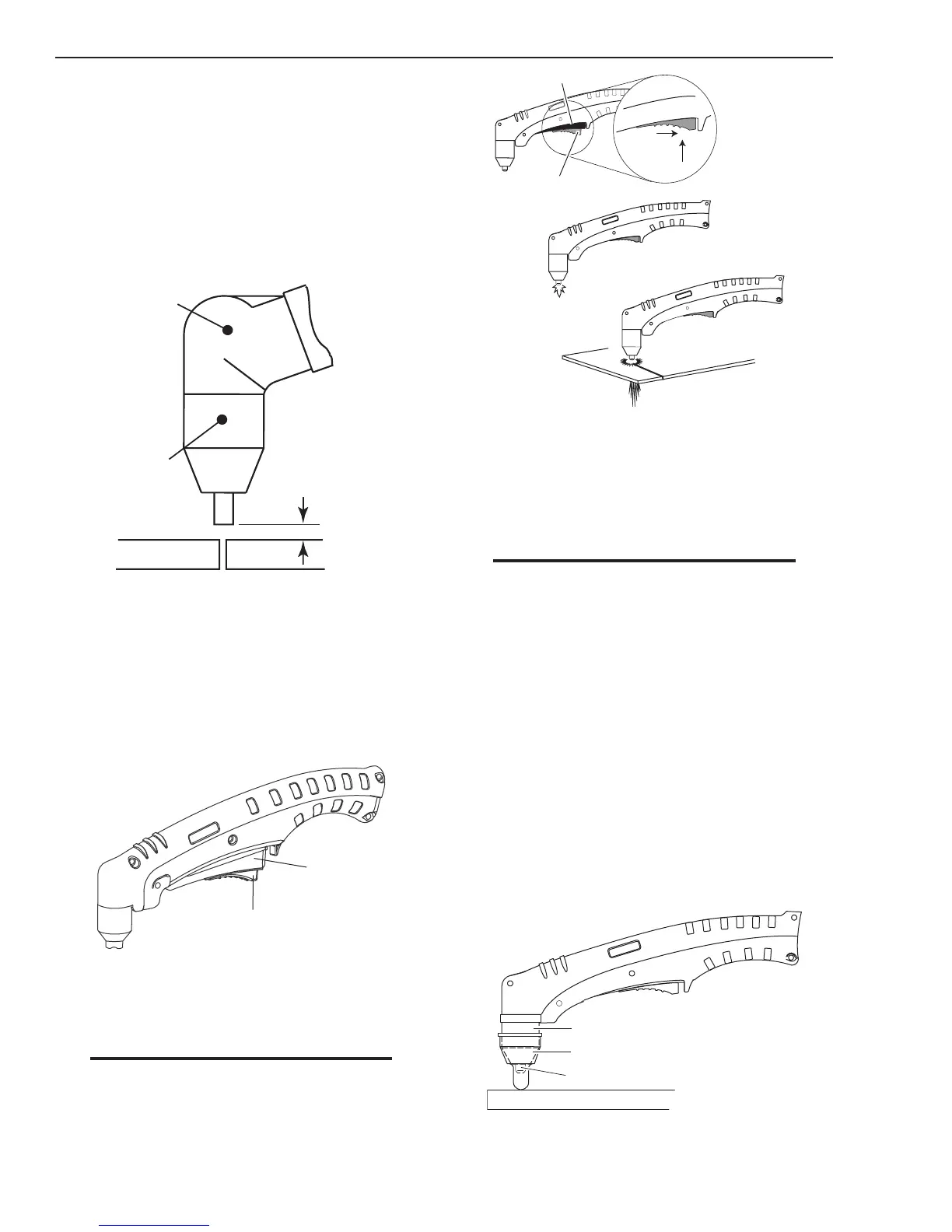

2. Depending on the cutting operation, do one
of the following:
a. For edge starts, hold the torch perpen-
dicular to the workpiece with the front
of the tip on the edge of the workpiece
at the point where the cut is to start.
b. For standoff cutting, hold the torch 1/8
- 3/8 in (3-9 mm) from the workpiece as
shown below.
A-00024_AB
Shield Cup
Torch
Standoff Distance
1/8" - 3/8" (3 - 9mm)
Standoff Distance
3. Hold the torch away from your body.
4. Slide the trigger release toward the back
of the torch handle while simultaneously
squeezing the trigger. The pilot arc will
start.
A-02986
Tr igger
Tr igger Release
5. Bring the torch within transfer distance to
the work. The main arc will transfer to the
work, and the pilot arc will shut OFF.
NOTE
The gas preflow and postflow are a charac-
teristic of the power supply and not a func-
tion of the torch.
3
4
Art # A-03383
Tr igger
2
1
Tr igger Release
6. Cut as usual. Simply release the trigger
assembly to stop cutting.
7. Follow normal recommended cutting
practices as provided in the power supply
operator's manual.
NOTE
When the shield cup is properly installed,
there is a slight gap between the shield cup
and the torch handle. Gas vents through
this gap as part of normal operation. Do
not attempt to force the shield cup to close
this gap. Forcing the shield cup against
the torch head or torch handle can damage
components.
8. For a consistent standoff height from the
workpiece, install the standoff guide by
sliding it onto the torch shield cup. Install
the guide with the legs at the sides of the
shield cup body to maintain good visibility
of the cutting arc. During operation, posi-
tion the legs of the standoff guide against
the workpiece.
Shield Cup
Workpiece
Standoff Guide
Art # A-04034
Torch Tip
To Next Page
