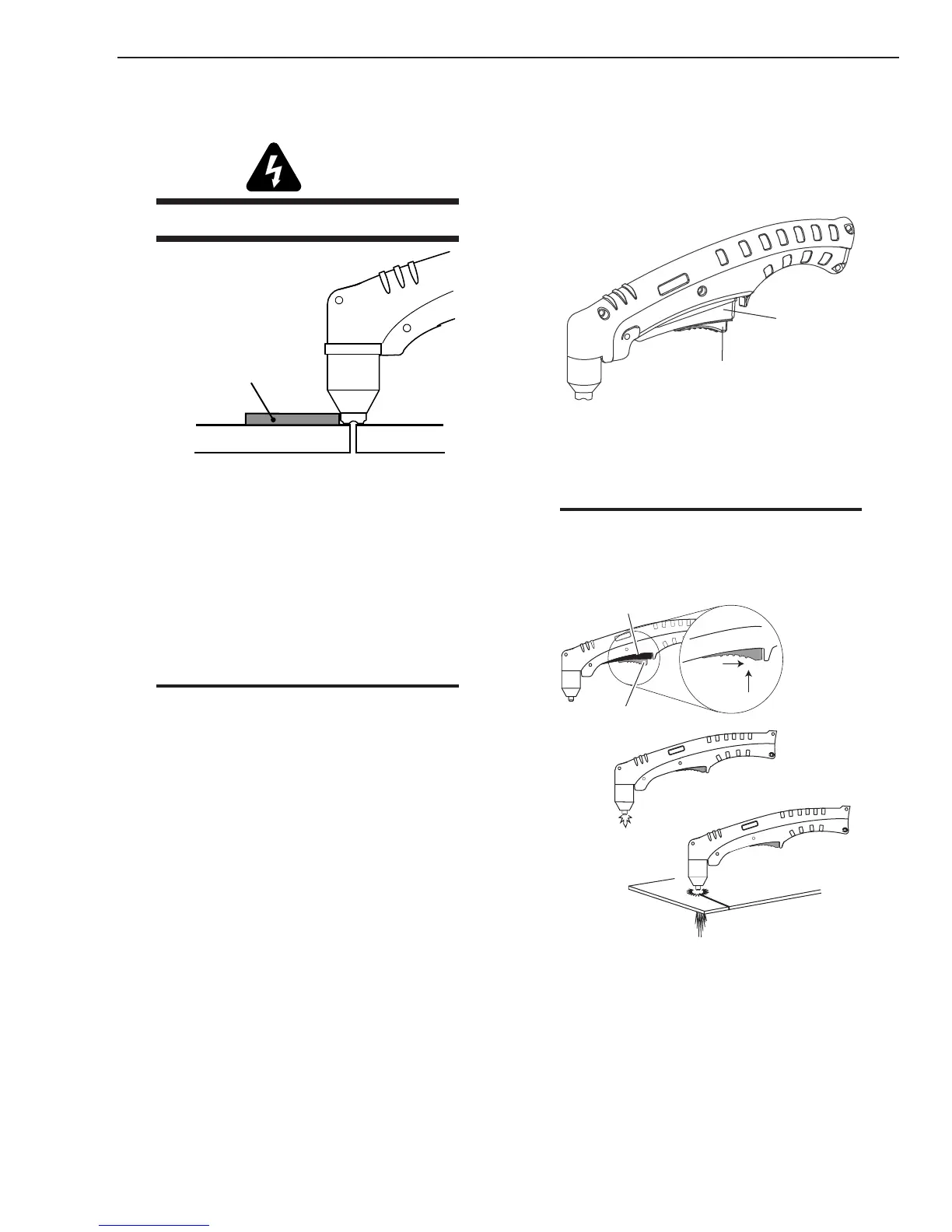

CUTMASTER 40mm
Manual 0-5085 4T-5 OPERATION
Shield Cup With Straight Edge
The drag shield cup can be used with a non conduc-
tive straight edge to make straight cuts by hand.
WARNING
The straight edge must be non - conductive.
A-03539
Non-Conductive
Straight Edge
Cutting Guide
Using Drag Shield Cup With Straight Edge
The crown shield cup functions best when cutting
3/16 inch (4.7 mm) solid metal with relatively
smooth surface.
Drag Cutting With a Hand Torch
Drag cutting works best on metal 1/4" (6 mm) thick
or less.
NOTE
Drag cutting can only be performed at 60
amps or less.
For best parts performance and life, always
use the correct parts for the type of opera-
tion.
1. Install the drag cutting tip and set the out-
put current.
2. The torch can be comfortably held in one
hand or steadied with two hands. Position
the hand to press the Trigger on the torch
handle. With the hand torch, the hand may
be positioned close to the torch head for
maximum control or near the back end for
maximum heat protection. Choose the
holding technique that feels most comfort-
able and allows good control and move-
ment.
4. Keep the torch in contact with the work-
piece during the cutting cycle.
5. Hold the torch away from your body.
6. Slide the trigger release toward the back
of the torch handle while simultaneously
squeezing the trigger. The pilot arc will
start.
A-02986
Tr igger
Tr igger Release
7. Bring the torch within transfer distance to
the work. The main arc will transfer to the
work, and the pilot arc will shut OFF.
NOTE
The gas preflow and postflow are a charac-
teristic of the power supply and not a func-
tion of the torch.
3
4
Art # A-03383
Tr igger
2
1
Tr igger Release
8. Cut as usual. Simply release the trigger
assembly to stop cutting.
9. Follow normal recommended cutting
practices as provided in the power supply
operator's manual.
