Thermal Dynamics PAK 200 - Power Supply Rear Panel Features

SPECIFICATIONS 2-4 Manual 0-5057
PAK 200

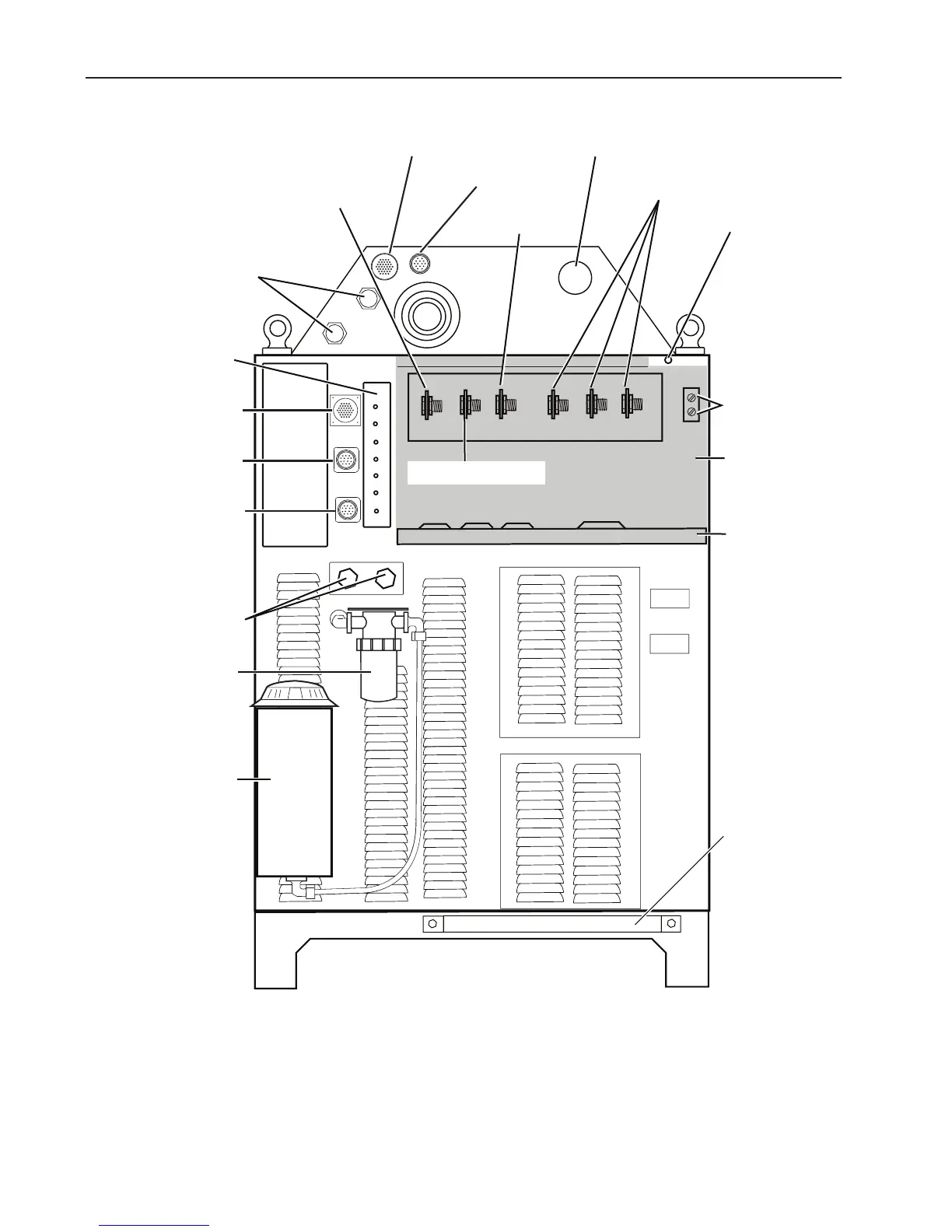

2.08 Power Supply Rear Panel Features
Terminal Cover
Support Panel
Coolant Tank
Coolant Filter
Coolant Connections
Input Power
Terminals
Pilot (Pos)
Terminal
Circuit Breaker Panel
Terminal Cover
AC Power Lamp
Ground Terminals
Gas Control Connector
RETURN
SUPPLY
Art # A-08378
Torch Control Connection
Arc Starter Connector
Work Cable Terminal
Torch (Neg)
Terminal
Torch Leads Port
Gas Entry Ports
Gas Control Connector
Arc Starter
Connector
Leads
Bracket
