PARTS LIST 6-8 Manual 0-5057
PAK 200

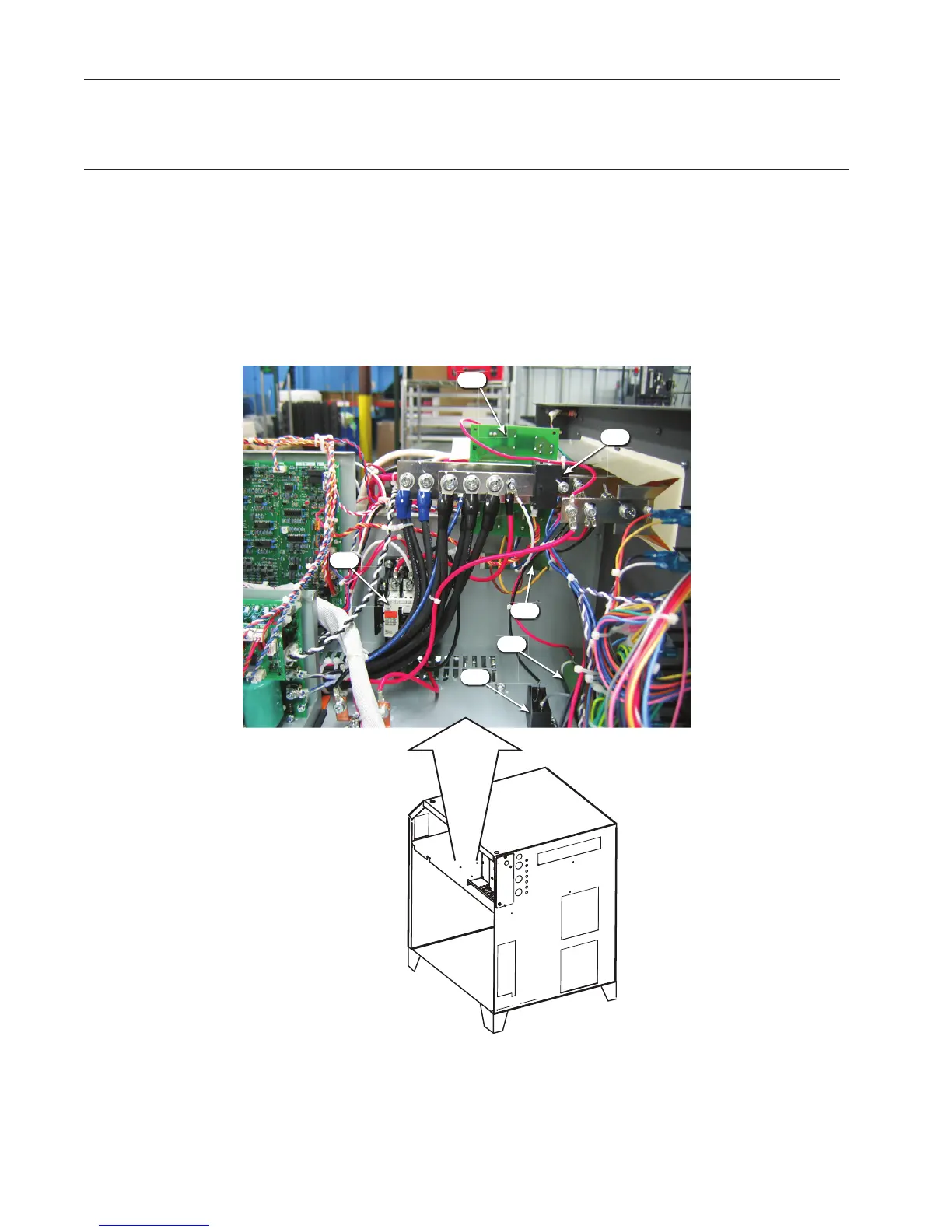

6.08 Power Supply Replacement Parts - Right Side
Item # Qty Description Ref. Des. Catalog #
1 1 Output Filter PC PCB8 9-9341
2 1 Sensor HCT2 9-9368
3 1 Magnetic Contactor, pilot MC2 9-9343
4 1 Resisto R6 9-9340
5 1 Resisto R9
6 1 Capacit C2
1
2
Art # A-08309
4
5
6
3
