Manual 0-5057 6-13 PARTS LIST
PAK 200

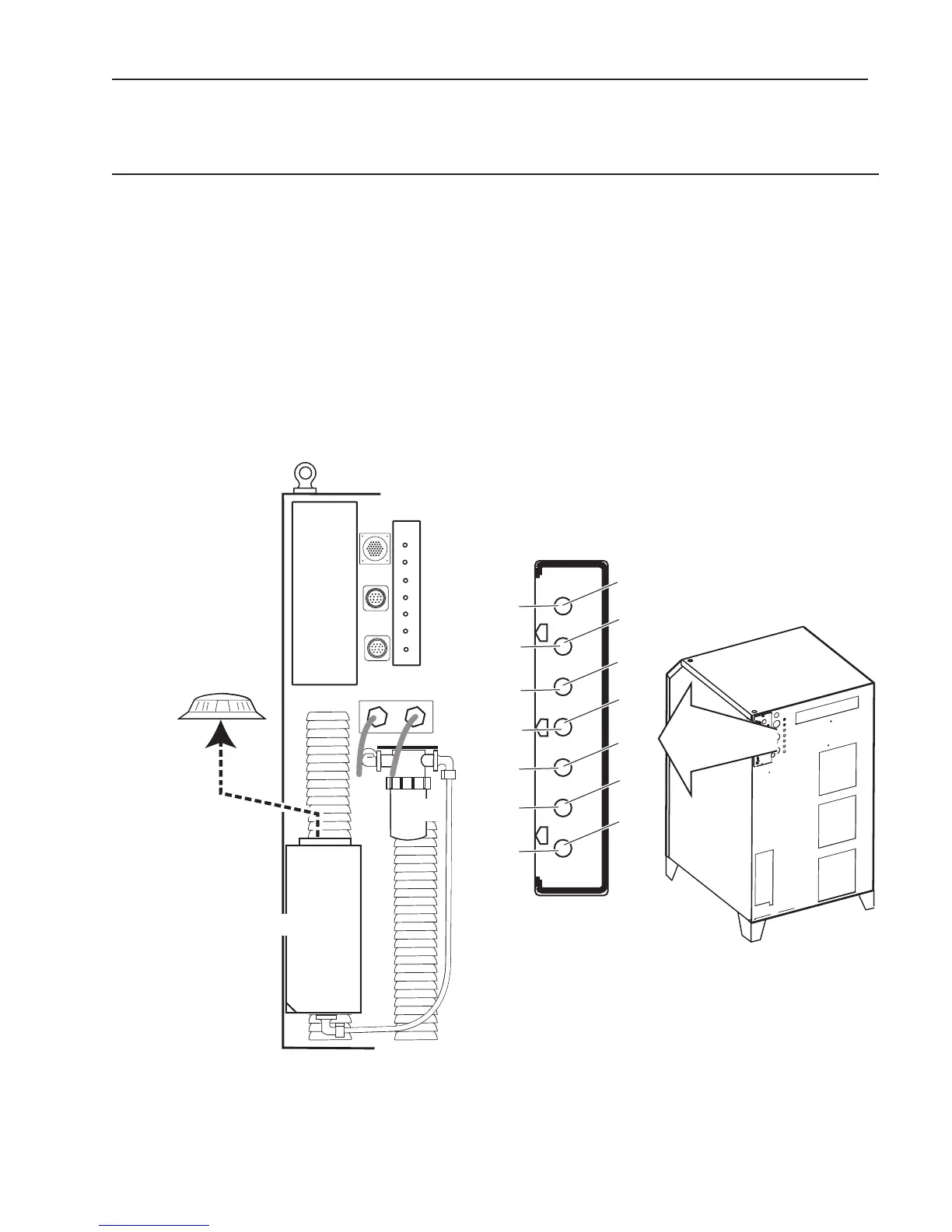

6.13 Power Supply Replacement Parts - Rear Panel
Item # Qty Description Breaker Rating Cicuit Rating Ref. Des. Catalog #
12 1 Circuit Breaker (RAS) 125V, 2.5 A 120VAC @ 1A CP2 9-9348
13 1 Circuit Breaker (’TDC’) 125V, 3.15A 24VAC @ 1A CP3 9-9349
14 1 Circuit Breaker (AGC) 125V, 10A 24VAC @ 5A CP4 9-9350
15 1 Circuit Breaker (AGC) 125V, 2.5A 120VAC @ 1A CP5 9-9348
16 1 Circuit Breaker (AGC) 125V, 2.5A 15VDC @ 1A CP6 9-9348
17 1 Circuit Breaker (Pump) 250V, 10A 200VAC @ 3A CP7 9-9351
18 1 Circuit Breaker (Fan) 125V, 3.15A 24VDC @ 1A CP8 9-9349
1 Coolant Tank 9-5948
1 Tank Cap 8-5142
1 Filter, Coolant 8-4276
RAS
125V 2.5A
CCM
125V3.15A
GCM
125V 10A
GCM
125V2.5A
GCM
125V2.5A
PUMP
250V 10A
FAN
125V 3.15A
CIRCUIT
BREAKERS
J55
J59
J15
G
C
M
C
N
C
R
A
S
CP2
CP3
CP4
CP5
CP6
CP7
CP8
12
13
14
15
16
17
18
Art # A-06017_AC
RETURN
SUPPLY
Art # A-04932_AB
COOLANT
Coolant Tank
Tank Cap
Filter
