Manual 0-5057 3-17 INSTALLATION
PAK 200
3.12 Complete the Installation
1. Fill the coolant tank to the level shown, with Thermal Dynamics coolant. The coolant level is visible through
the translucent coolant tank. The amount of coolant required varies with torch leads length.
2. Replace the cap on the tank.
Coolant Capabiities
Cat. Number and Mixture Mixture Protects To
7-3580 ‘Extra-CoolTM’ 25 / 75 10° F / -12° C
7-3581 ‘Ultra-CoolTM’ 50 / 50 27° F / -33° C
7-3582 ‘Extreme-CoolTM’ Concentrat* -65° F / -51° C
RETURN
SUPPLY
RETURN
SUPPLY

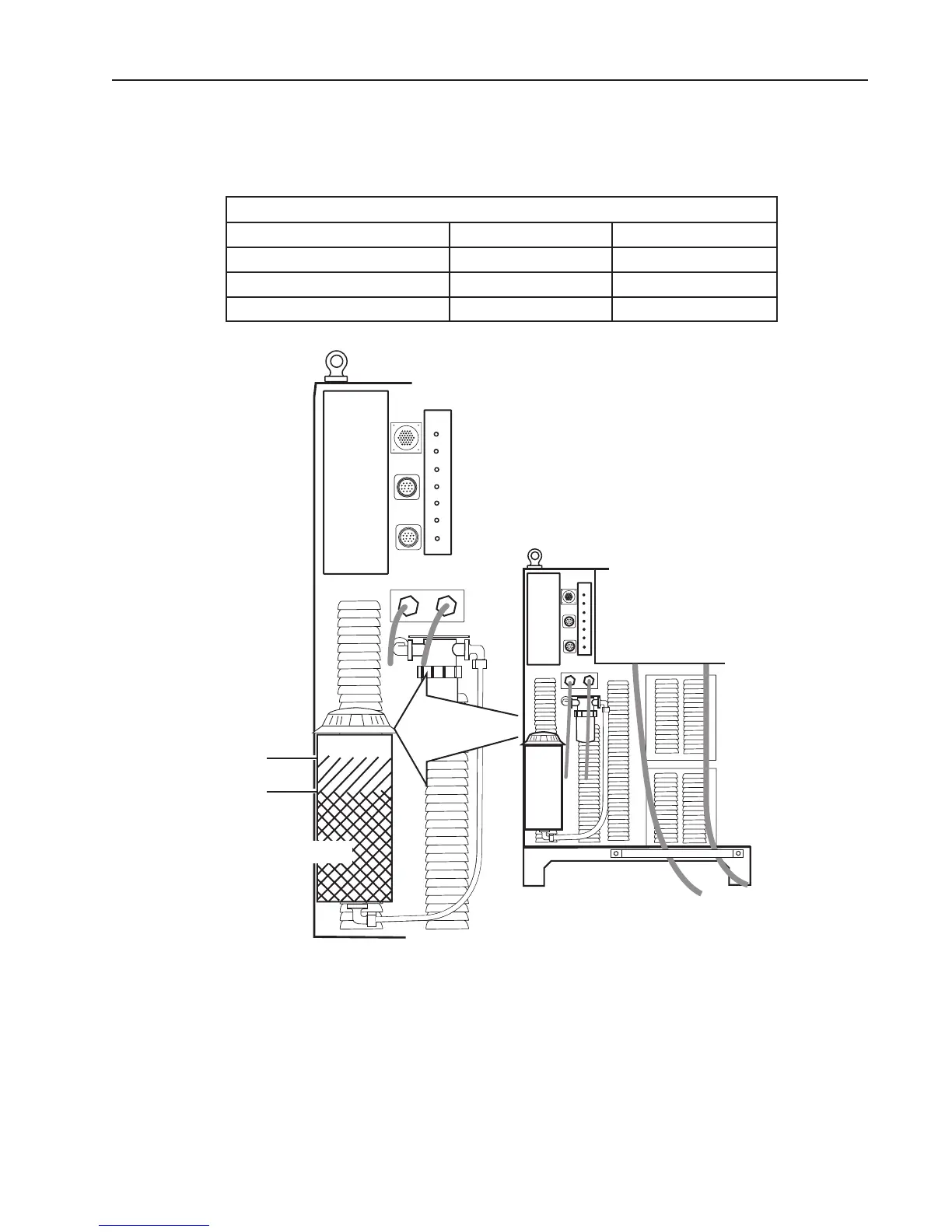

Art # A-04803
COOLANT
Fill Range
Coolant Tank
3. After the complete system has been installed, check that the coolant has been pumped through the system as
follows (see NOTE):
To Next Page
