Thermal Dynamics PAK 200 - Leads and Cables

PARTS LIST 6-4 Manual 0-5057
PAK 200

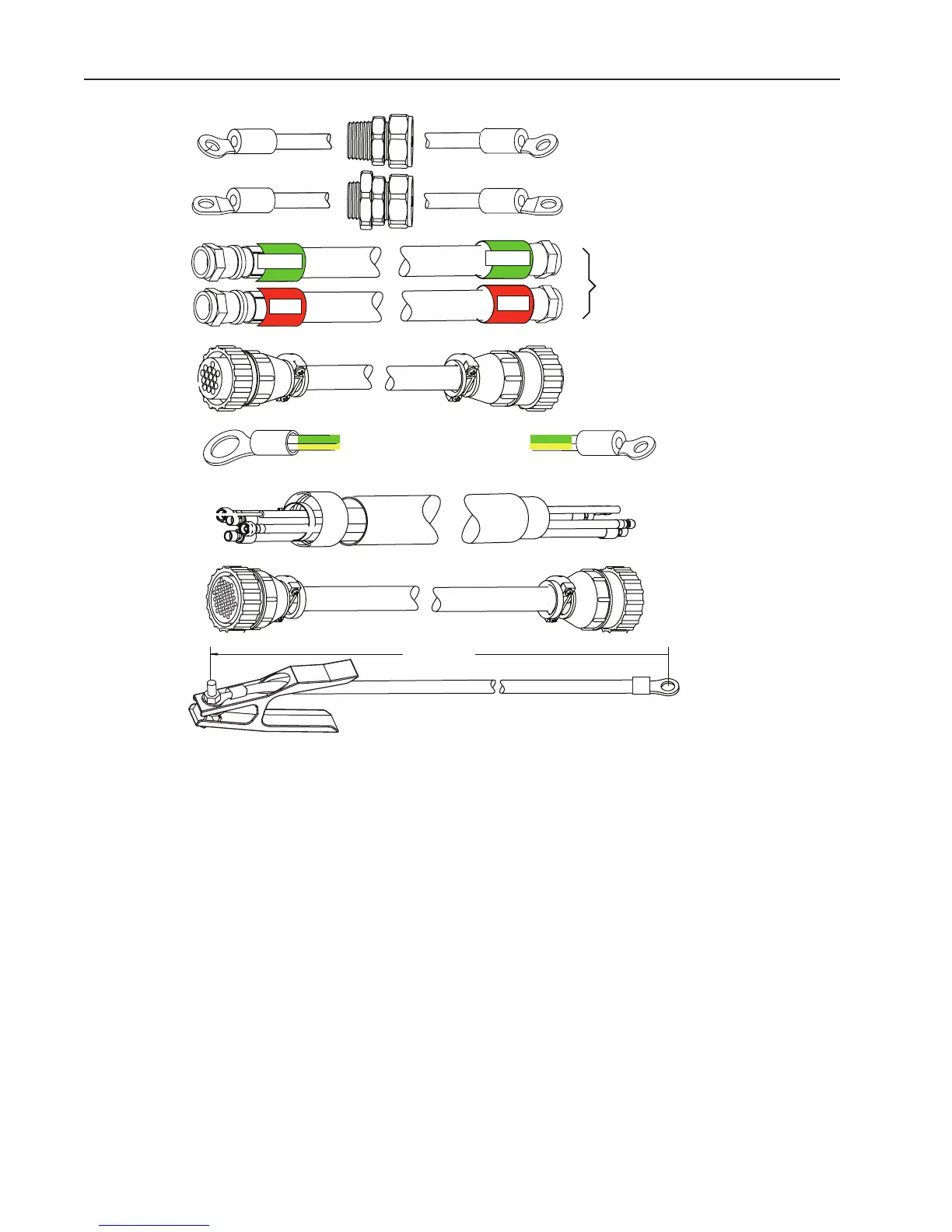

6.04 Leads and Cables
G
Torch Lead Set
Art # A-08377_AC
Green / Yellow #4 AWG
A
Green
Red
#8 AWG Cable
#1 AWG Cable
B
C
D
E
F
K
Work Cable
37
14
Coolant Leads, Power Supply
to Arc Starter
Pilot Return, Power Supply
to Arc Starter
Negative Lead, Power Supply
to Arc Starter
Control Cable, Power Supply
to Arc Starter
Ground Cable
O
Control Cable,
Power Supply to
Gas Control Module
Green
Red
4’ / 1.3 m
#1 AWG
