Manual 0-5057 6-3 PARTS LIST
PAK 200
6.03 Leads and Cables
Leads Catalog Numbers; PAK 200 Power Supply, PCH/M 200 Torch
Leads Length
Key Description
3 ft
1 m
10 ft
3.05 m
15 ft
4.5 m
25 ft
7.6 m
35 ft
10.6 m
50 ft
15.2 m
75 ft
22.8 m
100 ft
30.5 m
125 ft
38.1 m
A,B,C,D,E Supply Lead Set 4-3027
A Pilot Return Cable (only)
(4 ft / 1.2 m)
9-4890
B Negative Cable (only) 9-4892
C Hose, Coolant Supply (only) 9-4886
D Hose, Coolant Return (only) 9-4888
E Control Cable (only),
Power Supply
to Arc Starter (4 ft / 1.2 m)
9-4941
F Ground Wire (only), Power
Supply to Gas Control
Module, 4 ft / 1.2 m
9-4923
G Torch Lead Assembly 4-0014 4.0015 4-0016
K Control Cable, Power Supply
to Gas Control Module
9-9331
O Work Cable w/Clamp 9-0020
NOTE
Supply lead set includes Pilot Return Cable, Negative Cable, Coolant Supply & Return Hoses, and
Control Cable.
Primary power
Control
Cable
Ground
Cable
Work

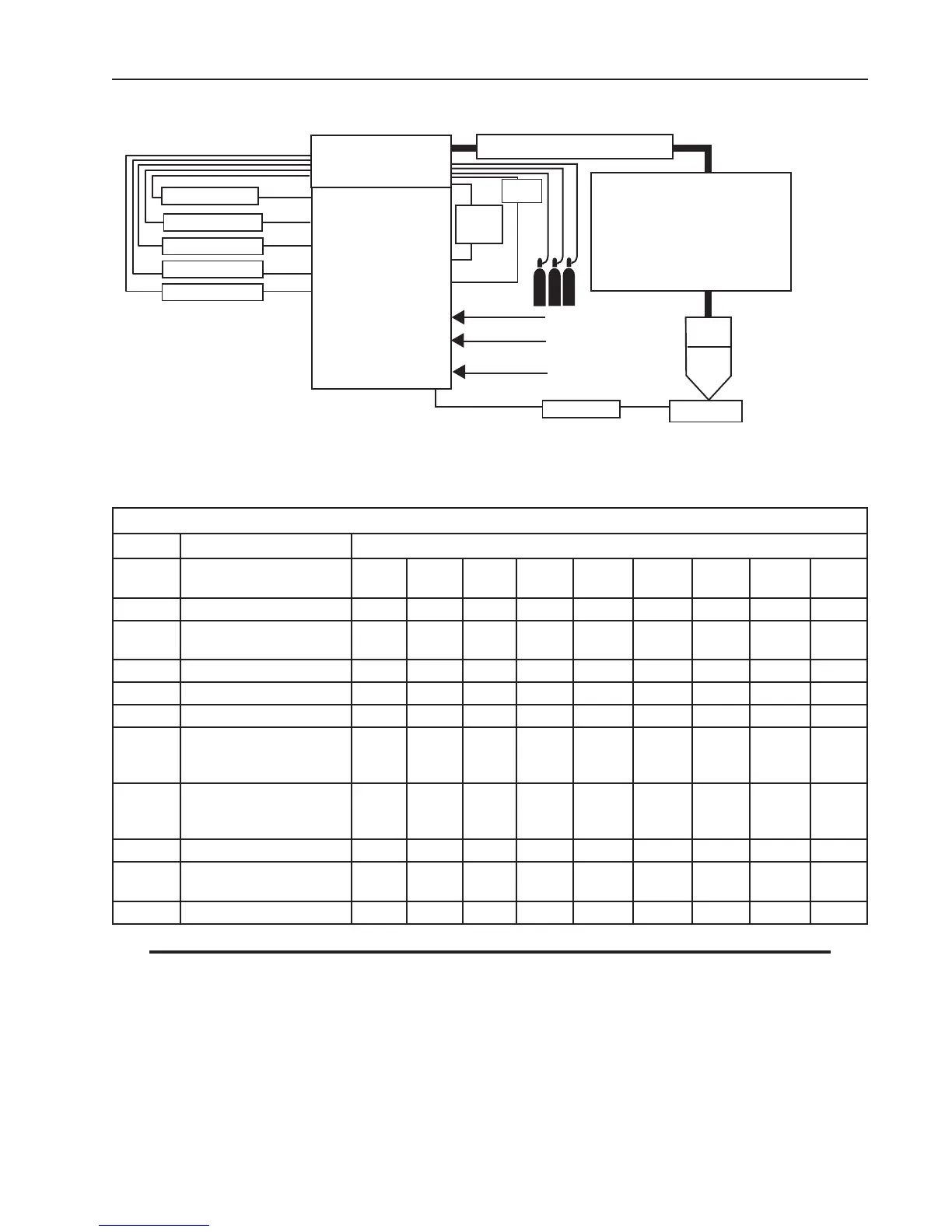

Art # A-08376_AB
Torch
Work Cable
PAK 200
Power Supply
Arc Starter /
Gas Control Module
(GCM-200)
Pilot Return
Negative
Coolant Supply
Coolant Return
Control Cable
Torch Lead Set
- Coolant Supply w/ Negative
- Coolant Return
- Pilot Return
- Plasma Gas
- Shield Gas
- Control Cable
Maximum Length 100’ / 30.5 m
Primary Ground
To Next Page
