Manual 0-5057 2-7 SPECIFICATIONS
PAK 200

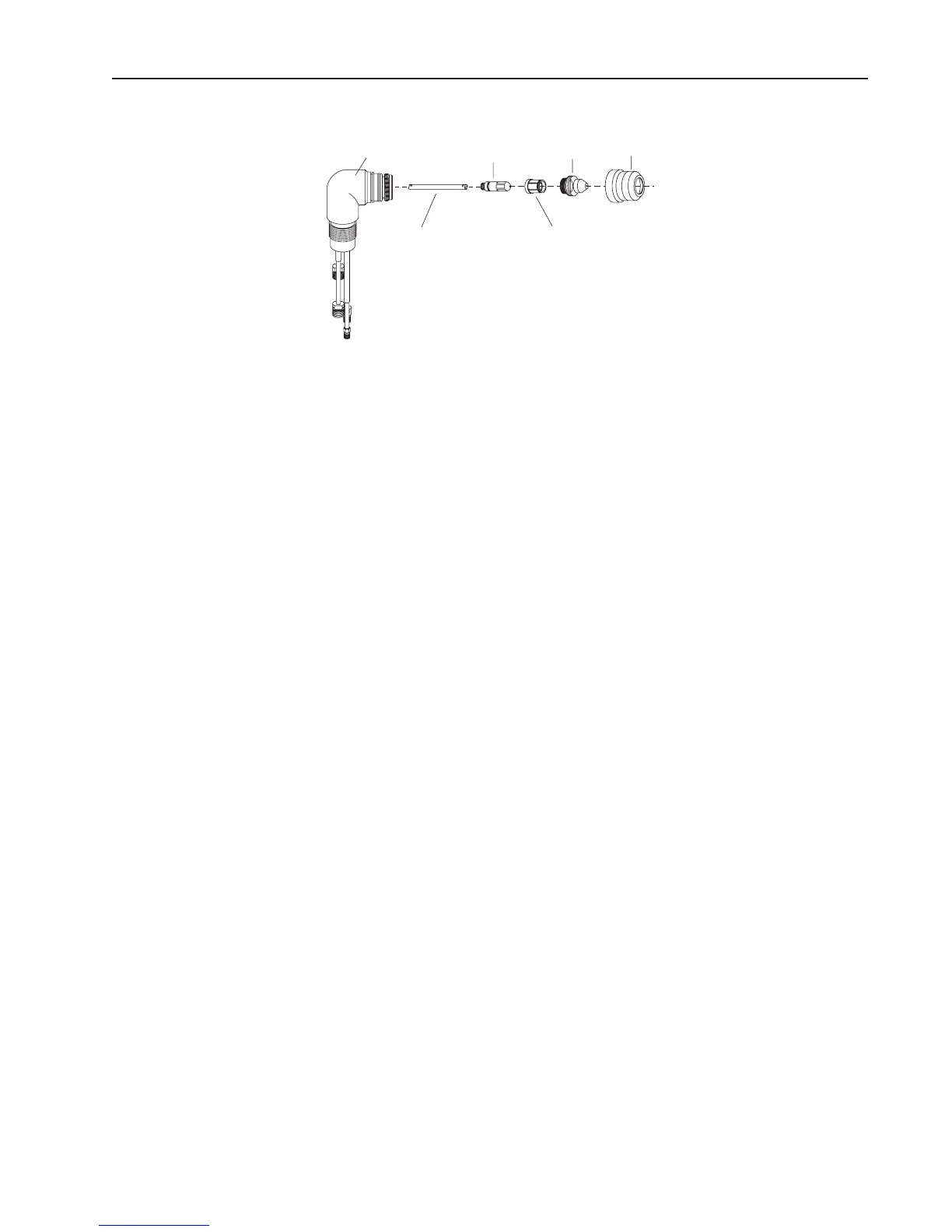

C. Torch Parts (Generic Parts Shown)
D. Parts - In - Place (PIP)
The torch is designed for use with a power supply which senses coolant return flow to confirm that torch
parts are in
place. If coolant return flow to the power supply is absent or insufficient the power supply will not provide
power to the
torch. Coolant leakage from the torch also indicates that torch parts are absent or installed improperly.
E. Type Cooling
Combination of gas stream through torch and liquid cooling.
Electrode
Shield Cup
Tip
Gas
Distributor
Torch Head
Water Tube Extension
(Gouging Only)
A-02188
To Next Page
