INSTALLATION 3-14 Manual 0-5057
PAK 200
4. Re-install the module top cover.

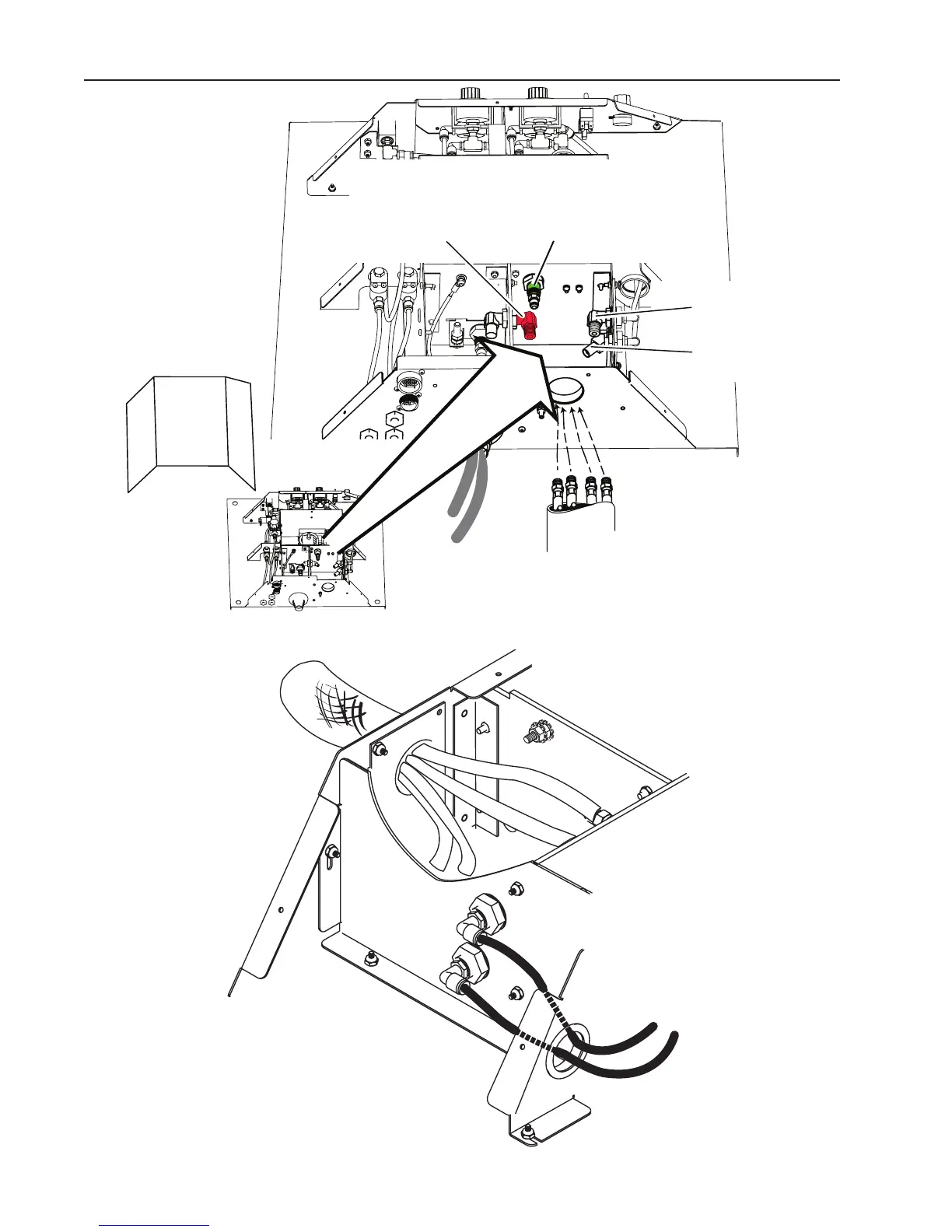

Art # A-08383
Coolant Supply
Connection (Tagged Green)
Coolant Return
Connection (Tagged Red)
Art # A-04832
Plasma Gas
Connection
Shield Gas
Connection
Torch Leads
