APPENDIX 2:
Control Cable Pinouts

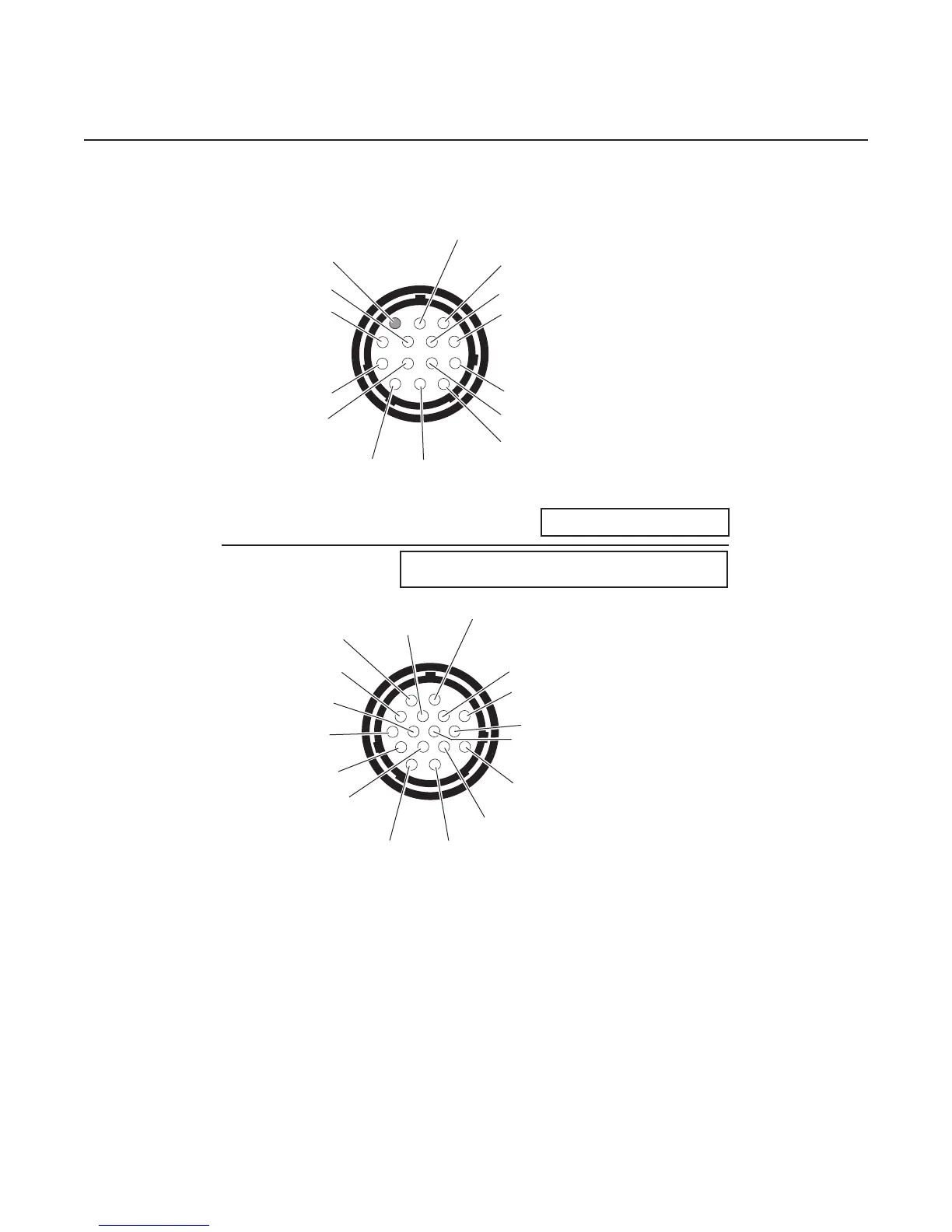

Power Supply J59 to Arc Starter / Gas Control
Console J58
3
9: 120 VAC RET
5
1 - Jumpered to 4
6
7 - 120 VAC
8
10
13
14
11
12
Art # A-04849
2: Ground
POWER SUPPLY J59
ARC STARTER / GAS CONTROL MODULE J58
3
5
4
1
6
8
10
16
15
11
12
14
13
4 - Jumpered to 1
2: Ground
9: 120 VAC RET
7 - 120 VAC
