Refrigeration Maintenance

127

1. 100 Microns

2. 500 Microns

3. 1000 Microns

4. 2500 Microns

5. 5000 Microns

6. 20,000 Microns

7. Atmospheric Pressure

8. Calibration Adjustment Screw

9. Example: Meter needle shown at calibration position

when Calibration Standard specifies 0.15 mm Hg.

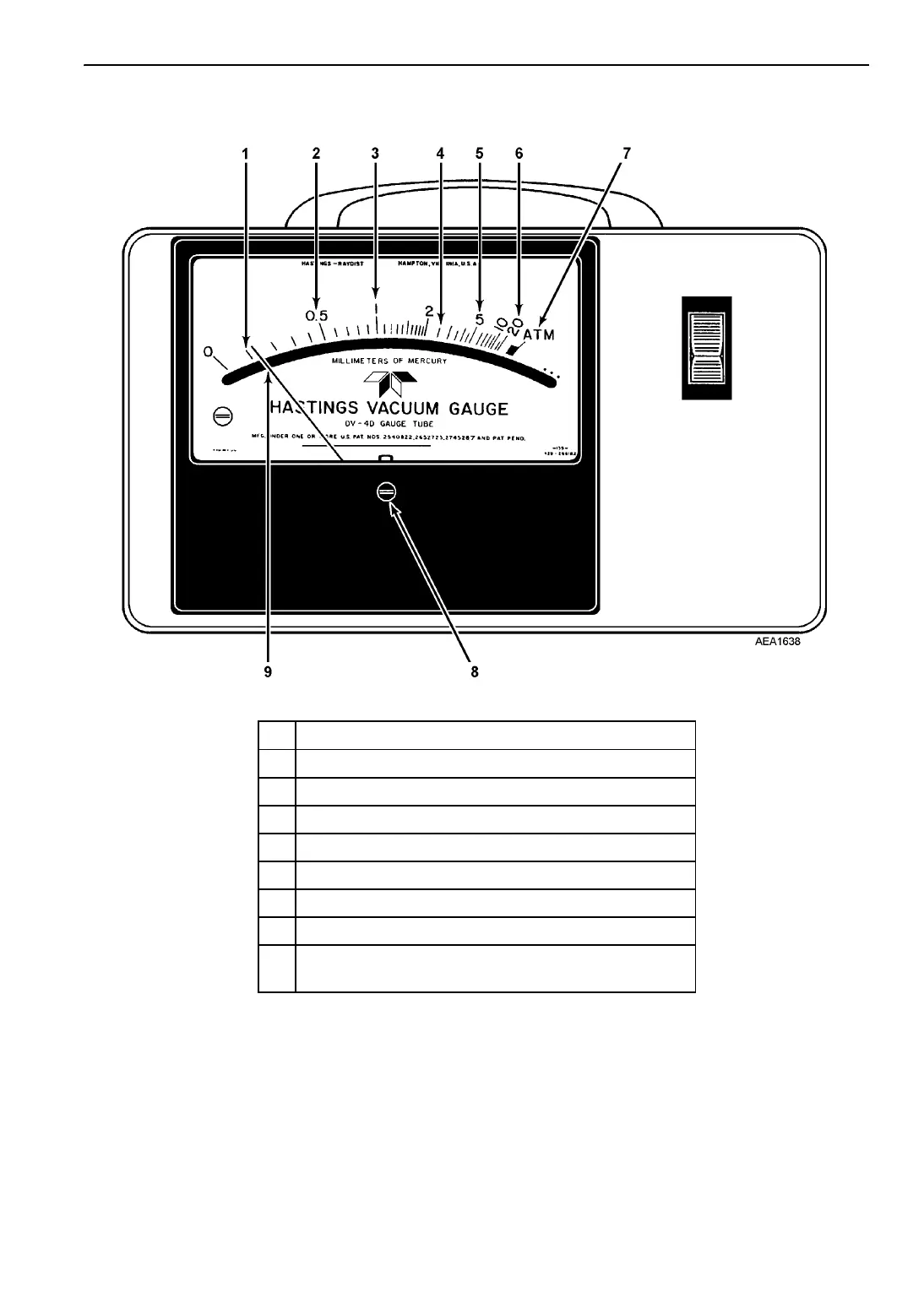

Figure 151: Vacuum Gauge
