Engine Maintenance
124
Alternator Adjustment
Shims may be used to facilitate alignment during
alternator installation. Use adjustment strap and
eye bolt to ensure belt tension reading is between
55 to 60 on TK gauge.
NOTE: It is critical that the belt
be correctly seated in pulley. First
and last edge of grooves are
higher to improve seating of
belts.
1
2
3
4
5
6
7
8
AGA643
1. Mounting Bracket 5. Eye Bolt
NOTE: Use the hole on the alternator that allows proper
belt tension and shortest length of eye bolt extended.
2. Shims 6. Alternator
3. Adjusting Bracket 7. Pivot Bolt
4. Locknuts 8. Spacer

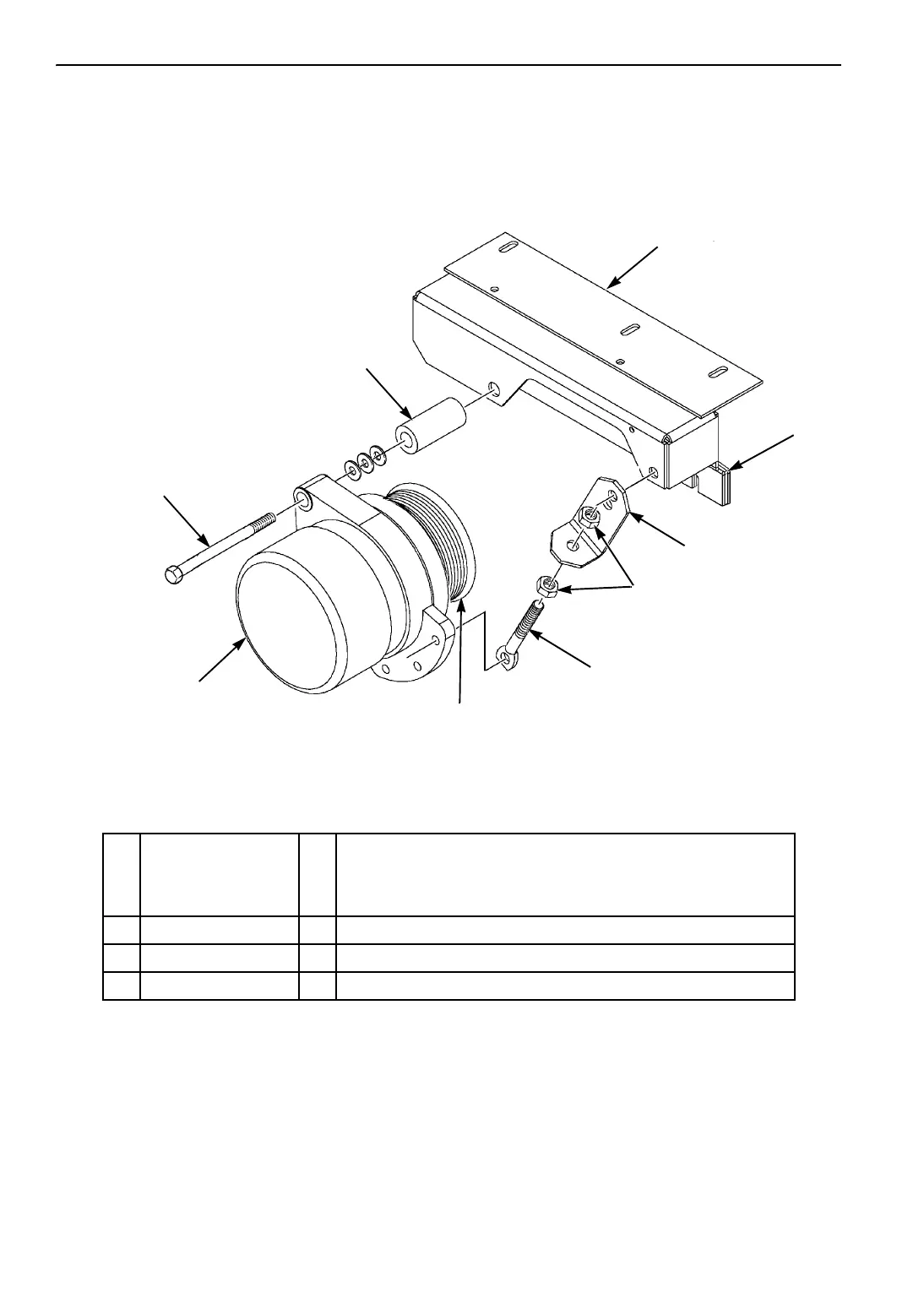

Figure 149: Alternator Mounting and Belt Tension Adjustment
