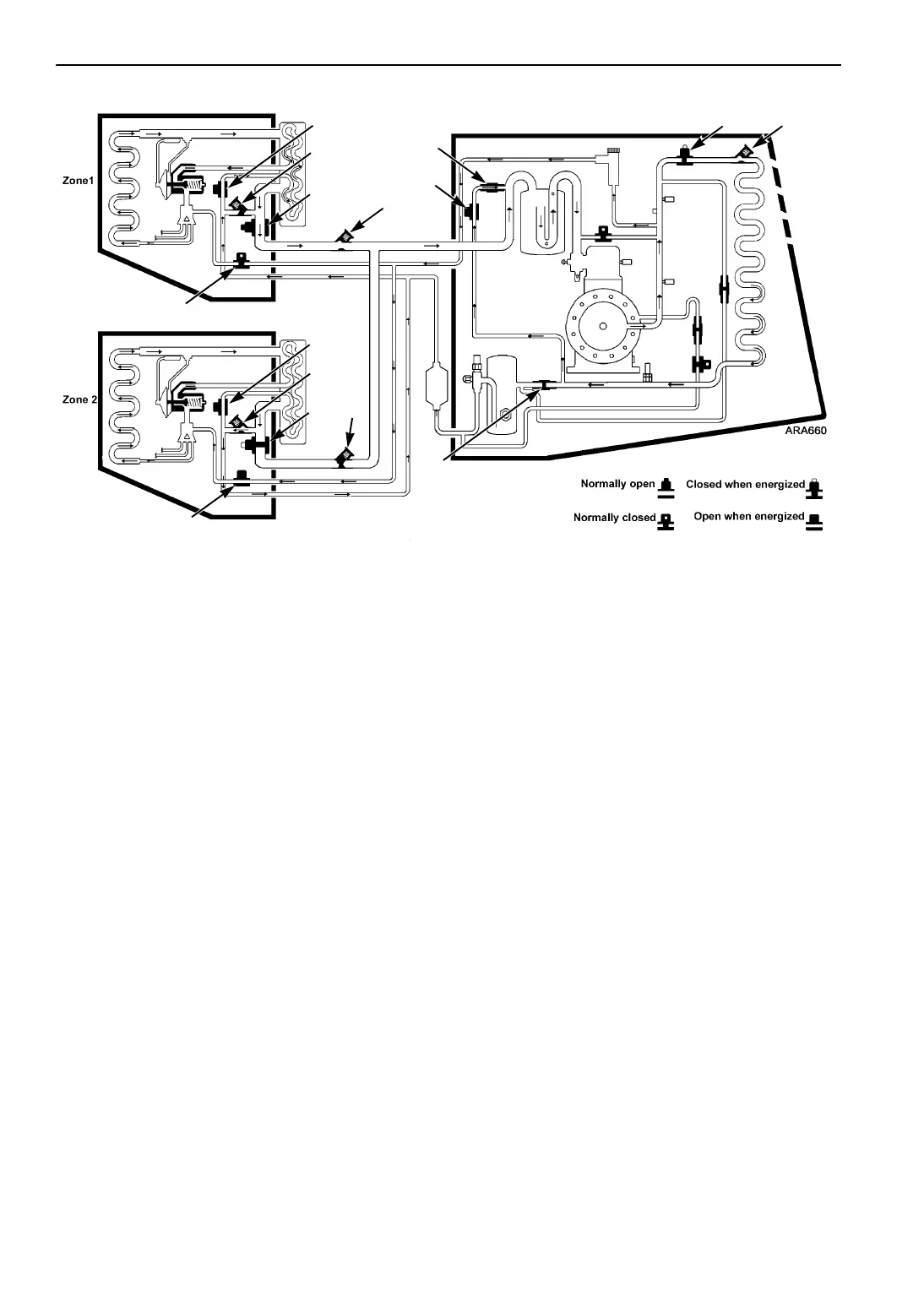

Figure 11: Zone 1 Cool and Zone 2 Heat
Zone 1 Cool and Zone 2 Heat
The CIS is closed so high pressure refrigerant
vapor leaves the compressor and flows through
the DPR to the Zone 2 hot gas line and the open
HGS2 into the Zone 2 evaporator. There, the
refrigerant heats the Zone 2 evaporator and
condenses into high pressure liquid. Because the
SLS2 is closed, the liquid refrigerant flows
through the LRCV2 and the liquid line to the
LLS1.
The LLS1 is open so the refrigerant flows through
the Zone 1 expansion valve into the Zone 1
evaporator. There, the liquid refrigerant cools the
Zone 1 evaporator as it evaporates into low
pressure vapor. The refrigerant returns to the
compressor through the SLS1, Suction Line,
SLCV1 and the accumulator.
In the condensing unit, the CIS valve closes and
opens to regulate head pressure. The purge valve
is opened continuously during heat to drain the
condenser coil.
Zone 1 Evaporator
1F. Zone 1 Liquid Line Solenoid (LLS1)-Open
2F. Zone 1 Liquid Return Check Valve
(LRCV1)-Closed
3F. Zone 1 Suction Line Check Valve
(SLCV1)-Open
4F. Zone 1 Suction Line Solenoid (SLS1)-Open
5F. Zone 1 Hot Gas Solenoid (HGS1)-Closed
Zone 2 Evaporator
1R. Zone 2 Liquid Line Solenoid (LLS2)-Open
2R. Zone 2 Liquid Return Check Valve
(LRCV2)-Open
3R. Zone 2 Suction Line Check Valve
(SLCV2)-Closed
4R. Zone 2 Suction Line Solenoid (SLS2)-Closed
5R. Zone 2 Hot Gas Solenoid (HGS2)-Open
Condensing Unit
6. Condenser Inlet Solenoid (CIS)-Closed/Open
(Pressure Dependent)
7. Condenser Inlet Check Valve
(CICV)-Closed/Open
8. Condenser Check Valve (CCV)-Closed
9. Purge Valve (PV)-Open
10. Purge Check Valve (PCV)-Open
1F
2F
4F
3F
9
6
7
8
3R
5R
4R
2R
1R
5F
10
