SPECTRUM™ TS Operation
63

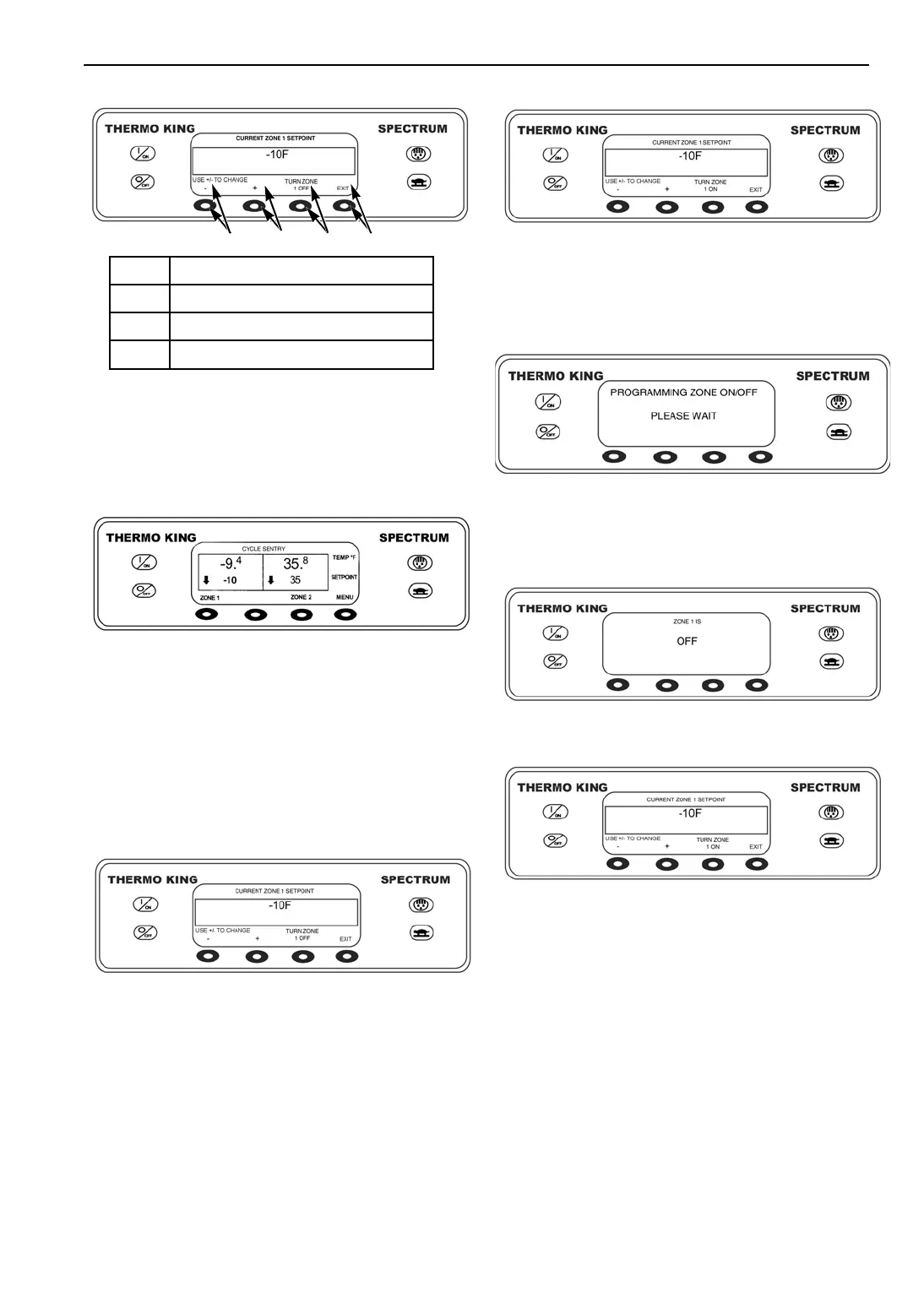

Turning a Zone On and Off
At the Standard Display, press the soft key to
show the Zone Display for the desired zone.
Figure 45: Standard Display
If the zone shown by the Zone Display is
currently turned on the third soft key will be
labeled “TURN ZONE X OFF”, where X is the
zone number. If the zone is currently turned off
the third soft key will be labeled “TURN ZONE X
ON”. Zone 1 is shown on the display below, with
the zone turned on.
Figure 46: Zone 1 On
Pressing the “TURN ZONE 1 OFF” key will turn
Zone 1 Off, and the soft key label will then read
ZONE 1 ON as shown below. Pressing the key
again will turn the zone back on.
Figure 47: Zone 1 Off
When the zone is turned on or off, the display will
briefly indicate that the change is being made as
shown below.
Figure 48: Programming Screen
The display will show the new setting for several
seconds as shown below.
Figure 49: Displays New Setting
Figure 50: Zone 1 On Display
The display then returns to the Zone Display.
Pressing the ZONE 1 ON key will turn the zone
back on.
If no keys are pressed the display will return to the
Standard Display after 30 seconds.
1. “-” Soft Key
2. “+” Soft Key
3. Zone “X” Soft Key
4. EXIT Soft Key
Figure 44: Selecting A Zone
AJA1113
1
2
3
4
AJA1114
AJA1115
AJA1116
AJA1117
AJA1118
AJA1119
