Unit Description

AJA1172

1. Control Box 7. Interface Board

2. Multi-Temp Option Board 8.

SPECTRUM

™

TS Microprocessor

3. Filter Drier 9. Receiver Tank Sight Glass

4. DAS Module (Optional) 10. Main On/Off Switch

5. High Voltage Shield 11. Receiver Tank

6. Power Supply Board

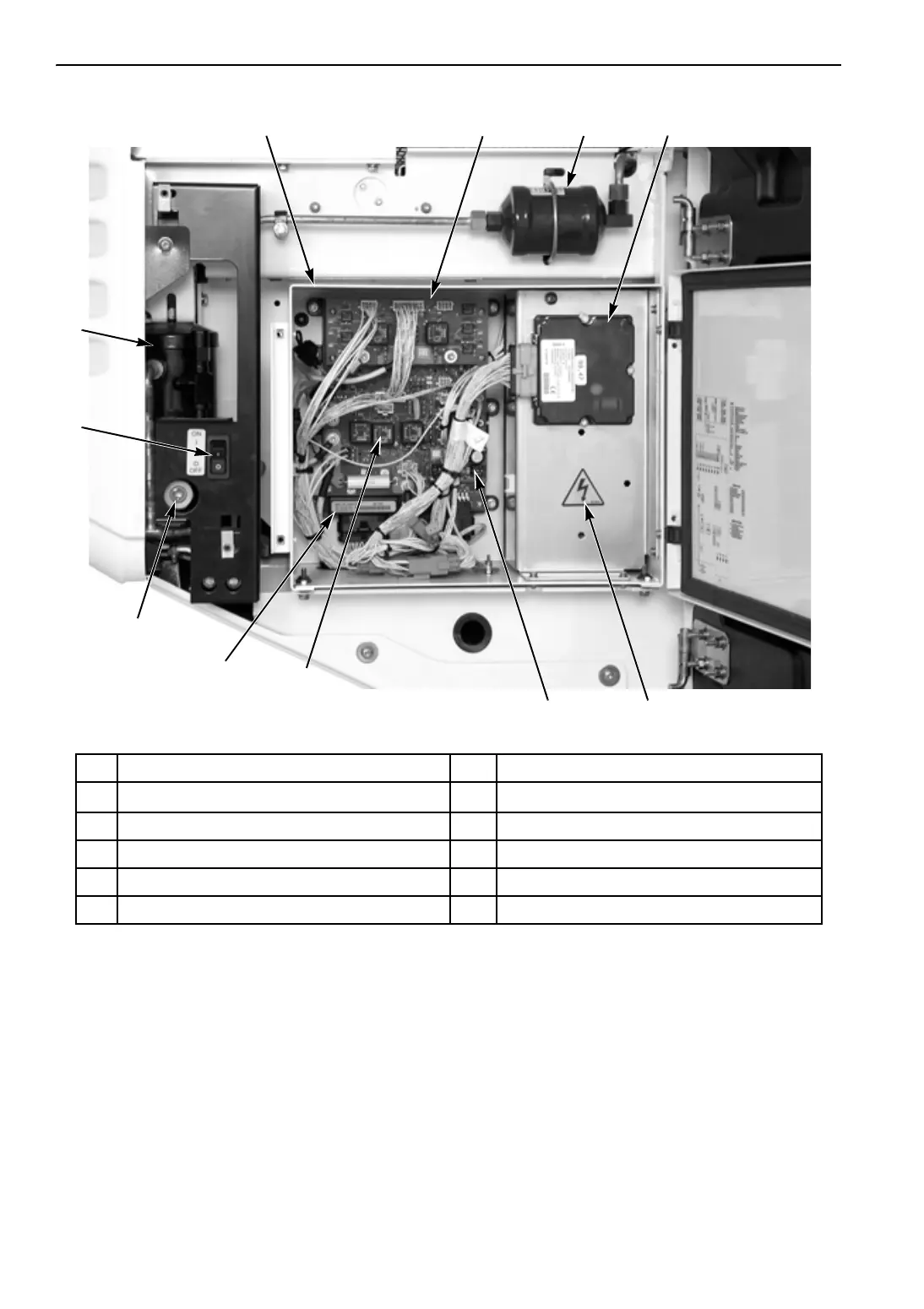

Figure 23: Control Box and Miscellaneous Components
